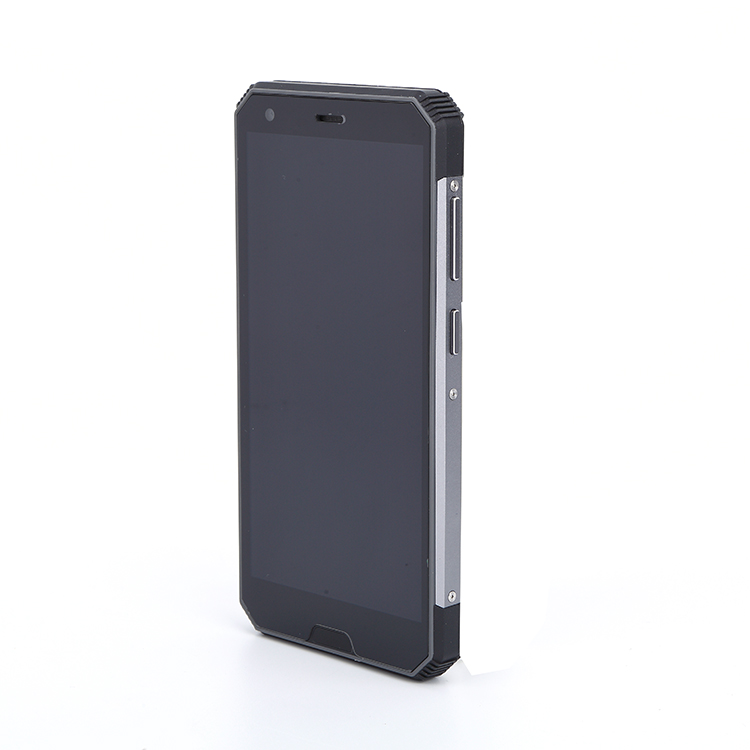

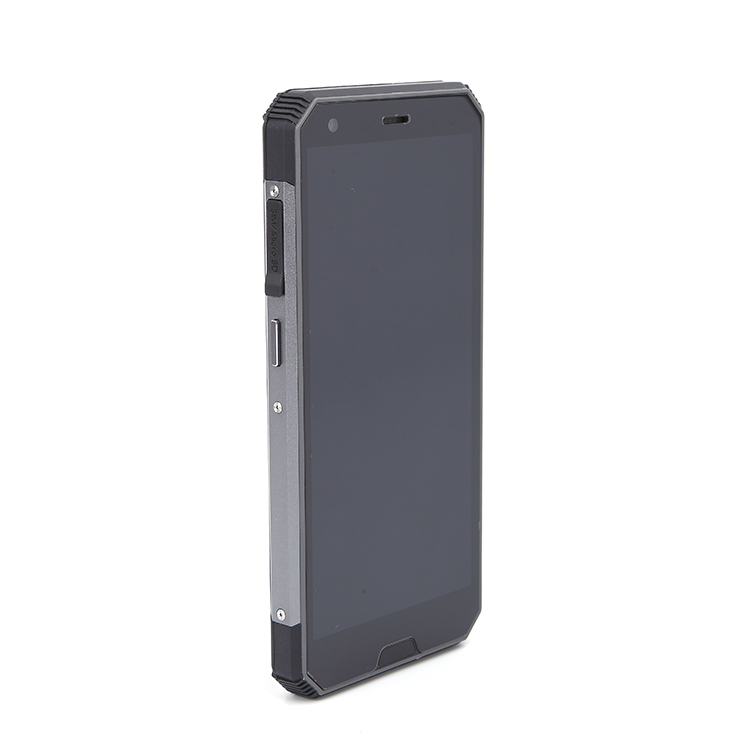

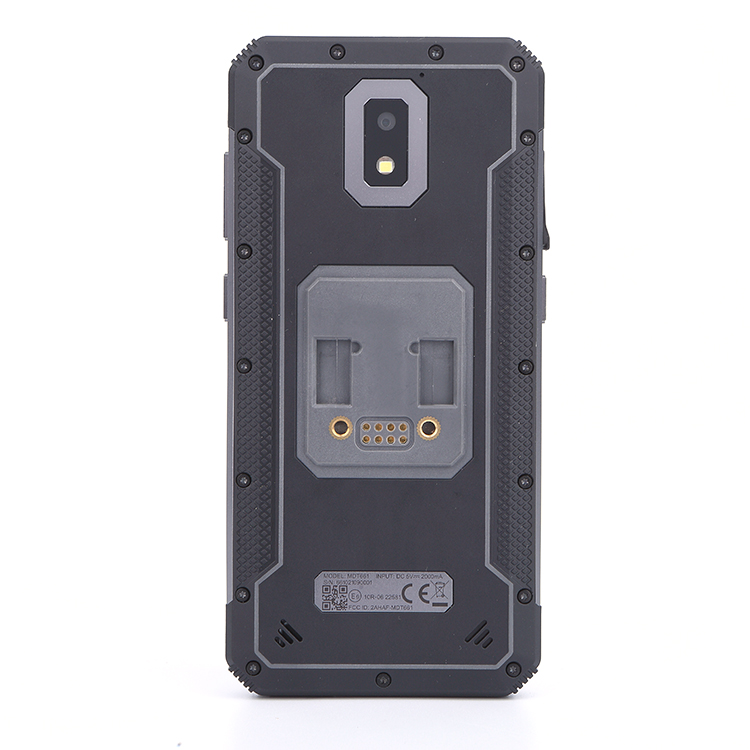

5.72" Rugged Smartphone for Tough Field Work
Model: MDT661
- MDT661 is a full rugged IP67 rated mobile computer data terminal designed for tough field work, such as last mile delivery. The MDT mounted on the motorcycle help field worker on routing, navigation, order management, dispatching, etc.

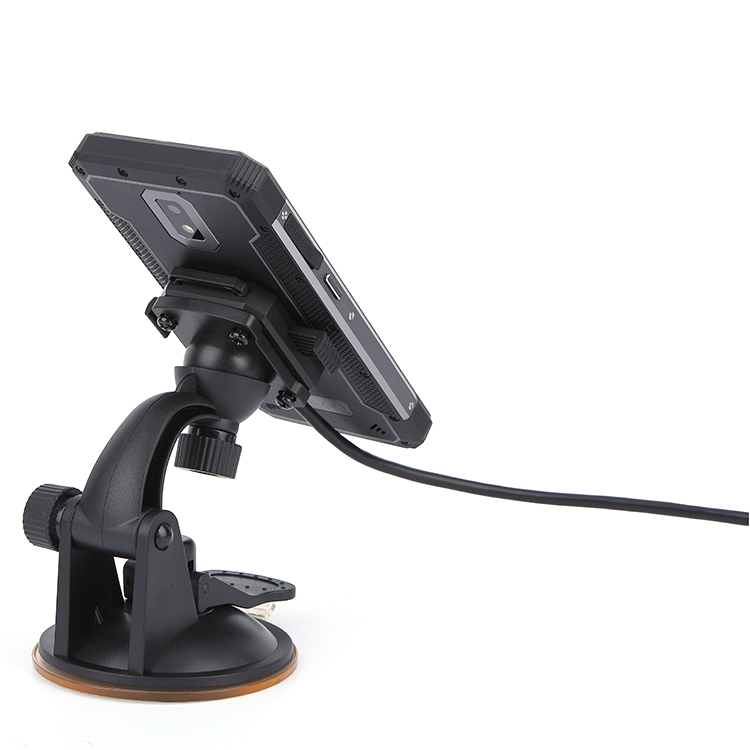

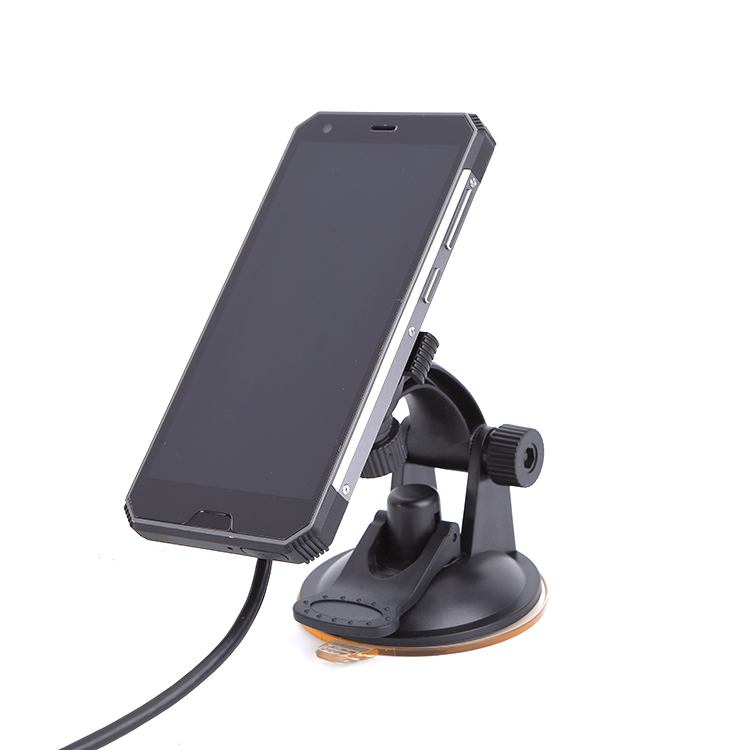

The device equipped 5.72" IPS HD display. With GPS, 2G/3G/4G network, WiFi, Bluetooth, camera, NFC, 4GB DDR RAM, 64GB eMMC flash ROM, dedicated cradle and cable. Support hardware customization.
Support MDM remote control server. Support OTA upgrade, firmware customization, APK integration and debug log.
Hardware
- CPU : MTK platform 2GHz Octa core CPU
- GPS ： Build in MTK GPS module
- Display： 5.72 inch IPS HD + Display, 1440x720 pixels 20:9 HD
- Bluetooth：V2.1 & V4.0
- WLAN： Yes, 802.11 ac/abgn
- Camera (back camera)： Real Dual 16/0.3MP, AF with flash LED
- Camera (front camera)： Samsung 8MP Front camera
- RFID： Yes, default
- G-sensor： Yes, default
- Light sensor： Yes, default
- GYROSCOPE： Yes, default
- Antenna： Internal antenna
- LED indicator： Two-color LED (Red/Green)
- Operating temperature : -10 to 60 degree
- Waterproof : IP67
Software
- Operating system : Android Version 9.0(default) or 11.0
- Android applications： TBD
- Navigation software： TBD
Packaging Details
- Size and weight : 159.6*78.5*11.2mm，274g

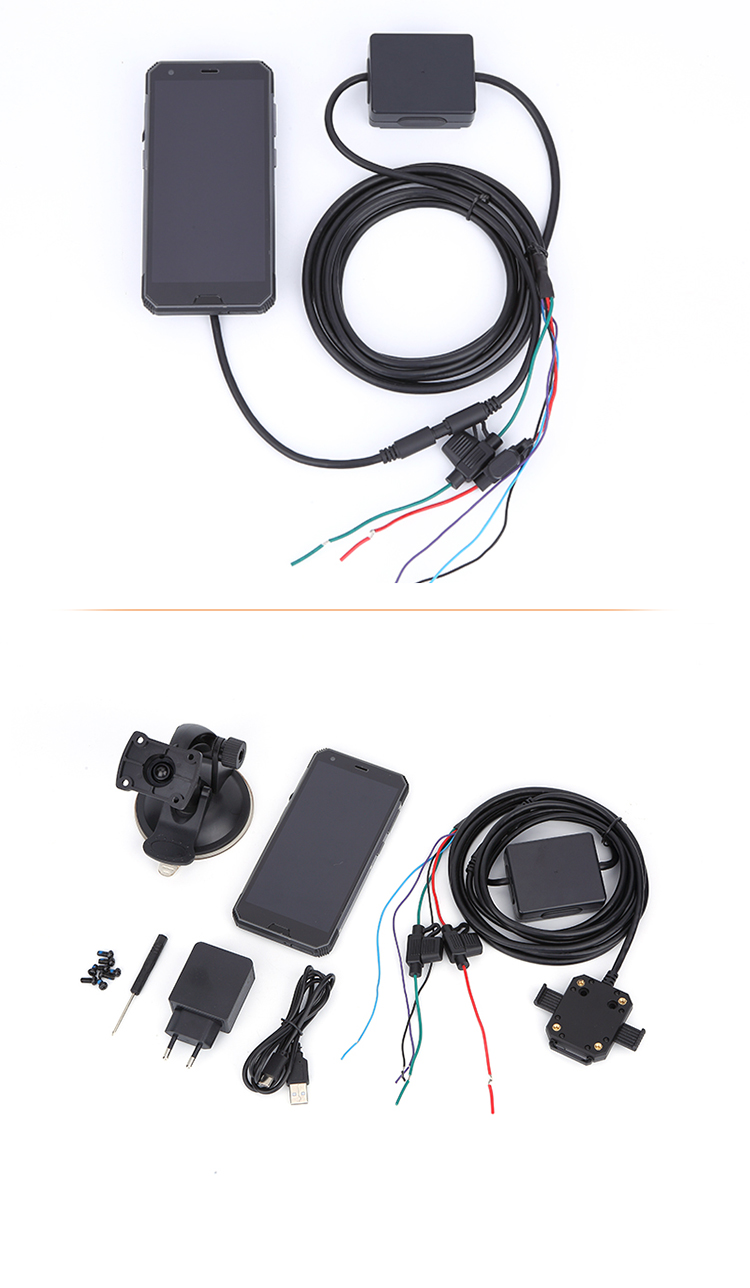

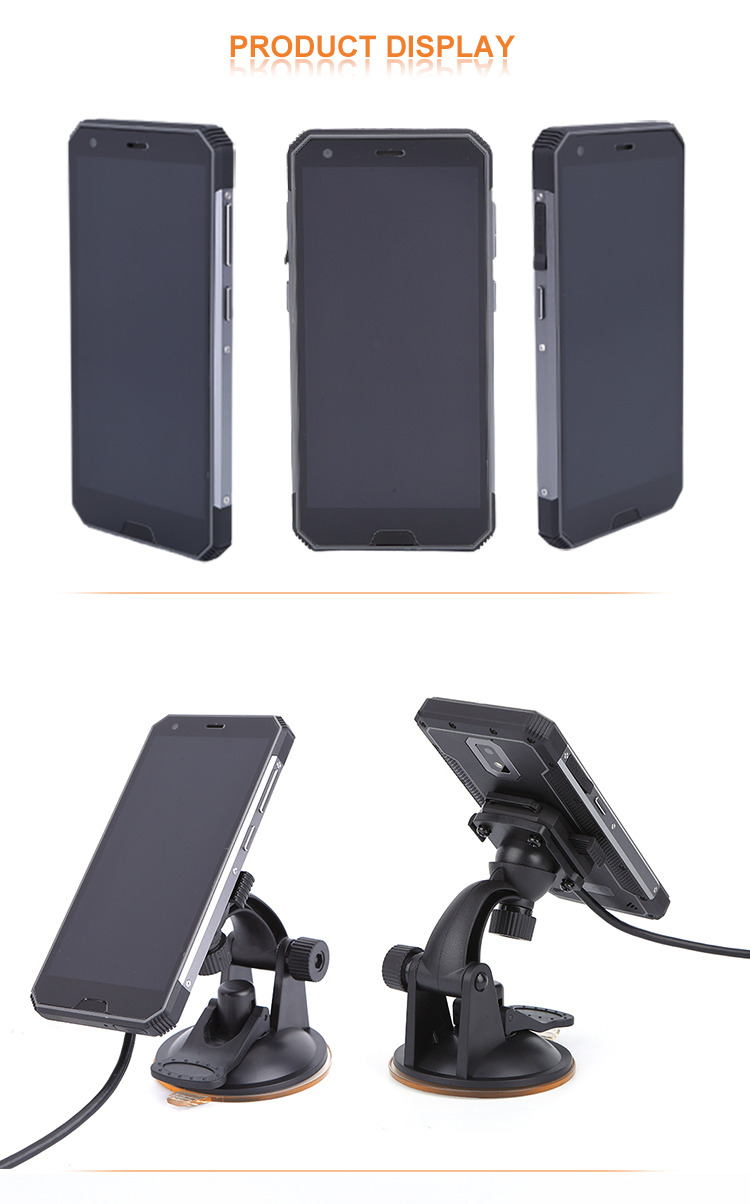

- 1pcs main unit and 1pc cradle
4G module / GPRS module
- 2G-GSM: 850,900,1800,1900
- 3G-WCDMA: B1,B2,B4,B5,B8
- 4G-LTE FDD:B1,B2,B3,B4,B5,B7,B8,B12,B17,B20
- 4G-LTE TDD:B40,B38,B41
Memory
- ROM (SLC/MLC) ：32G eMMC flash
- RAM (DDR)： 4GB
- Extend Slot： MicroSD ( TF ) card
Interface
- USB Connector： USB Type C
- SIM card slot：Yes, nano SIM
Battery
- Capacity： 4000mAh
- Standby： ~3.5 days
- Operating Time: ~5 hours
