5" Compact MDT for Commercial Vehicles
MODEL: MDT540
- The compact MDT terminal designed for commercial vehicles, such as general truck, pickup truck, van, taxicab. Driver can use it for navigation, routing, messaging, make phone call, dispatching, etc.

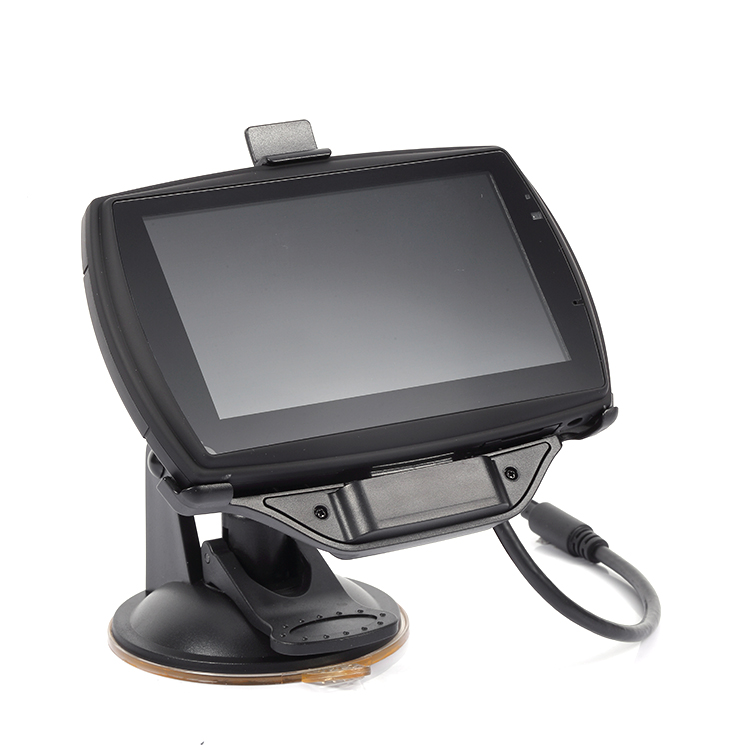

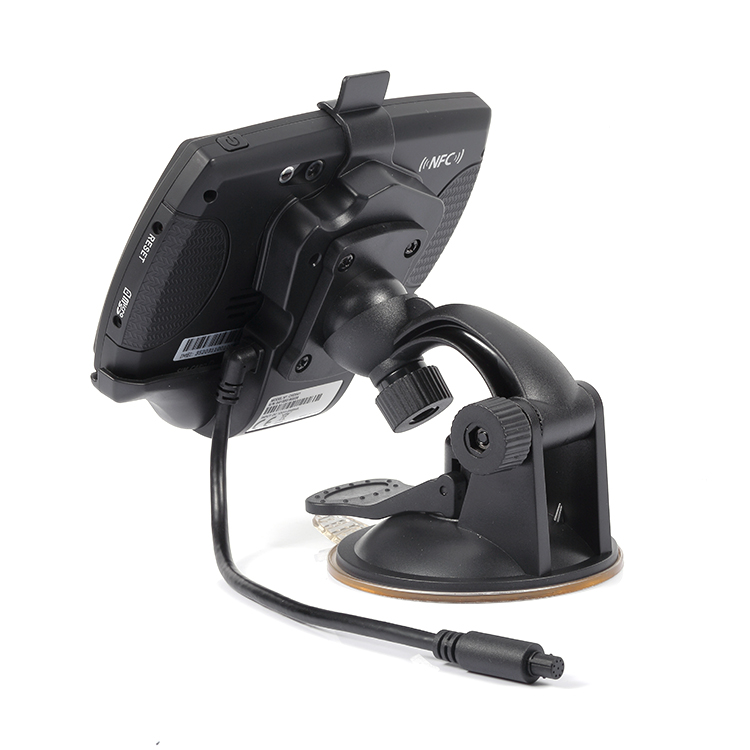

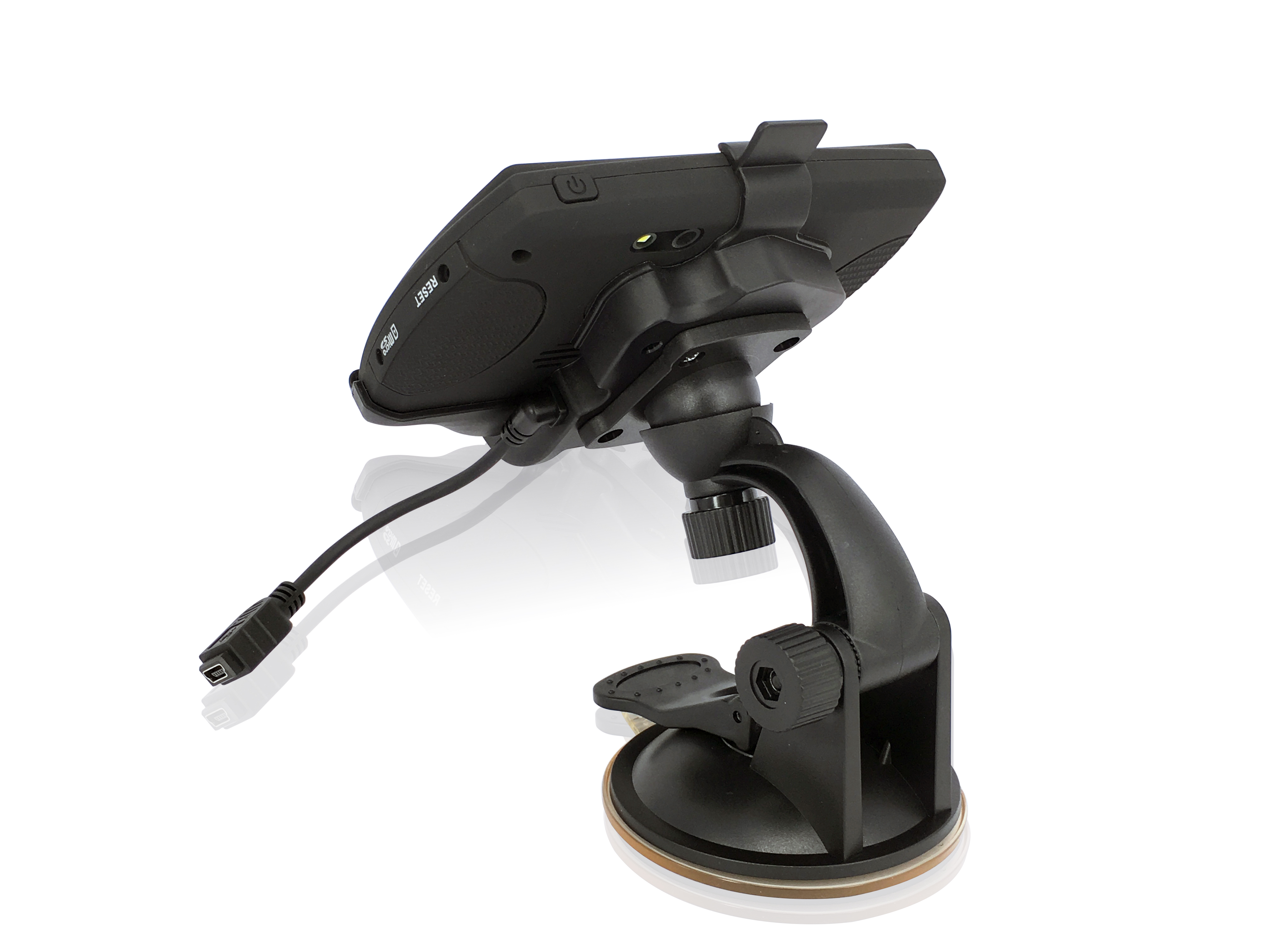

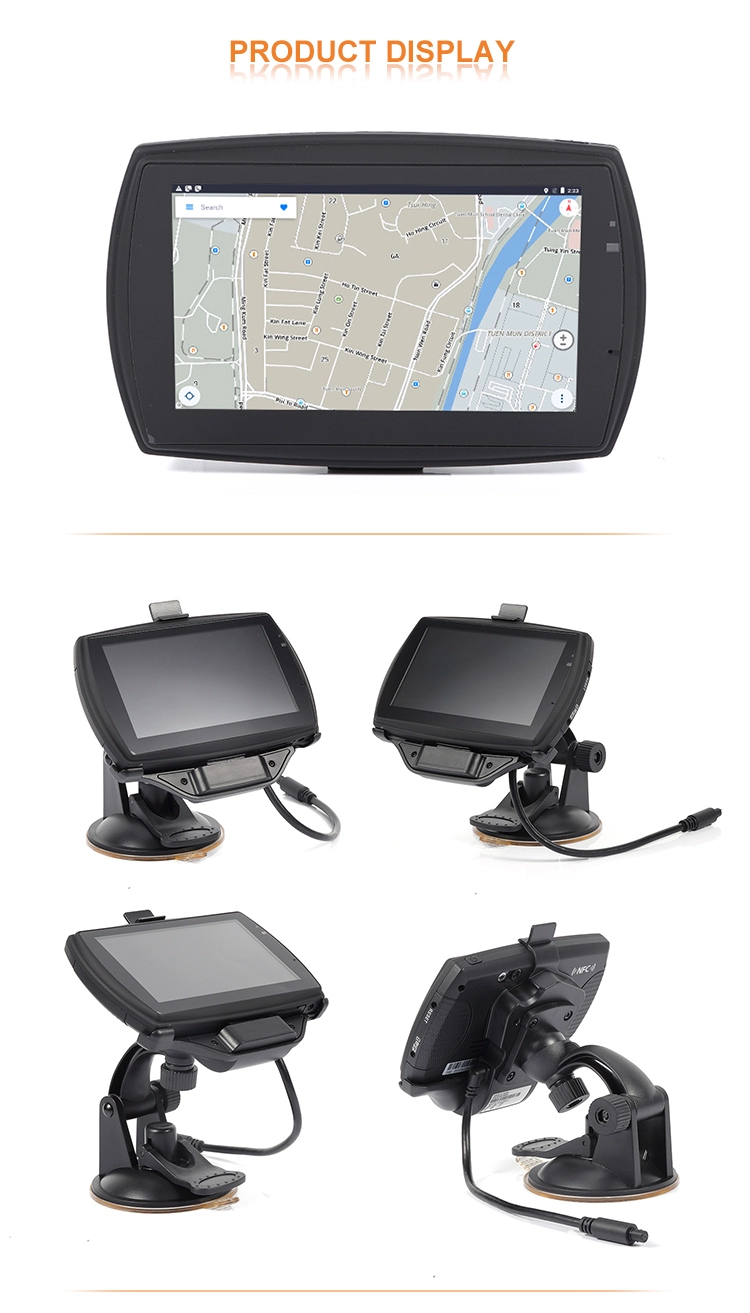

The mobile device equipped with 5" colour TFT touch screen, GPS, WiFi, Bluetooth, camera, cellular network, 32G NAND flash ROM, 2GB DDR3 RAM. With dedicated cradle and cable.
Support customization of logo, splash screen, firmware, MDM remote management, OTA upgrading.
Hardware
- CPU： MTK platform 1.5GHz quad core CPU

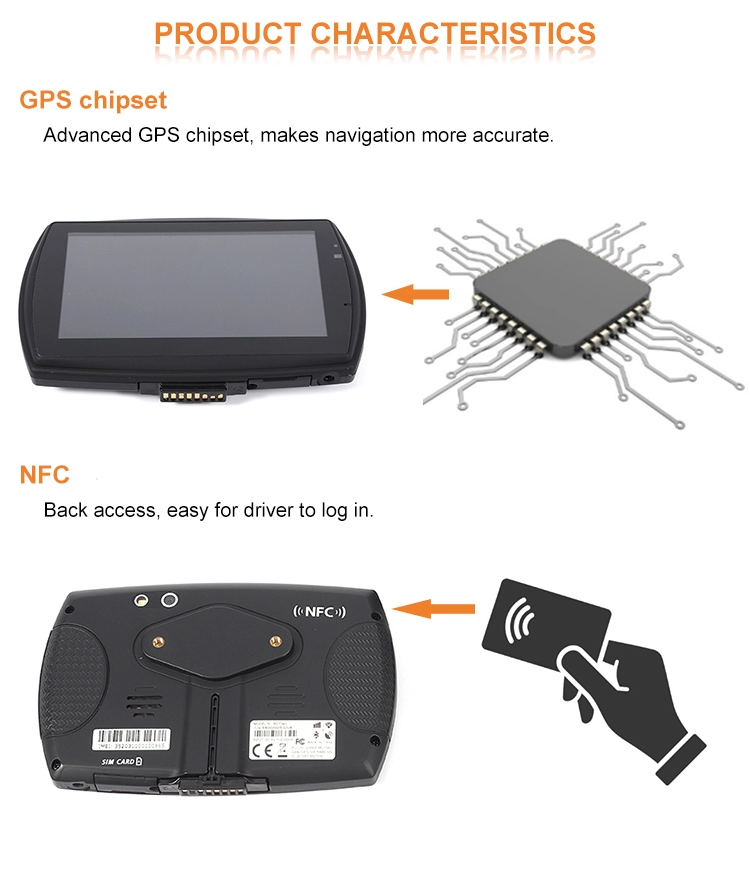

- GPS：high sensitivity receiver, 64 channels
- Bluetooth： V2.1 and V4.0 with data transfer (OPP profile)
- WLAN： Wifi IEEE 802.11 b/g/n
- Camera： 8Mpixel autofocus camera

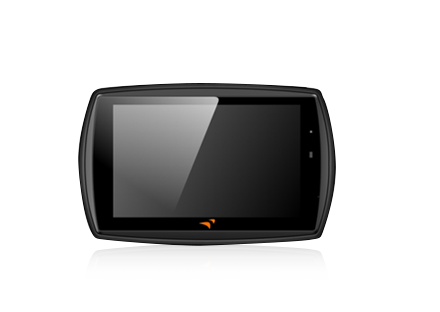

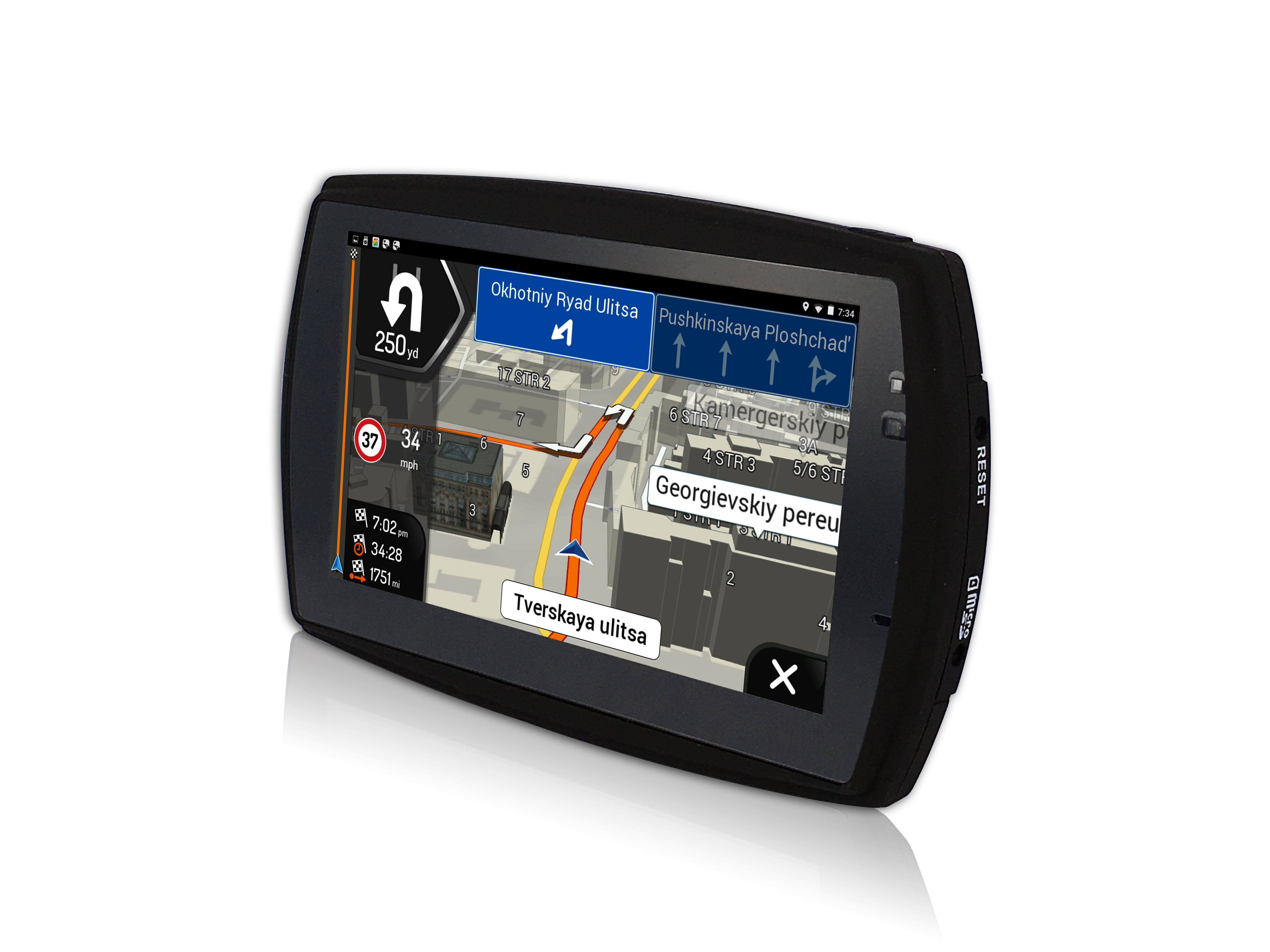

- Display：5“ colour TFT touch screen (800x480, capacitive Touch panel)
- Antenna： Internal antenna
- Connectivity ：USB client for mass storage
- Audio ：Yes, 2,5mm mini headphone jack
- LED indicator：Two-color LED (Red/Green)
Software
- Operating System：Android version 7.0
- Android applications： TBD
- Navigation software： TBD

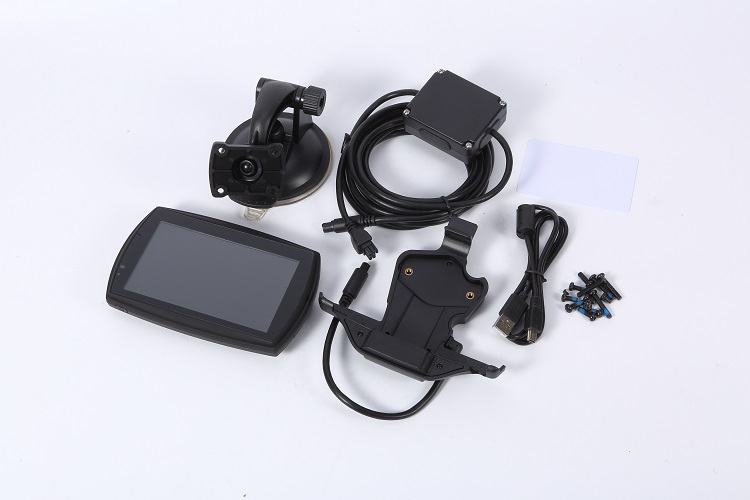

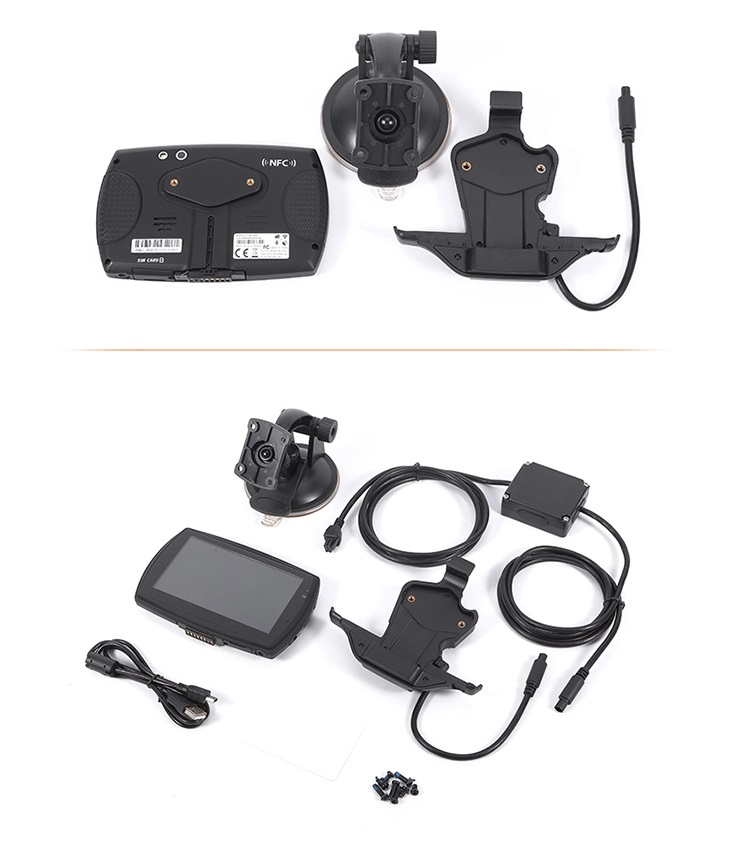

Packaging Details
- 1pc main unit and 1pc cradle
4G module / GPRS module
- 2 version with voice call
- EUR - (Europe market )
- GSM : 900/1800Mhz
- WCDMA – 850/900/2100Mhz
- FDD (4G, EUR) – B1 , B3 , B5, B7, B8, B20
- NAR- (North America market)
- GSM : 850/1900MHz
- WCDMA : 850/1700/1900Mhz
- FDD (4G, NAR) – B2, B4, B5, B12, B17
Memory
- ROM (SLC/MLC) ：32G NAND flash
- RAM (DDR)：2GB DDR3
- Extend Slot： MicroSD ( TF ) card

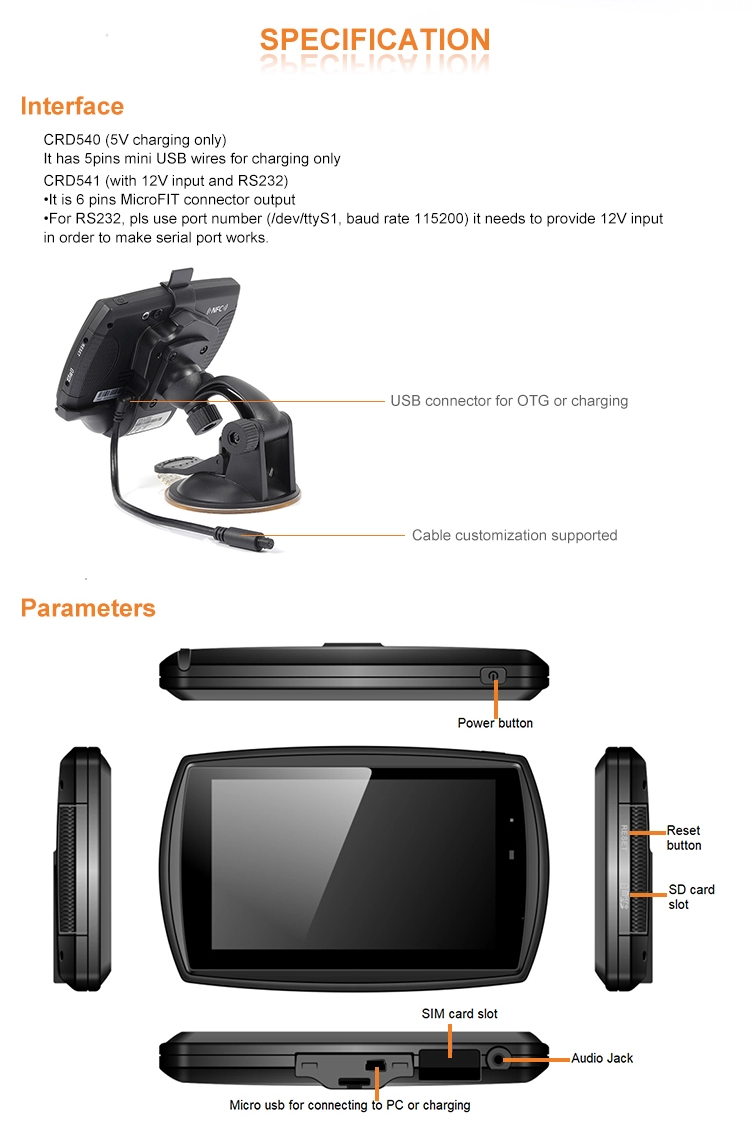

Interface
- Mini USB Connector： USB2.0 connection and power charging
- Audio Jack： Yes

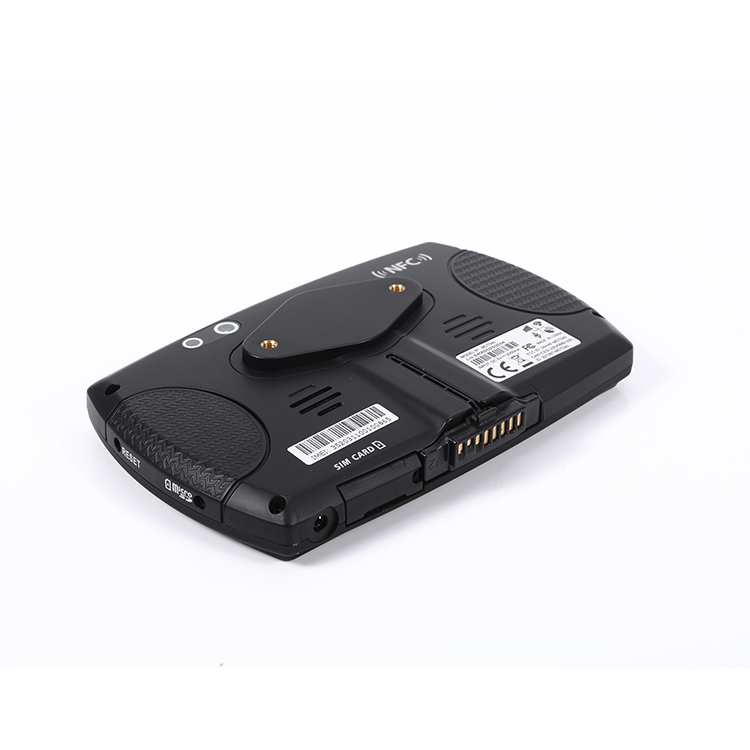

- SIM card slot： Yes
Battery
- Capacity： 2600mAh
- Standby： ~6 days
- Operating Time： ~3 hours
