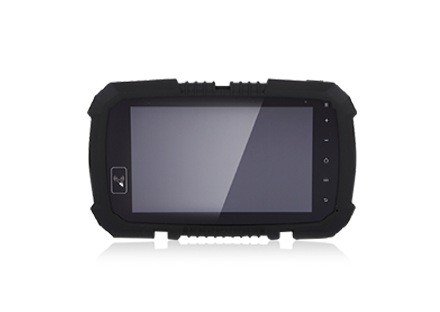

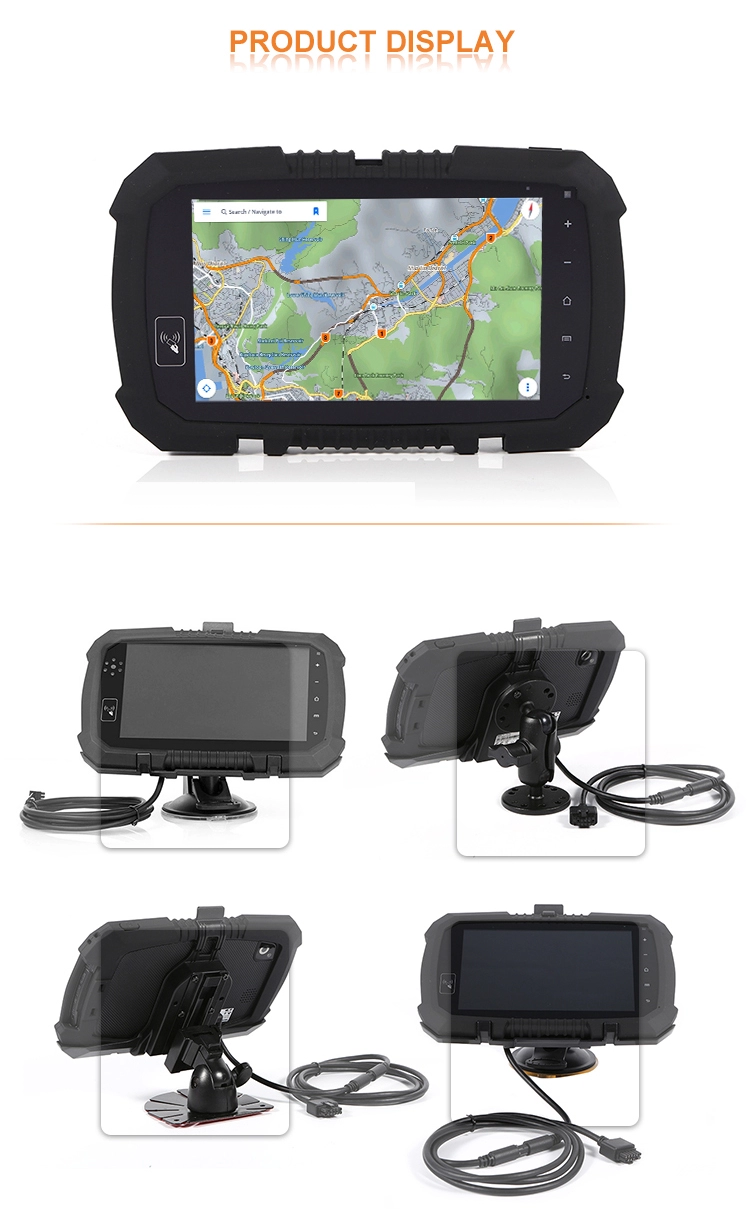

7" High Performance MDT Tablet for Truck Fleet
MODEL: MDT760
- MDT760 is a high-performance MDT tablet with octa core processor for truck fleet management. Driver use it for navigation, routing, dispatching, e-signatures, proof-of-delivery, order management, vehicle maintenance, fuel consumption management, logbook, and fleet operators use it for ELD and electronic work orders, extend digital workflow to mobile vehicles, improving productivity.

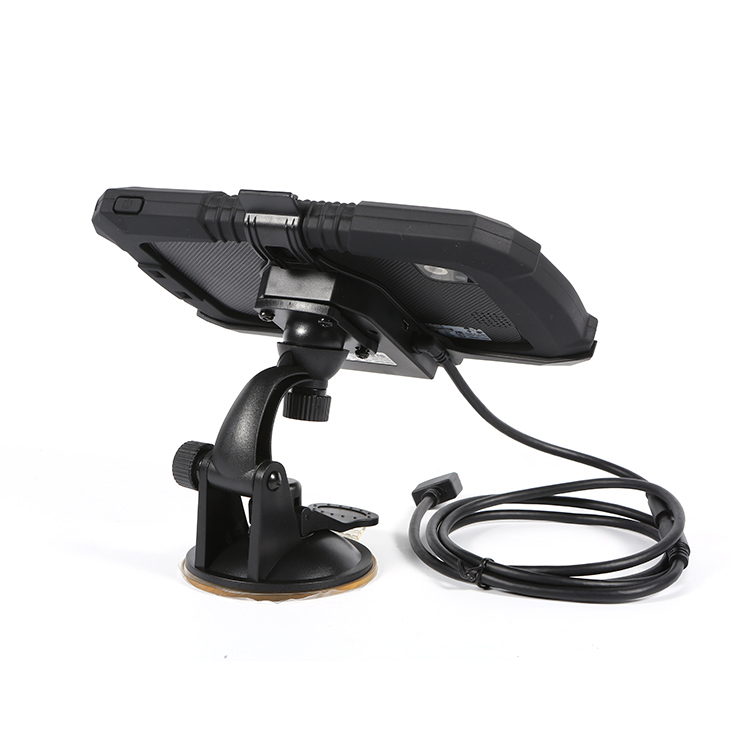

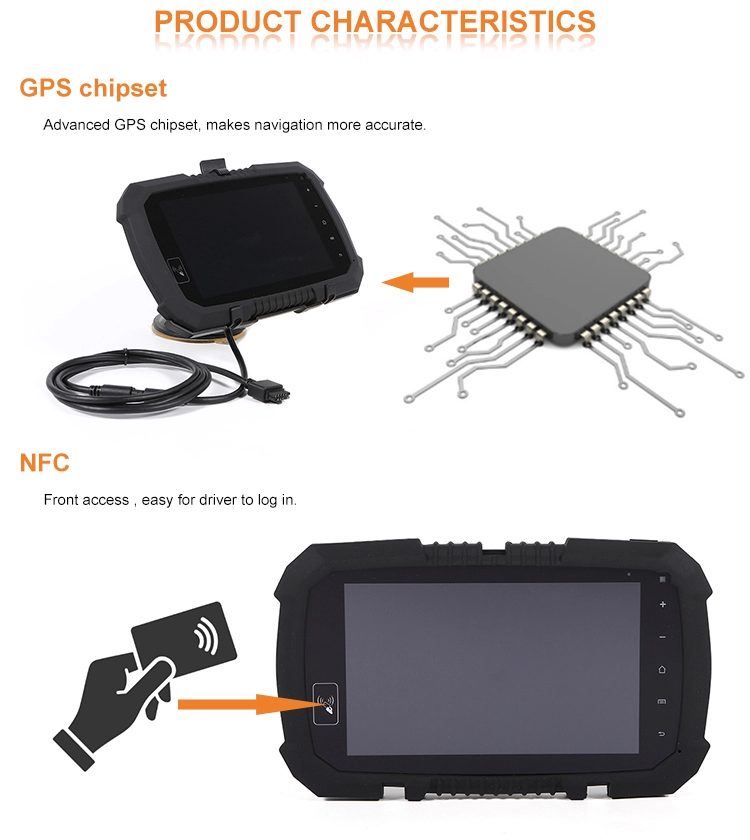

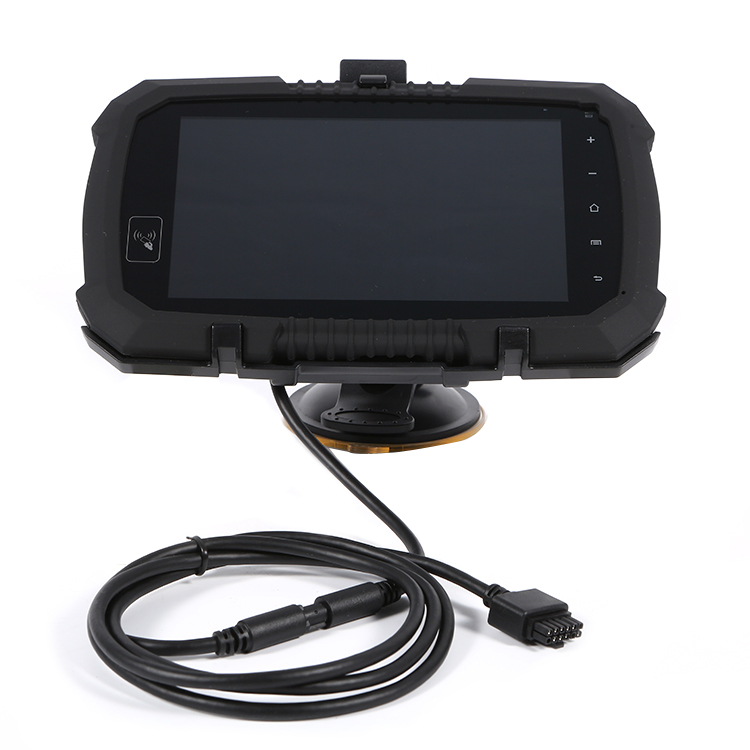

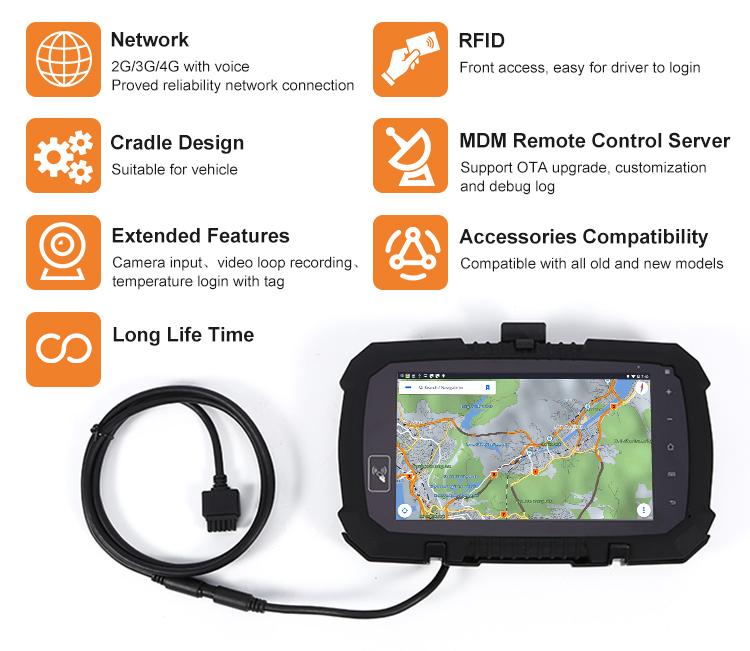

It equipped 7" TFT display, 3G/4G mobile network module, NFC card reader. With option of LoRa and camera system. It supports up to 4×1080p AHD camera input by combine with TOPICON camera hub device, truck driver can use it for real view and side view to ensure the safety. Thanks to the dedicated cradle it supports data interchange with vehicle RS232 interface. Advanced GPS chipset make navigation more accurate.
Support MDM remote control server. Support OTA upgrading, firmware customization, APK integration and debug log.
Hardware
- CPU： MTK platform 2GHz octa core CPU
- GPS ： High sensitivity receiver, 64 channels
- Display： 7“ colour TFT touch screen (1024x600, capacitive Touch panel)
- Bluetooth： V2.1 and V4.0 with data transfer (OPP profile)
- WLAN： Wifi IEEE 802.11 b/g/n
- Camera (back camera)： 16Mpixel autofocus camera and flashlight
- Camera (front camera)： Optional but not default
- Video input: support the channels ADH720P, 1080P and analog
- RFID： Yes, optional
- G-sensor： Yes, default
- Light sensor： Yes, default
- GYROSCOPE： Yes, default
- Wireless module：Optional, Lora module
- Antenna： Internal antenna
- LED indicator： Two-color LED (Red/Green)
Software
- Operating System： Android version 9.0 (default) or 11.0
- Android applications： TBD
- Navigation software： TBD
Packaging Details

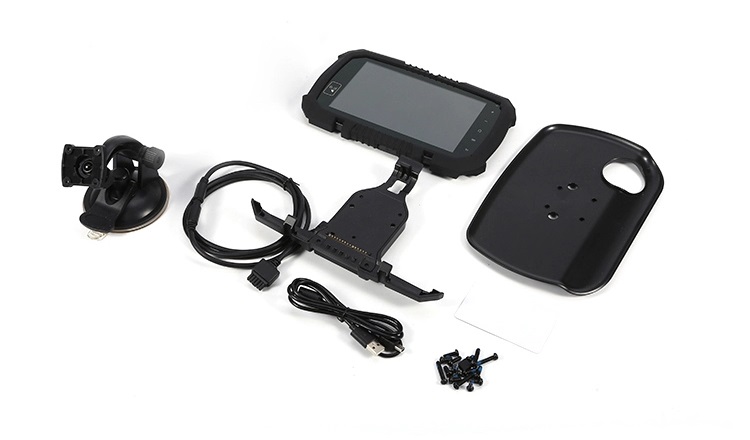

- 1pc main unit and 1pc cradle
4G module / GPRS module
- 2G-GSM: 850,900,1800,1900
- 3G-WCDMA: B1,B2,B4,B5,B8
- 4G-LTE FDD:B1,B2,B3,B4,B5,B7,B8,B12,B17,B20,B28
- 4G-LTE TDD:B40,B38,B41
Memory
- ROM (SLC/MLC) ： 32G NAND flash (dual layout for flash and eMMC)
- RAM (DDR)： 2GB DDR4
- Extend Slot： MicroSD ( TF ) card

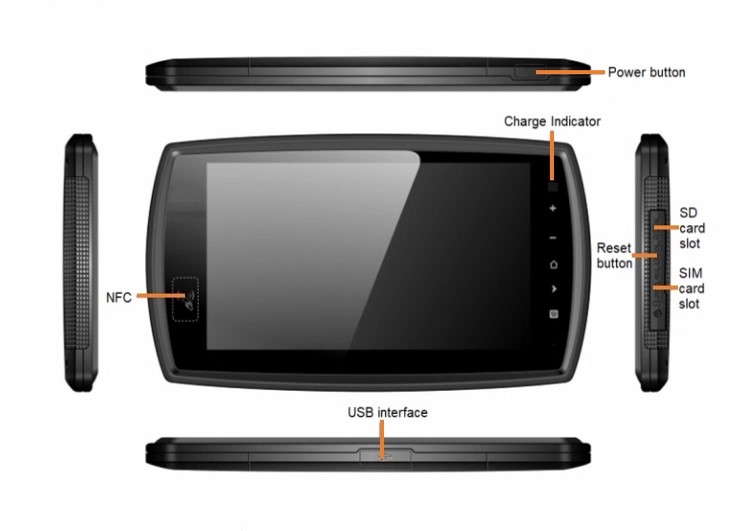

Interface
- Type C USB Connector： USB2.0 connection and power charging

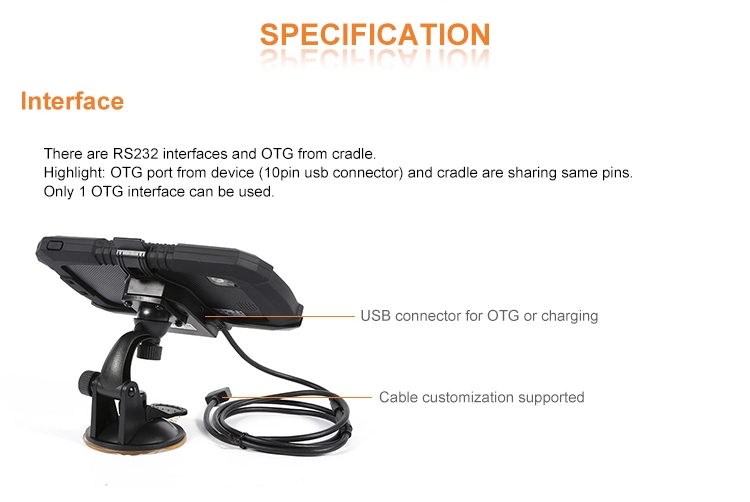

- Pogo pins： Support serial port, USB, 12V input, ignition, eeprom

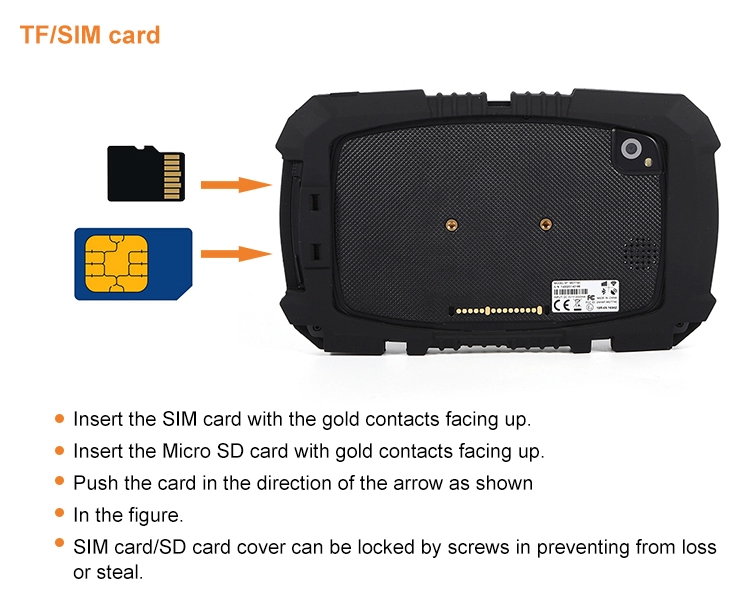

- SIM card slot：Yes
Battery
- Capacity： 4300mAh (Default)
- Standby： ~5 days
- Operating Time：~5 hours
