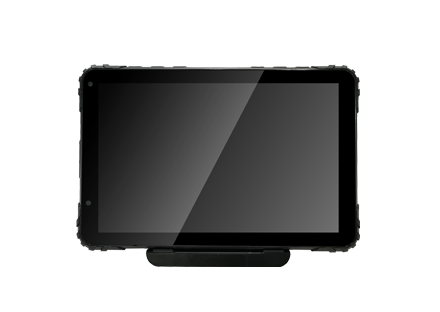

MDT865 8" Android Tablet (PTCRB)
Model: MDT865
- mid-end CPU, octa core 2G CPU from Mediatek Helio G70
4G DDR4 RAM, 64G eMMC
Light and thin
With hand strap for easy carry and as stand
Full features wifi, BT, 4G (dual SIM) , NFC, GPS
video input support analog and AHD camera with PAL/NTSC type
optional module (barcode reader, 433Mhz receiver and etc.)
external GPS antenna

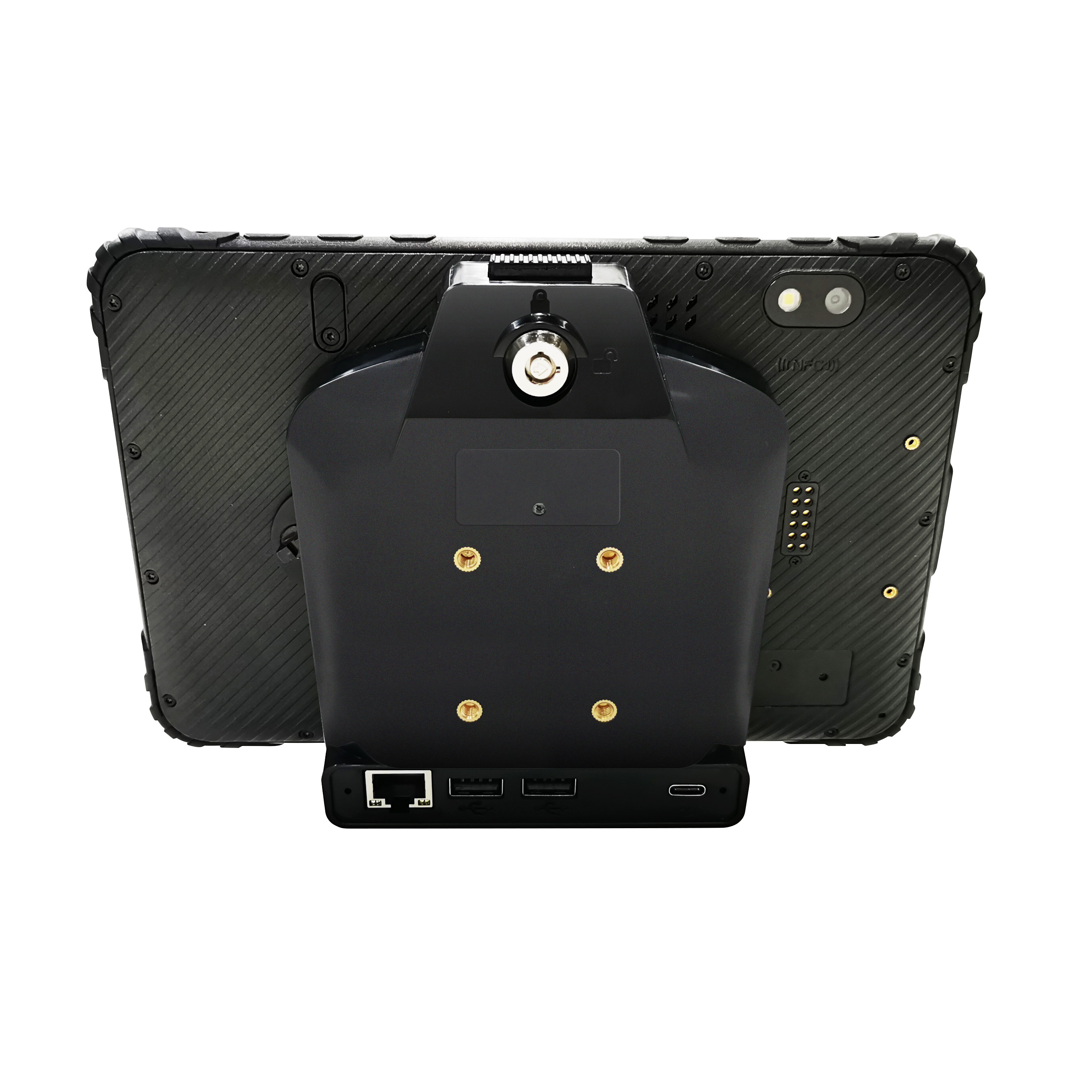

2 into 1 cradle (vehicle cradle or desktop station)
For cradle, there are many interface (Ethernet connection, 2x OTG port, 3x inputs, 3x outputs, 2x RS232, 1x RS485)
device management server which can allow our customer to update firmware and make customization remotely.
Hardware
- CPU： MTK platform 2GHz octa core CPU
- GPS ： High sensitivity receiver, 64 channels
- Display： 8 inch, IPS panel (1280 x 800 pixel)
- Bluetooth： V2.1 and V4.0 with data transfer (OPP profile)
- WLAN： Wifi IEEE 802.11 b/g/n
- Camera (back camera)： 20Mpixel autofocus camera and flashlight
- Camera (front camera)： N/A
- Video input ：Support one channel AHD 720P,1080P and analog
- camera (w/Cradle)
- Support four channels AHD 720P,1080P and analog
- camera (w/Camera Hub)
- RFID： Yes, optional
- G-sensor： Yes, default
- Light sensor： Yes, default
- GYROSCOPE： Yes, default
- Wireless module： Optional, Lora module
- Scanner module: Yes, optional
- Antenna： Internal antenna
- LED indicator： Two-color LED (Red/Green)
Software
- Operating System： Android 12 with GMS or without GMS
- Android applications： TBD
- Navigation software： TBD
Packaging Details
- 1pc main unit and 1pc cradle(Vehicle cradle or desktop dock station), 1pc RAM Mount, 1pc USB cable , 1pcs High power car charger, 1pc NFC card, 1pcs High power home adapter, 1pcs Type C cable for home adapter
4G module / GPRS module
- Radio Frequency
- GSM: 850/900/1800/1900MHz
- WCDMA: B1/B2/B4/B5/B8
- LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28
- LTD TDD: B38/B40/B41
Memory
- ROM (SLC/MLC) ： 32G NAND flash (dual layout for flash and eMMC)
- RAM (DDR)： 4GB DDR4
- Extend Slot： MicroSD ( TF ) card
Interface
- Type C USB Connector： USB2.0 connection and power charging
- Pago pins： Support serial port, USB, 12V/24V input, ignition, eeprom
- SIM card slot：Yes two nano SIM
Battery
- Capacity： 8000mAh replaceable
