Industrial Grade Thermal Visual Camera
MODEL: TSD272
- TSD272 Thermal Visual Camera is industrial grade a temperature measuring instrument with the thermal imaging, equipped with high resolution thermal sensor, can quickly and accurately measure the surface temperature of objects.

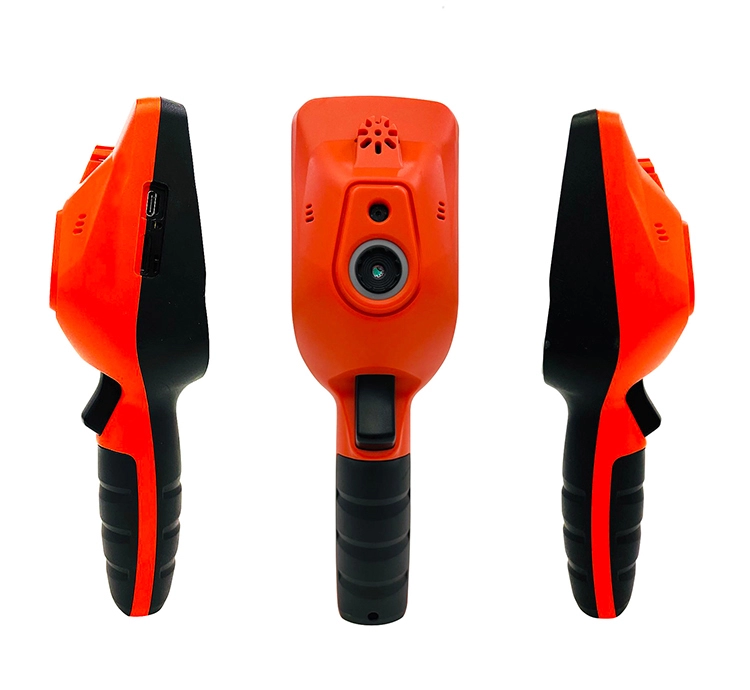

The handheld thermal camera is designed based on ergonomics. It is most suitable for handheld for a long period of time. And, it can also be fixed on the tripod for continuous monitor function.

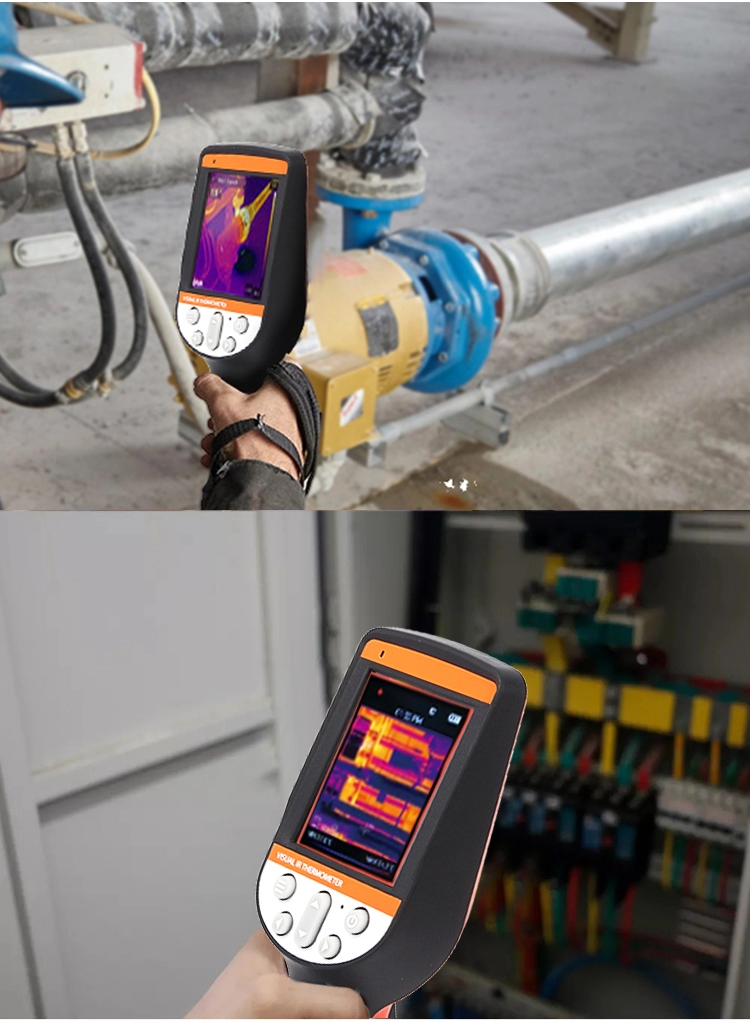

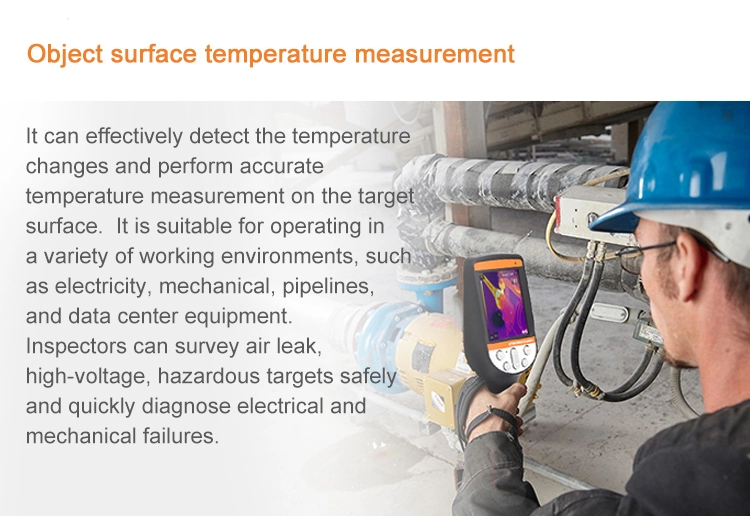

It is suitable for operating in a variety of workplace, such as electricity, mechanical, pipelines, data center equipment, and more industrial applications.
Hardware
- Power Supply: 3.7V Li-ion rechargeable battery, 2500 mAh, Size 18650
- Panel: 2.8" Color LCD display
- Touch Panel: Resistive type Touch panel

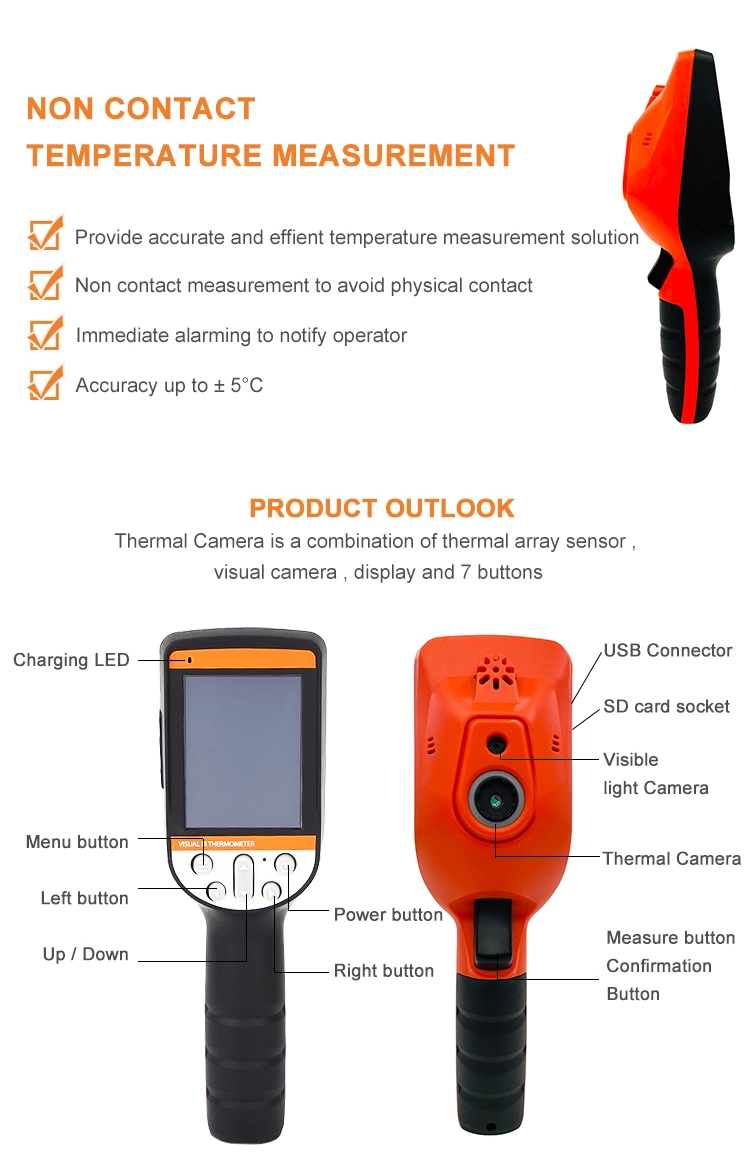

- Keys: 7 keys ( Power, Up/Down/Left/Right, Menu, Measure)

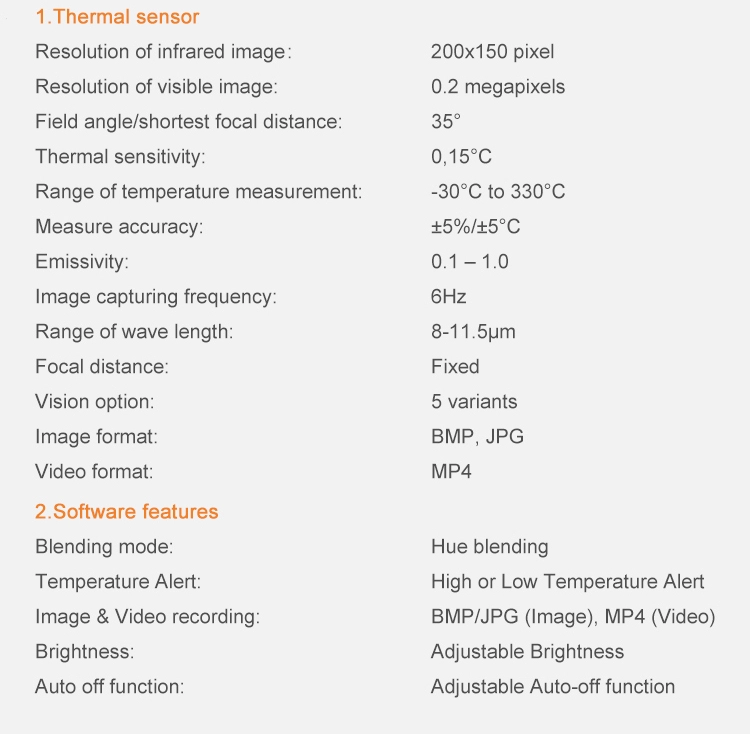

- Sensors: 200 x 150 Thermal Array, Humidity Sensor, CMOS sensor
Software
- Blending mode: Hue blending
- Temperature Alert: Hight or low Temperature Alert
- Image & Video recording: BMP/JPG (Image), MP4 (Video)
- Brightness：Adjustable Brightness
- Auto off function: Adjustable Auto-off function
Packaging Details

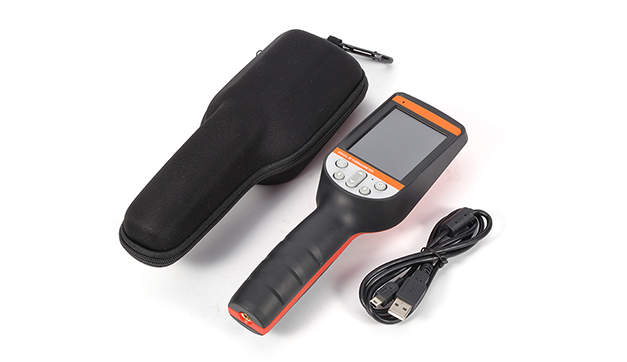

- One unit and one USB cable
4G module / GPRS module
- N/A
Memory
- Internal memory: ROM 4G NAND flash, RAM 1G DDR4
- External memory ( Micro SD slot): up to 64 GB
Interface
- USB connection: Photo upload to PC, and USB charging battery
Battery
- Battery life : 6hrs
- Auto power-off time : Adjustable 0-30min / never
