AHD200MP-RV1B
AHD200MP-RV1B
AHD200MP-RV1B

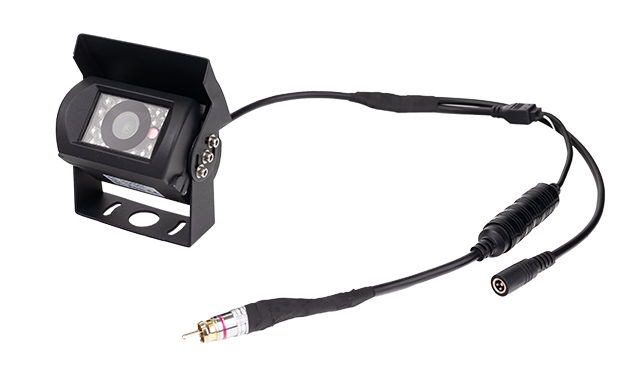

This is a high quality AHD (Analog High Definition ) Color camera, using the latest CMOS technology, the camera can produce high definition image with little distortion.

Analog High Definition is a high video definition standard, through the coaxial cable, using the analog modulation technology to transfer progressive-scan HD Video signal.

AHD system is same as traditional analog system , using common 75-3 coaxial cable to carry out as far as 500 meters HD video without any video signal loss.
Test it yourself

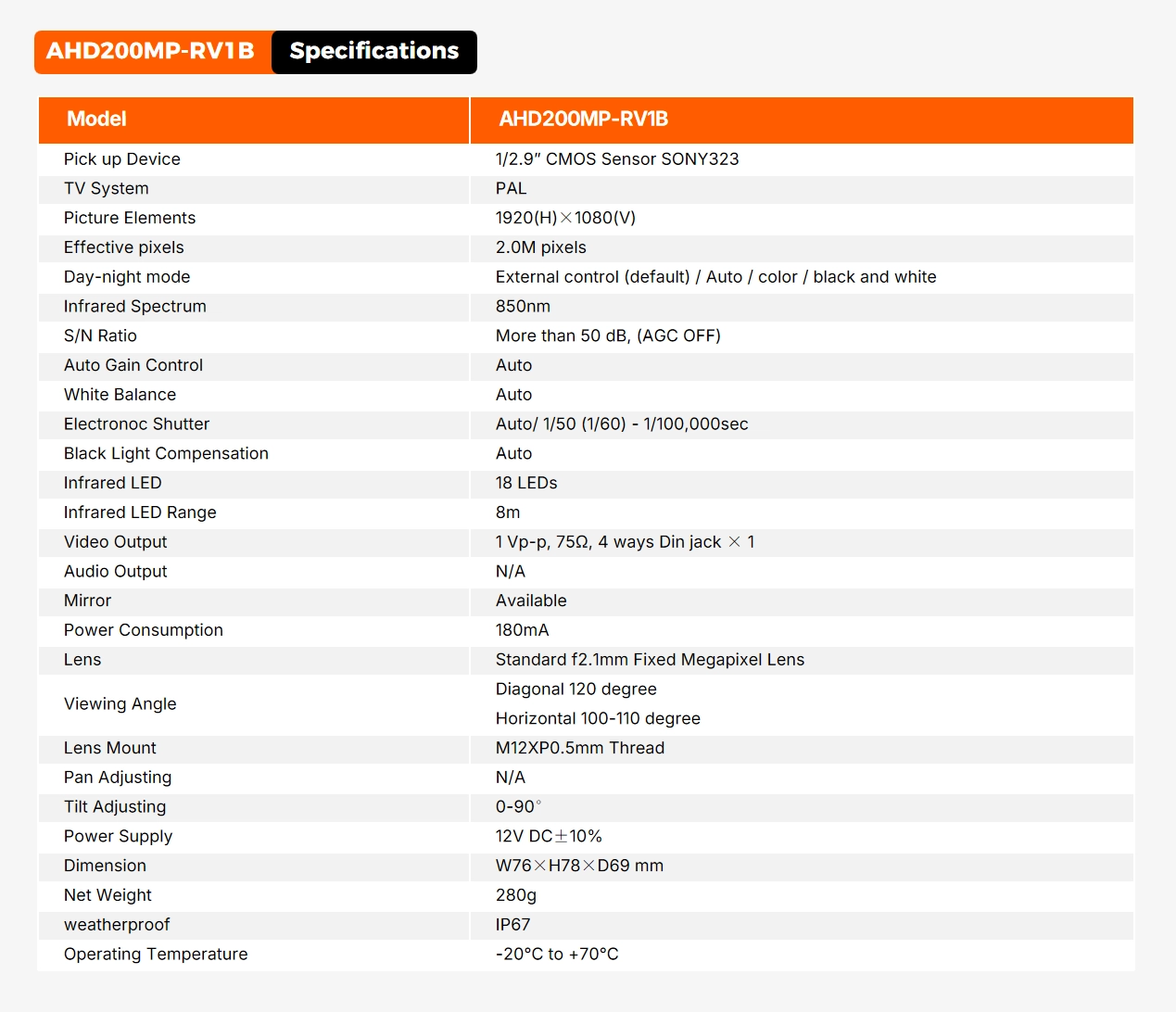

AHD200MP-RV1B Specifications

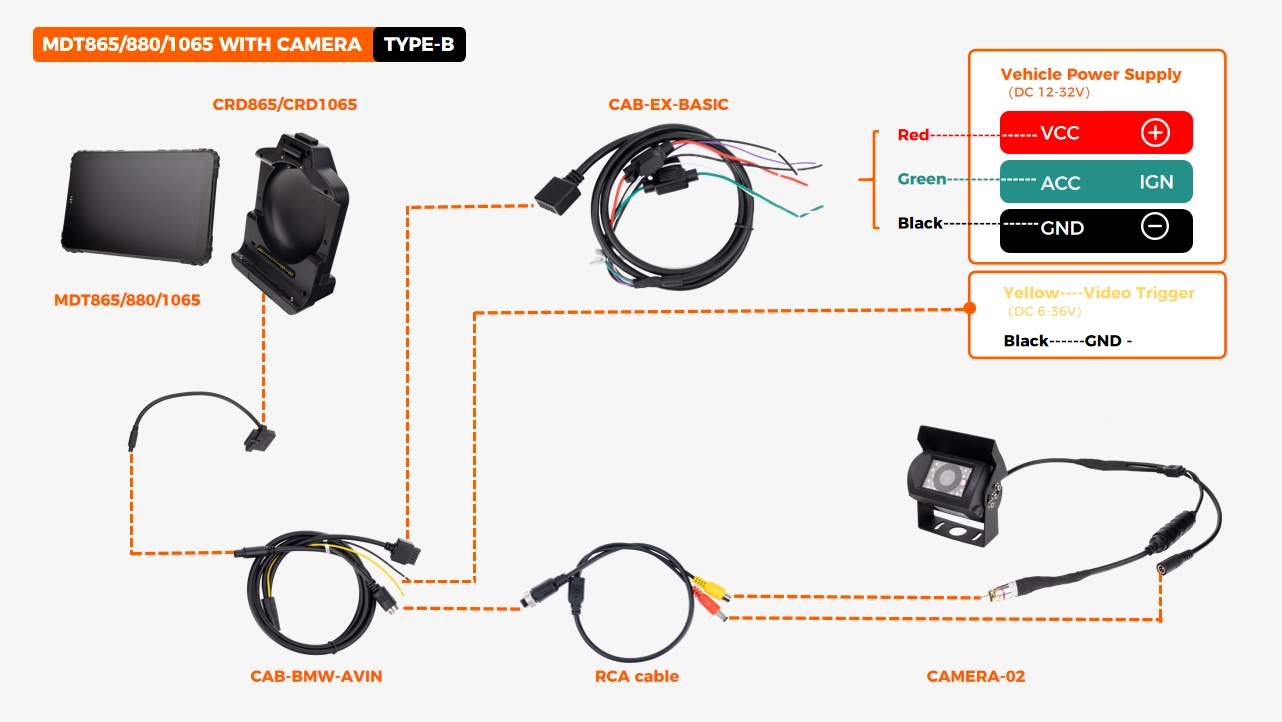

Wiring examples shown — not all configurations. Options may vary by model or production batch. For the latest specs or custom integration support, please contact our engineering team.

Product Video
