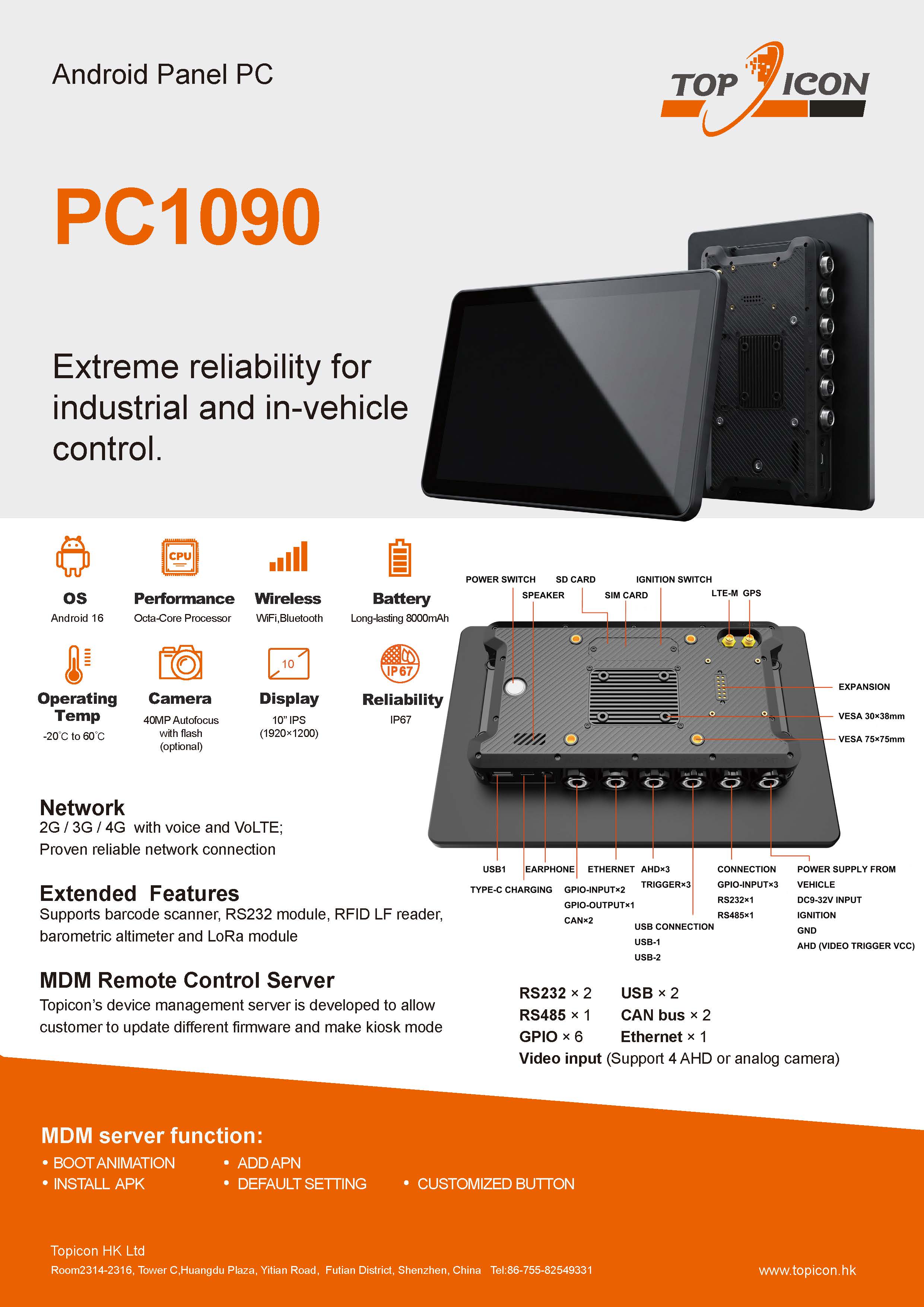

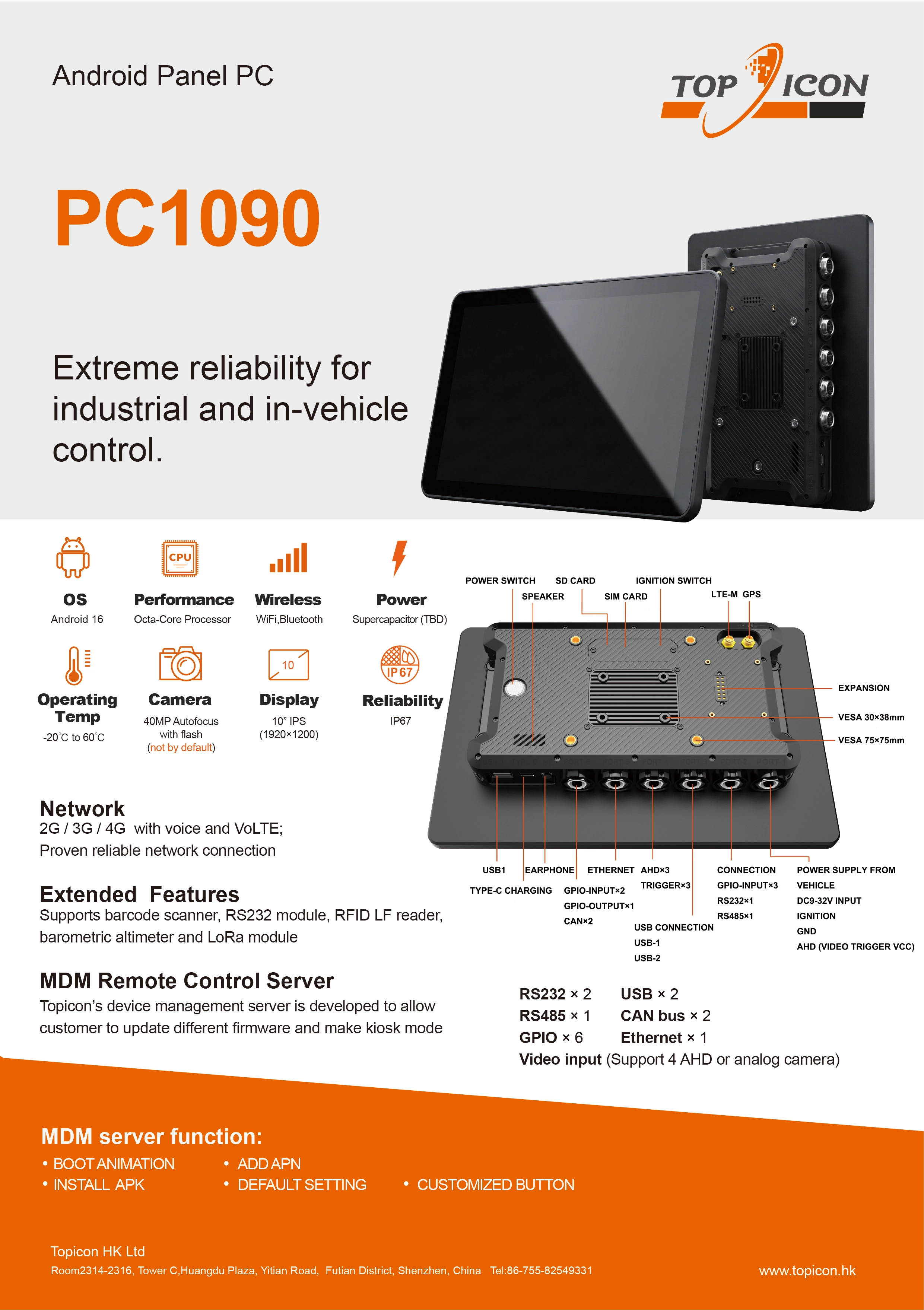

PC1090
10" Android Panel PC
High-Efficiency 10-inch Android Panel PC with IP67 Ruggedness, Dual CAN Bus & M9 Aviation Connectors for Industrial Telematics.
The Topicon PC1090 is the ultimate heavy-duty 10-inch Android Panel PC engineered for extreme reliability in industrial and in-vehicle control. Running Android 16 with a high-performance 8GB LPDDR5X and 128GB UFS2.2 octa-core platform, it packs a long-lasting 8000mAh battery and a crisp 10-inch IPS (1920×1200) anti-glare multi-touch display. Built to survive harsh environments with an IP67 rating, it features 6× M9 waterproof aviation connectors natively supporting dual CAN Bus, dual RS232, RS485, 100Mbps Ethernet, and a 4-channel AHD camera hub. Integrating L1+L5 dual-band GNSS alongside robust MDM remote management capabilities, the PC1090 sets the benchmark for mining, precision agriculture, and heavy machinery automation.
(Currently in development. Pre-orders for prototype testing and early-bird project bidding are now officially open.)
The Topicon PC1090 is the ultimate heavy-duty 10-inch Android Panel PC engineered for extreme reliability in industrial and in-vehicle control. Running Android 16 with a high-performance 8GB LPDDR5X and 128GB UFS2.2 octa-core platform, it packs a long-lasting 8000mAh battery and a crisp 10-inch IPS (1920×1200) anti-glare multi-touch display. Built to survive harsh environments with an IP67 rating, it features 6× M9 waterproof aviation connectors natively supporting dual CAN Bus, dual RS232, RS485, 100Mbps Ethernet, and a 4-channel AHD camera hub. Integrating L1+L5 dual-band GNSS alongside robust MDM remote management capabilities, the PC1090 sets the benchmark for mining, precision agriculture, and heavy machinery automation.
(Currently in development. Pre-orders for prototype testing and early-bird project bidding are now officially open.)

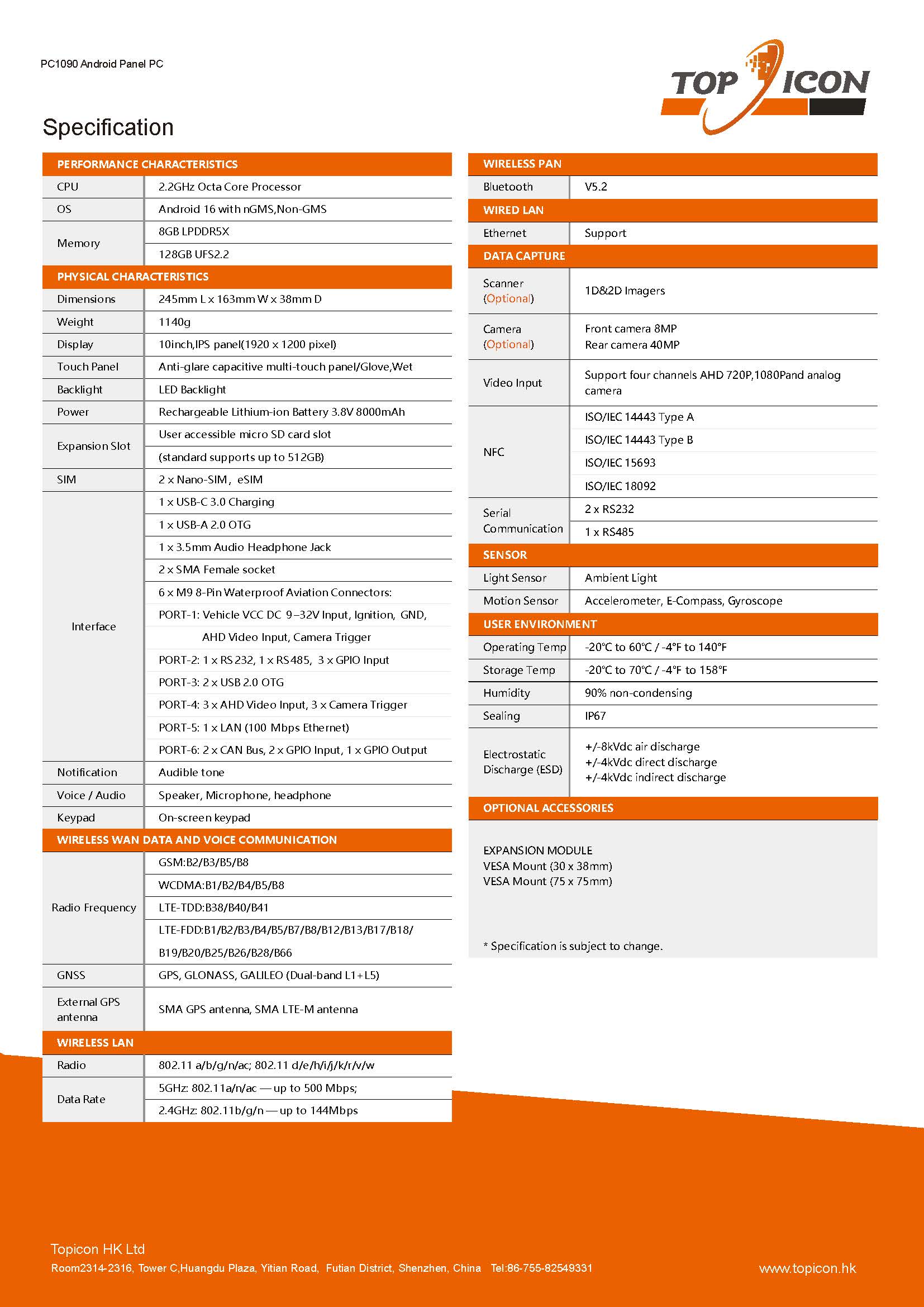

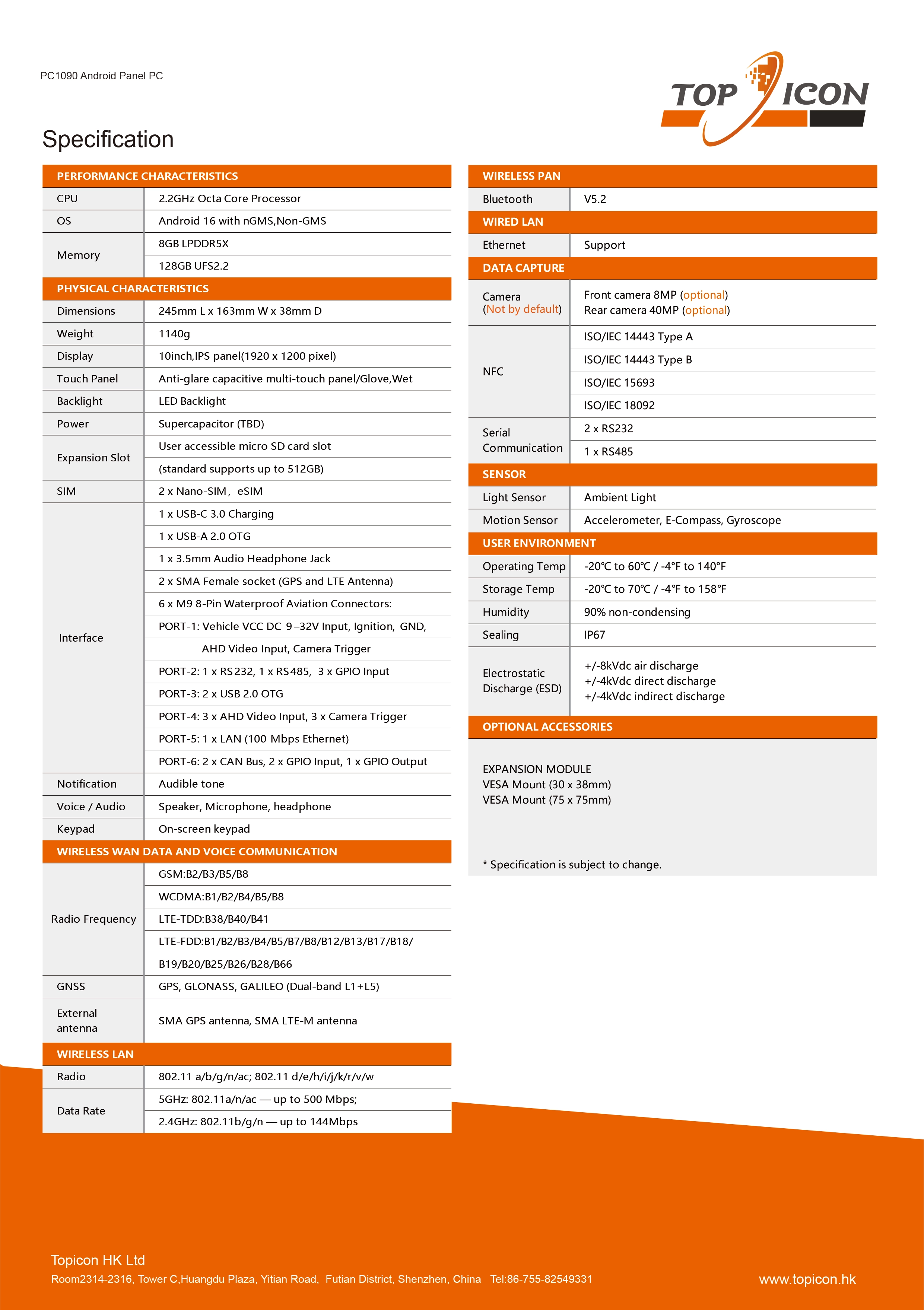

Hardware
Software
Packaging Detail
Cellular Module
Memory
Interface
Battery
