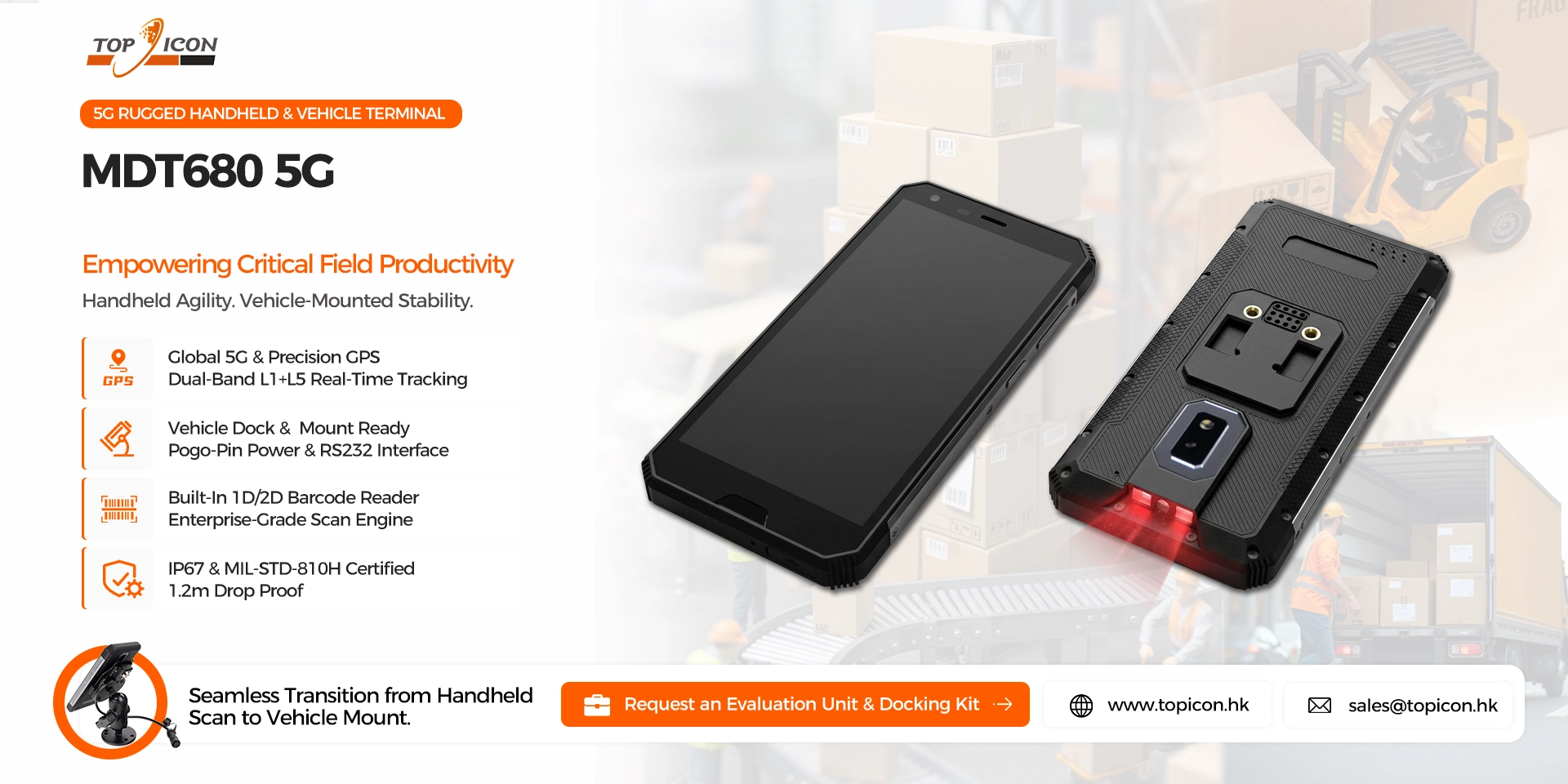

Introducing MDT680: The 5G Rugged Android Handheld Terminal for Critical Field Work
TOPICON expands its rugged handheld lineup with the MDT680 — a 5.7-inch, 5G-ready terminal that delivers over 30% performance gain across the board compared to its predecessor MDT665. With a 40MP autofocus camera, built-in barcode reader, NFC, UFS2.2 storage, and MIL-STD-810H drop resistance, the MDT680 is purpose-built for field inspection, logistics, and fleet deployments that demand speed, precision, and Android flexibility in a glove-friendly, IP67-sealed form factor.
1. Compact Yet Uncompromising: Built for the Job
The MDT680 packs enterprise-grade durability into a 161.5 x 77.5 x 18.9mm, 280g body that fits securely in a jacket pocket. The 5.7-inch IPS display (720 x 1440) remains readable under direct sun, and capacitive multi-touch responds to gloves, wet fingers, and stylus input — operators never need to remove PPE in hazardous environments. With IP67 sealing and 1.2m drop resistance per MIL-STD-810H, the MDT680 handles rain, dust, and the daily knocks of field work without interruption.
Powered by a 2.0GHz octa-core processor with 4GB LPDDR4X RAM and 128GB UFS2.2 storage — double the capacity and significantly faster read/write speeds than the MDT665's eMMC — the MDT680 runs Android 14 or Android 16 with or without GMS. Application launches, data sync, and camera processing all benefit from the storage architecture upgrade. For integrators deploying a company-wide in-vehicle terminal fleet, the same MDT680 docks in a truck cab during the day and stays handheld in the warehouse at night.
2. 5G-Ready with Dual-Band GNSS: Always Connected, Always Tracked
Where the MDT665 relied on 4G LTE, the MDT680 adds 5G NR across both EUR and NAR bands alongside full 4G/3G/2G fallback and a Nano-SIM + eSIM configuration. For field teams uploading high-resolution inspection photos, streaming video, or syncing large datasets from remote sites, 5G cuts upload times dramatically. Dual-band GNSS (GPS, GLONASS, Galileo L1+L5) delivers meter-level positioning accuracy even in urban canyons or dense forest cover. For fleet operators managing customized fleet computing hardware, the MDT680's location data feeds directly into your telematics backend.
3. Built-in Barcode Reader, NFC, and a 40MP Camera
The MDT680 integrates a 1D/2D imager directly into the top edge as standard — no optional smart plug required. Trigger it with a side button for rapid inventory counts, package tracking, or asset verification. The NFC module (MIFARE Classic, DESFire, ISO 14443/15693) enables badge login, secure access control, or tap-to-pair workflows without extra hardware.
For visual documentation, the 40MP autofocus rear camera — doubling the MDT665's 20MP sensor — captures inspection details, damage evidence, or delivery confirmation with exceptional clarity. An 8MP front camera handles video calls and operator self-checks. When integrated into a mobile data capture solution, the MDT680 becomes the single device field technicians reach for every task.
4. Vehicle Dock and RS232: From Handheld to Fixed-Mount
Both the MDT665 and MDT680 support vehicle and motorcycle docking stations. The MDT680 upgrades to a 12-pin docking connector with USB-C 2.0 OTG — providing faster data throughput and charging compared to the MDT665's 8-pin interface. When docked in a delivery van or inspection truck, the device charges automatically via pogo pins and connects to external peripherals like weighbridges or printers via RS232 — no cables to plug or unplug. This transforms the handheld into a fixed-mount vehicle computing terminal with zero setup time.
Equip your fleet with vehicle-mount solutions →
5. MDM-Ready: Deploy and Manage at Scale
For system integrators and fleet operators rolling out hundreds of devices, the MDT680 is fully compatible with TOPICON's centralized device management platform — a browser-based console that communicates directly with every terminal without per-device subscription fees. From the MDM dashboard, administrators can push custom boot animations, pre-install APKs, configure APN settings, lock devices into kiosk mode, and customize hardware button behavior — all remotely.
Combined with the OEM customization program, system integrators can ship MDT680 units pre-enrolled in their own MDM policies, with private-label branding and pre-loaded field applications — ready for work the moment they power on.
6. MDT680 vs MDT665: Over 30% Performance Leap Across the Board
The MDT680 is the direct successor to the proven MDT665 platform — retaining the same 5.7-inch form factor, IP67 rating, and MIL-STD-810H durability while upgrading nearly every internal subsystem. Fleet operators upgrading from MDT665 can reuse existing vehicle docks and accessories; the MDT680's 12-pin connector maintains backward compatibility with the MDT665 docking ecosystem.
What stays the same: Both devices share the same 5.7-inch 720x1440 IPS display, glove/wet/stylus multi-touch, IP67 sealing, MIL-STD-810H drop rating, -20°C to 60°C operating range, and RS232 via docking station. Existing MDT665 vehicle and motorcycle docks are compatible with the MDT680 — no need to replace your mounting infrastructure. For fleets looking to upgrade to the latest ELD-ready handheld, the transition is seamless.
7. Where the MDT680 Excels
Capture 40MP inspection photos, scan asset tags with the built-in reader, and upload reports via 5G — all from a pocketable device.
Standard barcode reader + NFC for package tracking, vehicle dock for in-cab navigation, RS232 for printer integration — one device, docked or handheld.
Glove-friendly touch, 5G voice, dual-band GPS for precise location — stays operational in rain, dust, and extreme temperatures.
Built-in imager reads 1D/2D codes in any orientation; NFC handles secure login — replace dedicated scanners with one rugged device.
Ready to Deploy the MDT680 in Your Field Operations?
Request a demo unit, discuss OEM customization with private-label branding, or get project pricing — TOPICON's engineering team supports your deployment from pilot to full rollout.
