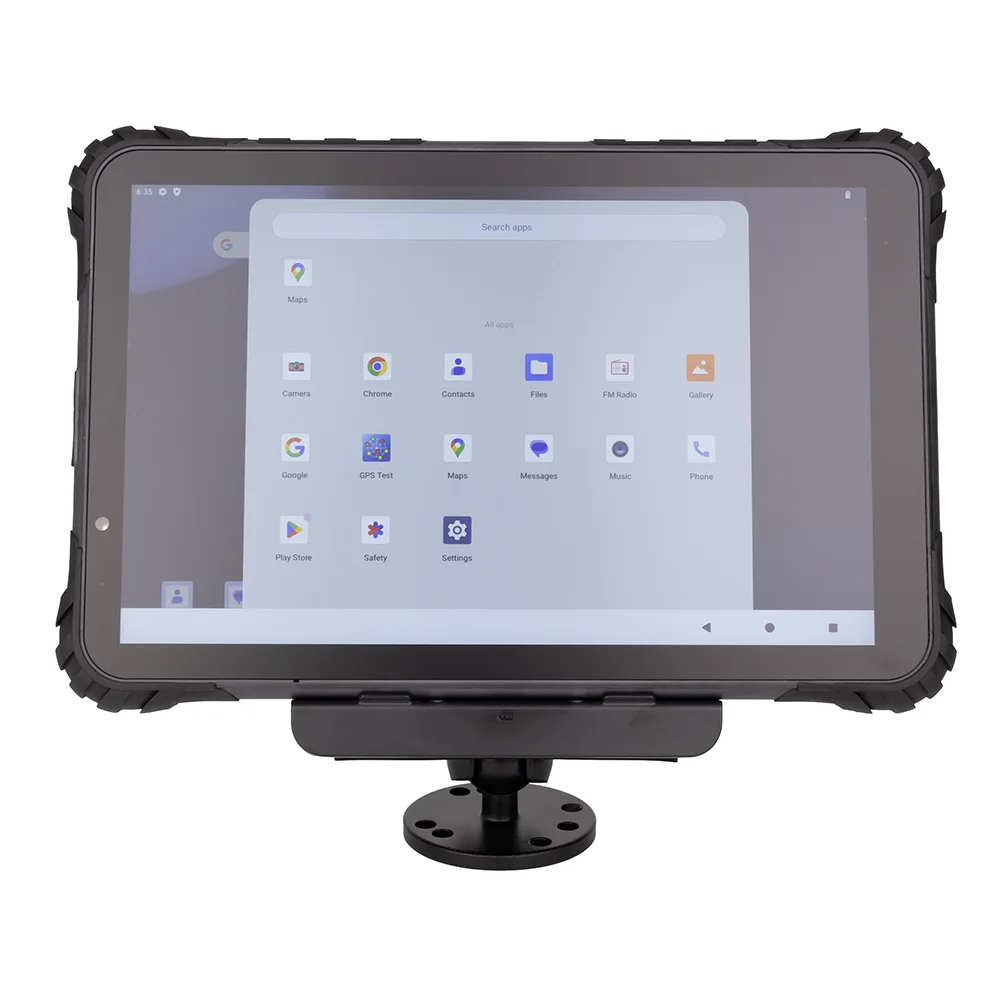

Click to rotate 360°

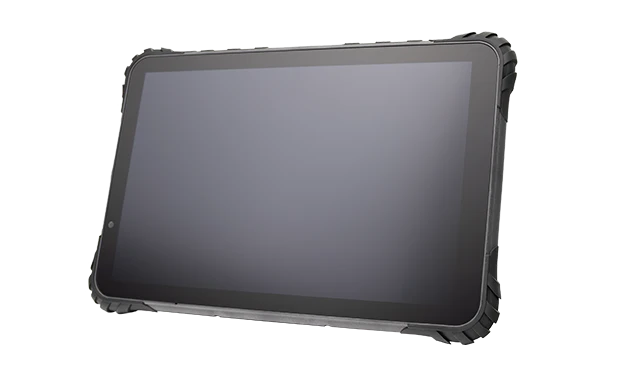

Front view of MDT1065 10-inch Android rugged tablet featuring high-brightness display and durable housing for industrial use.

Detailed view of MDT1065 rugged tablet I/O ports supporting USB, RS232, and DC input for versatile connectivity.

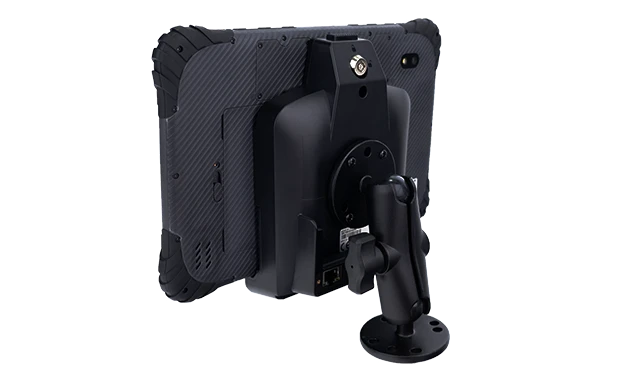

Close-up of MDT1065 rugged tablet with detachable full-metal mount bracket for stable and flexible installation.

MDT1065 10-inch rugged tablet mounted on vehicle dashboard using full-metal bracket for fleet and logistics management.

Product Views

360° View

Front View

Side View

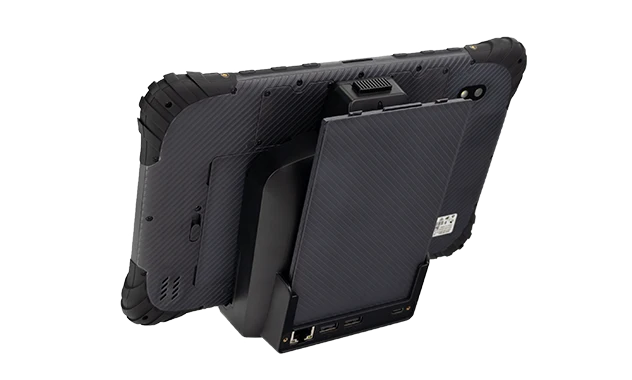

Docking with Battery

Vehicle Docking

MDT1065

10-inch Rugged Tablet | Vehicle Mount Computer

The Topicon MDT1065 is a 10-inch rugged Android vehicle-mount computer with MIL-STD-810H and IP67 protection.

10" Display

Large Screen

4G LTE

Connectivity

Vehicle Dock

Quick Release

RS232/485

Serial & Network

IP67

Rugged Design

DISPLAY & RUGGEDNESS

10-inch FHD anti-glare display
MIL-STD-810H and IP67 rugged standards

DATA CAPTURE

Optional hardware 2D barcode scanning
4-channel 1080p AHD camera hub for real-time mobile digital recording

VEHICLE INTERFACE (CRADLE)

Robust docking station with native RJ45, dual RS232, RS485, CAN Bus, 4×GPIO
LoRa wireless sensor compatibility

PLATFORM

Android 12/14 OS
Designed for heavy-duty fleet telematics, precision agriculture, and industrial automation

Request a sample Download full specs Docking stations Acessories

Need a customized configuration?

OEM / ODM CUSTOMIZATION →

RUGGED

IP67 Certified

WIDE TEMPERATURE

-20℃ to 60℃

VIBRATION & SHOCK

MIL-STD-810H

ANDROID 14

Secure & Reliable

MDM READY

Remote Management

Overview Specifications Docking Stations Videos Cases

MDT1065 10" Rugged Tablet | Vehicle Mount Computer & Vehicle Mount Terminal

MDT1065

COMPATIBLE DOCKS

Docking Stations for MDT1065

Select the dock tier that matches your deployment environment. All docks mount via RAM mount, enabling hand-latch tablet swap without tools.

STANDARD

Quick-Release Dock

One-hand dock/undock in 1 second. Pogo-pin contacts, 10,000+ cycles. Ideal for urban logistics, light trucks, and field service.

→ View all quick-release cradle variants in the table below

HEAVY-DUTY

Fixed Heavy-Duty Metal Dock

IP67 Option

Multi-perspective BKT1065 all-metal hand-latch dock with IP67 waterproof connector option

Rugged permanent mounting | Optional IP67 waterproof connector | Built for mining, agriculture & heavy equipment.

→ View all hand-latch cradle variants in the table below

BKT1065 all-metal dock with integrated 1D/2D barcode scanner for forklift and warehouse

AUTO-SCAN

1D/2D Barcode Scanner Dock

Wall Mount Option

Multi-perspective BKT1065 all-metal dock with integrated 1D/2D barcode scanner for forklift and warehouse

All-metal extended dock with built-in barcode imager. Hand-screw latch. Ideal for forklift inventory, waste management, and yard logistics.

→ View all barcode scanner cradle variants in the table below

Need help selecting a docking station?

The three tiers above cover the main use cases. For a side-by-side comparison across all three tablet platforms — MDT880, MDT865, and MDT1065 — see the docking station matrix. For custom interface combinations or project-specific configurations, contact our engineering team.

TECHNICAL APPLICATIONS

Rugged Tablet Technical Solutions

Explore how our tablets solve specific industrial and fleet challenges

4-Channel AHD Video

ADAS / DMS / Surveillance

Multi-camera vehicle safety with 4x AHD inputs, trigger support, and real-time video upload.

RS232 / Serial I/O

Legacy Integration

Dual RS232, RS485, and GPIO for industrial automation, diagnostic tools, and legacy equipment.

Vehicle Mount Computers

Fixed / Docked Installation

Vehicle mount terminal solutions with 9-36V power, ignition sensing, and CAN Bus integration for permanent fleet installations.

M12 / Ethernet

IP67 Network

Threaded M12 Ethernet connector for buses, trains, industrial HMI, and fixed-mount applications.

Barcode / RFID / NFC

Asset Tracking

1D/2D barcode, RFID (UHF/HF/LF), and NFC for warehouse, school bus, and access control.

Basic Vehicle Power

9-36V / Ignition Sense

Simple, reliable vehicle power for information displays, driver terminals, and passenger systems.

MDT1065 MDT1065 MDT1065

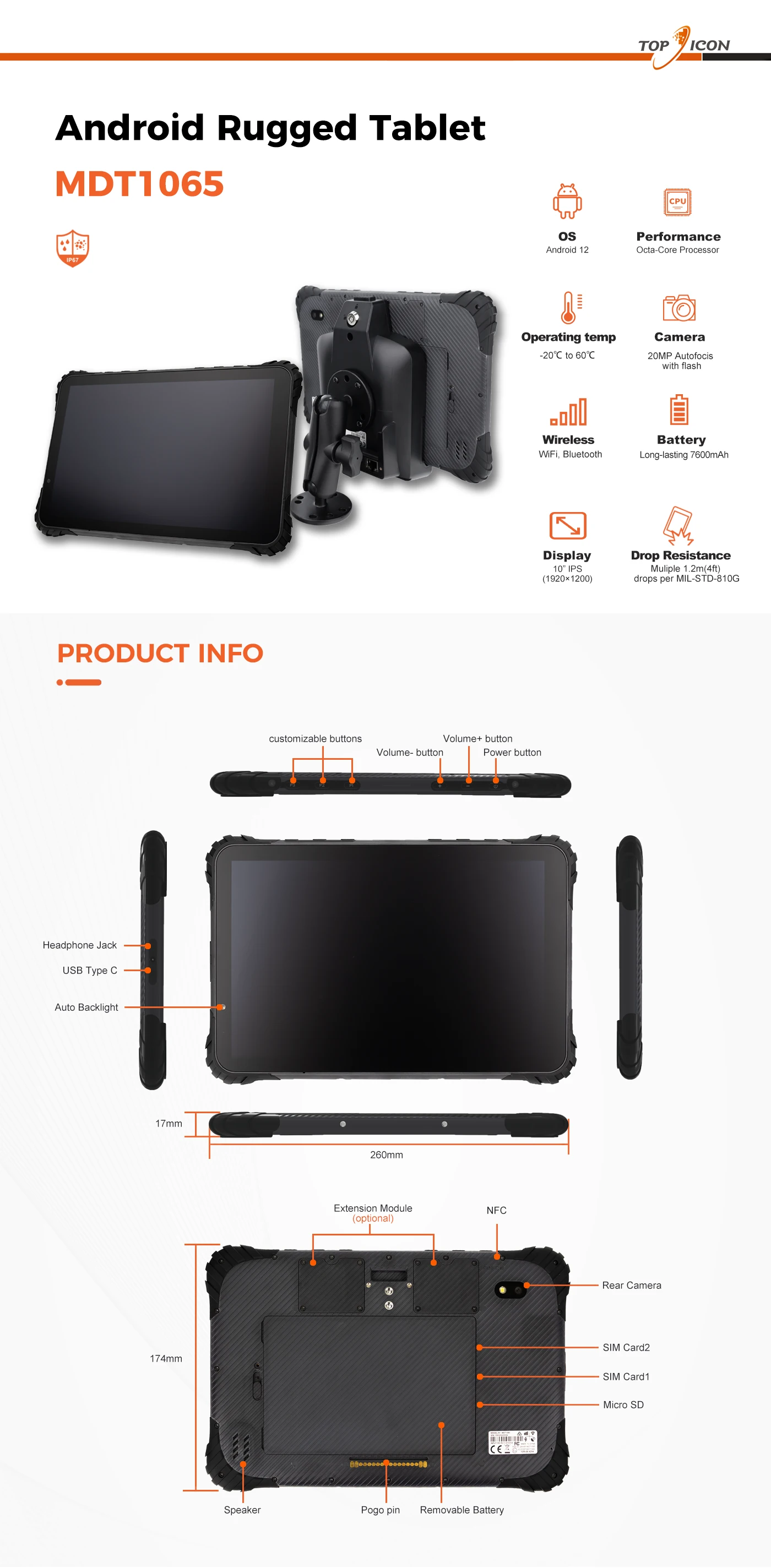

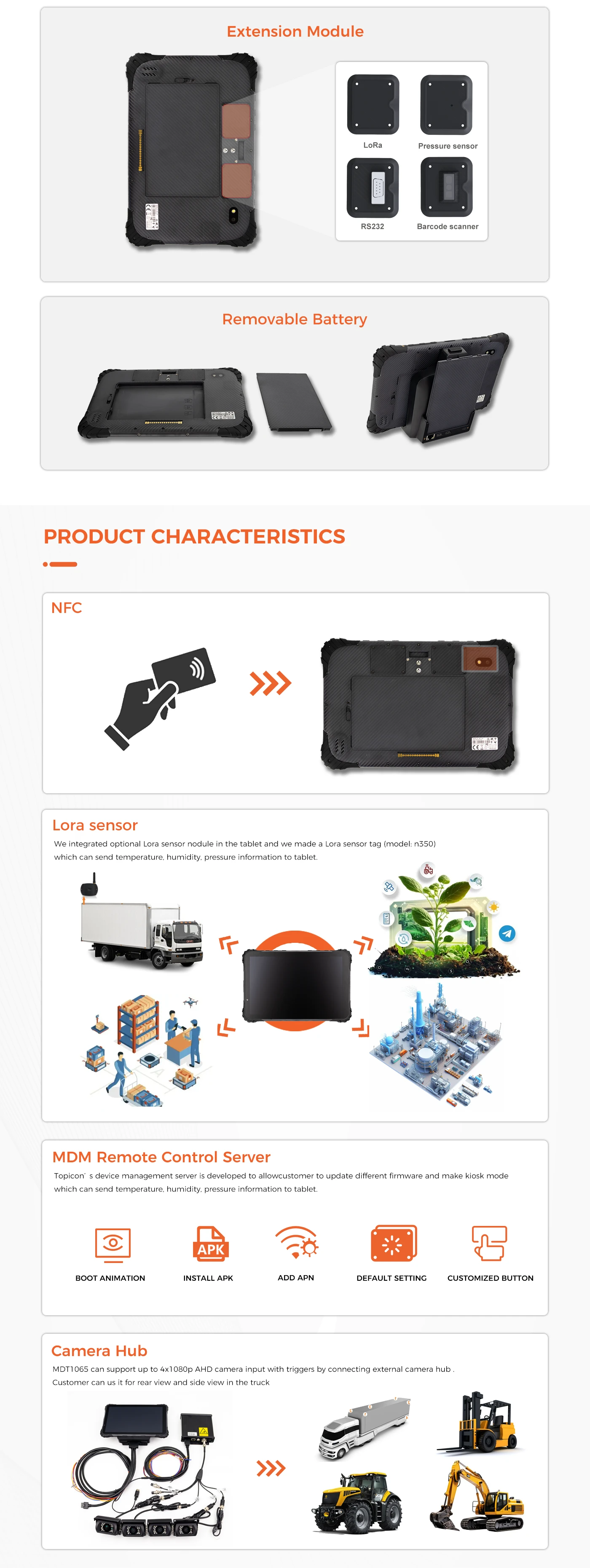

MDT1065 Features

Frequently Asked Questions (FAQ)

What is the screen size of MDT1065?

MDT1065 features a 10.1-inch sunlight-readable display with 1000-nit brightness and optical bonding, making it ideal for applications requiring detailed viewing — such as fleet telematics dashboards, passenger information systems, and emergency vehicle command centers.

Is MDT1065 suitable for vehicle mounting?

Yes. MDT1065 is designed for vehicle-mounted deployment with secure docking cradles, 9-36V wide voltage power input, and ignition sensing — compatible with trucks, buses, emergency vehicles, and construction equipment. It integrates seamlessly with TOPICON's vehicle mount computers, supporting fixed and docked installation architectures.

What I/O interfaces does MDT1065 support?

MDT1065 supports RS232, USB, GPIO, and Ethernet — enabling integration with vehicle diagnostics, sensors, cameras, and fleet management systems. Learn more about serial I/O solutions →

What industries commonly use MDT1065 rugged tablets?

MDT1065 is widely deployed in public transit (bus passenger information), trucking telematics, fire and emergency vehicles, warehouse HMI, and fixed-mount industrial control panels. It functions as a reliable vehicle mount terminal across diverse commercial fleets.

Can MDT1065 be used as a mobile data terminal (MDT)?

Yes. MDT1065 is designed for mobile data terminal applications, supporting real-time dispatch, GPS tracking, and vehicle data integration. Its large screen provides enhanced visibility for operators and dispatchers.

Does MDT1065 support camera modules?

Yes. MDT1065 supports AHD video input (via compatible cradle), external GPS antennas, and optional barcode reader modules — enabling flexible configuration for fleet monitoring and asset tracking. Learn about 4-channel AHD solutions →

What is the brightness and visibility of MDT1065 display?

MDT1065 features a 1000-nit high-brightness display with optical bonding technology, ensuring clear visibility in direct sunlight — essential for outdoor vehicle operations and open-cab equipment. For fleets requiring fleet management tablets with premium display performance, this large-screen platform delivers the clarity operators demand. For a deeper technical look at the hardware architecture behind reliable navigation, see our Navigation Tablet hardware architecture guide.

Can MDT1065 be used in school buses or public transit?

Yes. MDT1065 is widely used for real-time passenger information, next-stop announcements, and driver communication. For dedicated transit applications, TOPICON also offers a specialized bus tablet solution →

Is MDT1065 compatible with TOPICON vehicle mount terminals?

Yes. MDT1065 integrates with TOPICON's vehicle mount computers ecosystem, supporting fixed and docked installation architectures with 9-36V power, RS232/GPIO interfaces, and OEM customization. For a complete docking matrix across all models, refer to the docking station configuration matrix →

Is MDT1065 available for OEM or customization projects?

Yes. MDT1065 supports OEM customization including hardware interfaces (RS232/GPIO), software configuration, private branding, and vehicle docking solutions. As part of the broader in-vehicle tablet platform, MDT1065 can be configured to meet specific fleet deployment requirements. Contact OEM team →

Hardware

CPU: MTK platform 2GHz octa-core CPU

GPS: High sensitivity receiver (GPS, GLONASS, GALILEO)

Display: 10.1 inch, IPS panel (1920 x 1200 pixel)

Touch Panel: Anti-glare capacitive multi-touch panel (Supports Glove & Wet modes)

Bluetooth: V5.0

WLAN: Wi-Fi IEEE 802.11 a/b/g/n/ac (Dual-Band 2.4GHz/5GHz)

Camera (back camera): 20Mpixel autofocus camera with flashlight

Camera (front camera): N/A

Video input: Support 1-channel AHD 720P/1080P and analog camera (w/ Cradle)

Support 4-channel AHD 720P/1080P and analog camera with HDD loop recording (w/ Camera Hub)

RFID: Yes, optional (Supports NFC reader at docking station)

G-sensor: Yes, default

Light sensor: Ambient Light Sensor, default

E-Compass: Magnetometer, default

Gyroscope: 3-axis Gyroscope, default

Sensor extensions: Barometric Altimeter

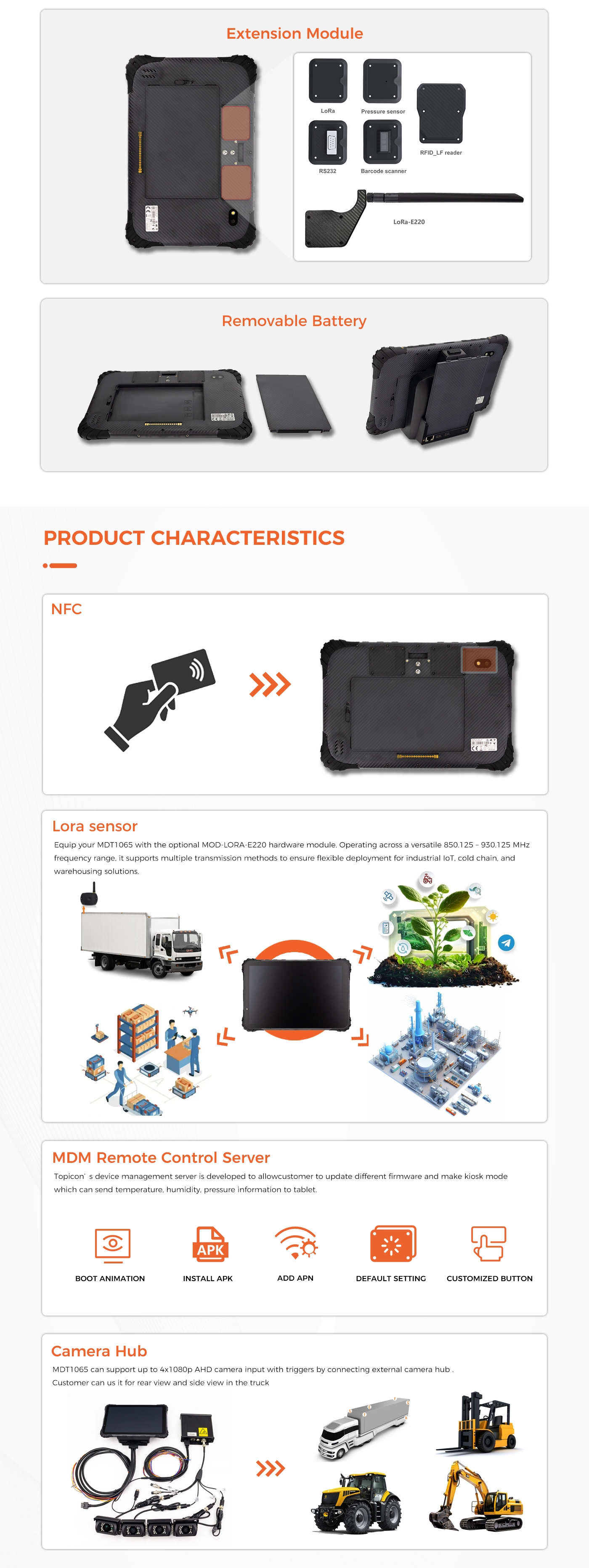

Scanner module: Yes, optional (1D & 2D Imagers)

Wireless module: Optional, LoRa module (To connect wireless LoRa temperature sensor)

Antenna: Internal antenna

LED indicator: Two-color LED (Audible tone & Charging Status LED)

Operating Temp: -20℃ to 60℃ (-4°F to 140°F)

Storage Temp: -20℃ to 70℃ (-4°F to 158°F)

Humidity: 90% non-condensing

Sealing: IP67 certified

Drop Spec: 1.2m (4 ft.) drops per MIL-STD-810H

Electrostatic Discharge (ESD): +/-8kVdc air discharge, +/-4kVdc direct discharge, +/-4kVdc indirect discharge

Dimensions: 260mm L x 174mm W x 17mm D

Weight: 930g

Software

Operating System: Android 12 or Android 14 with GMS / Non-GMS

MDM Server Functions: Remote control server (Supports Boot Animation, Install APK, Add APN, Default Setting, Customized Button, Kiosk Mode)

Android applications: TBD

Navigation software: TBD

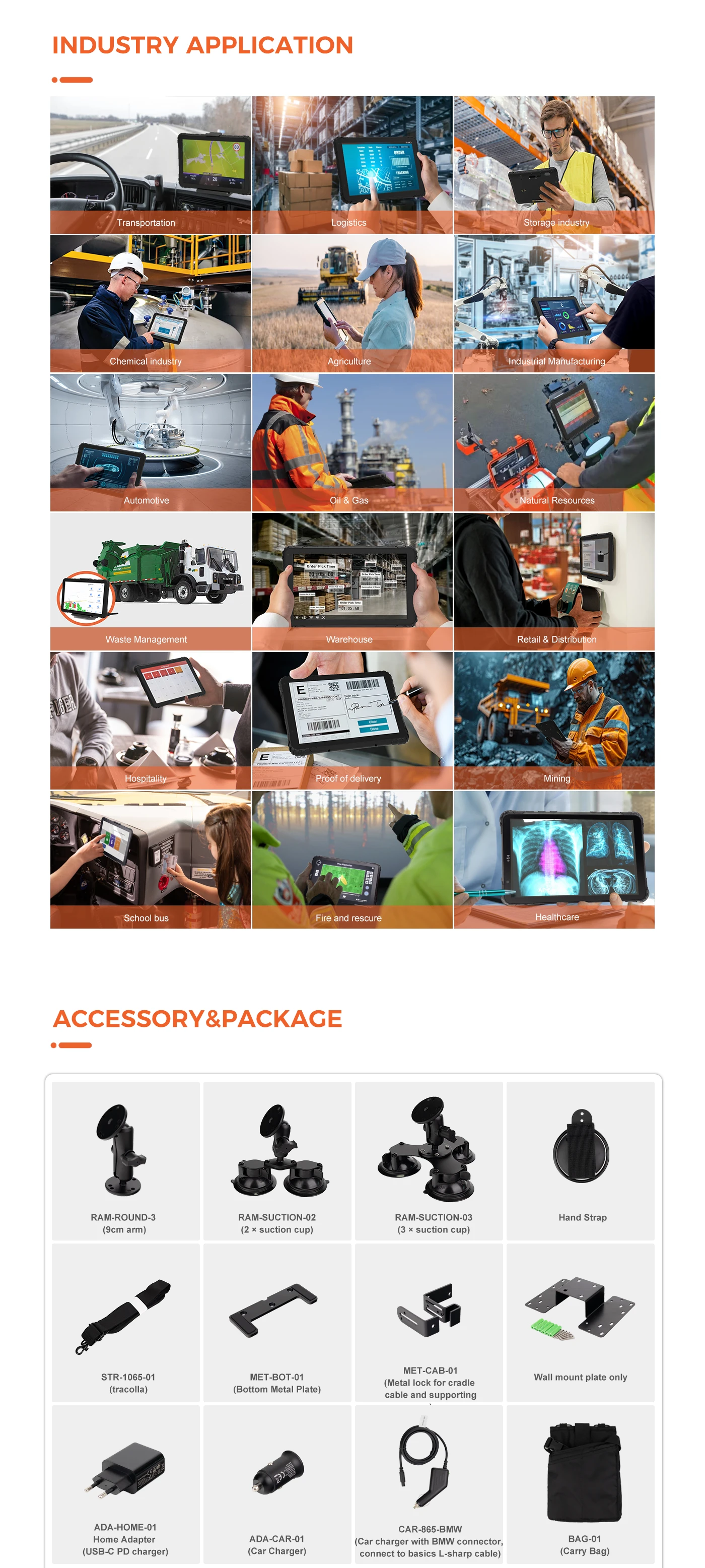

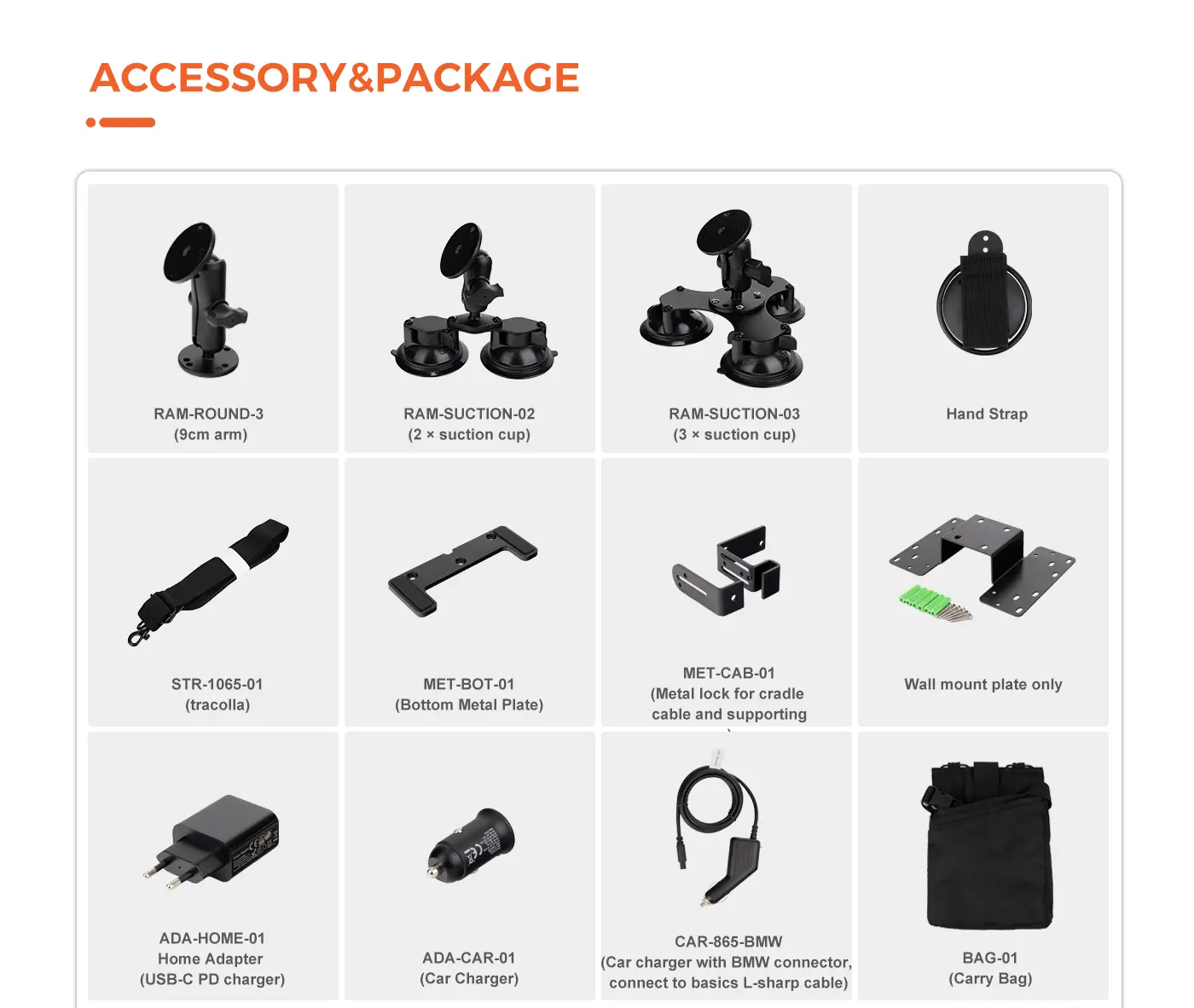

Packaging Detail

1pc main unit

1pc Vehicle docking station (Cradle)

1pc RAM Mount kit

1pc Type-C cable

1pc Car charger

1pc Screw kit

1pc NFC test card

Cellular Module

Radio Frequency:

2G-GSM: 850/900/1800/1900MHz

3G-WCDMA: B1/B2/B4/B5/B8

4G-LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28/B66

4G-LTE TDD: B38/B40/B41

GNSS: GPS, GLONASS, GALILEO

Memory

Storage (ROM): 64GB eMMC flash

Memory (RAM): 4GB LPDDR4X

Expansion Slot: MicroSD (TF) card, user-accessible, supports up to 512GB

Interface

USB Connector: 1 x USB Type-C 2.0 OTG on the device

Audio Jack: 1 x 3.5mm Audio Headphone Jack on the device

Pogo pins: 18-pin docking connector

Cradle Interfaces: 2 x RS232, 1 x RS485, 4 x GPIO, 1 x RJ45 Ethernet Connector, 2 x USB Type-A 2.0 OTG, 1 x Type-C for power supply

SIM card slot: 2 x Nano-SIM slots

Battery

Capacity: Rechargeable Lithium-ion Battery 3.85V 7600mAh

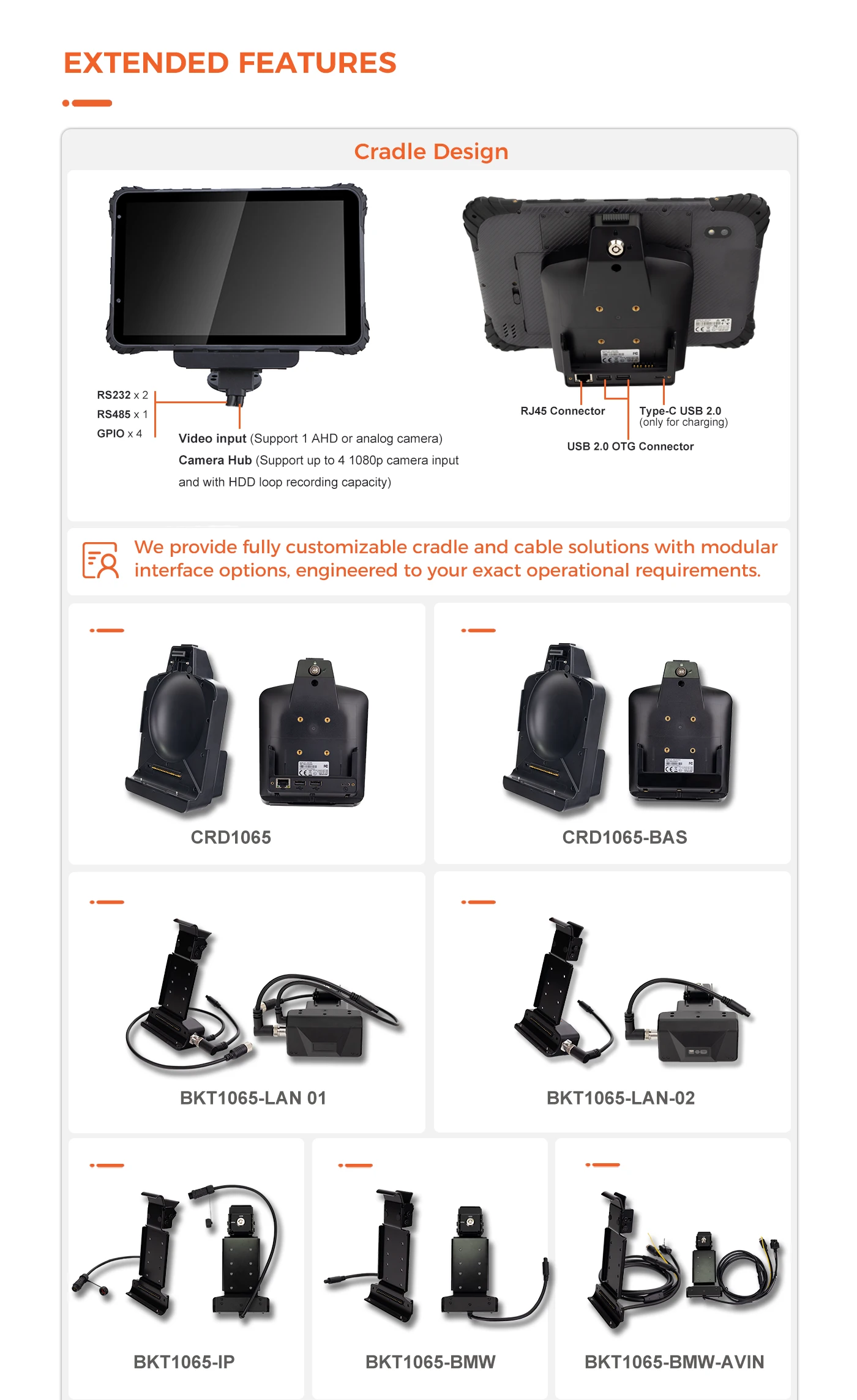

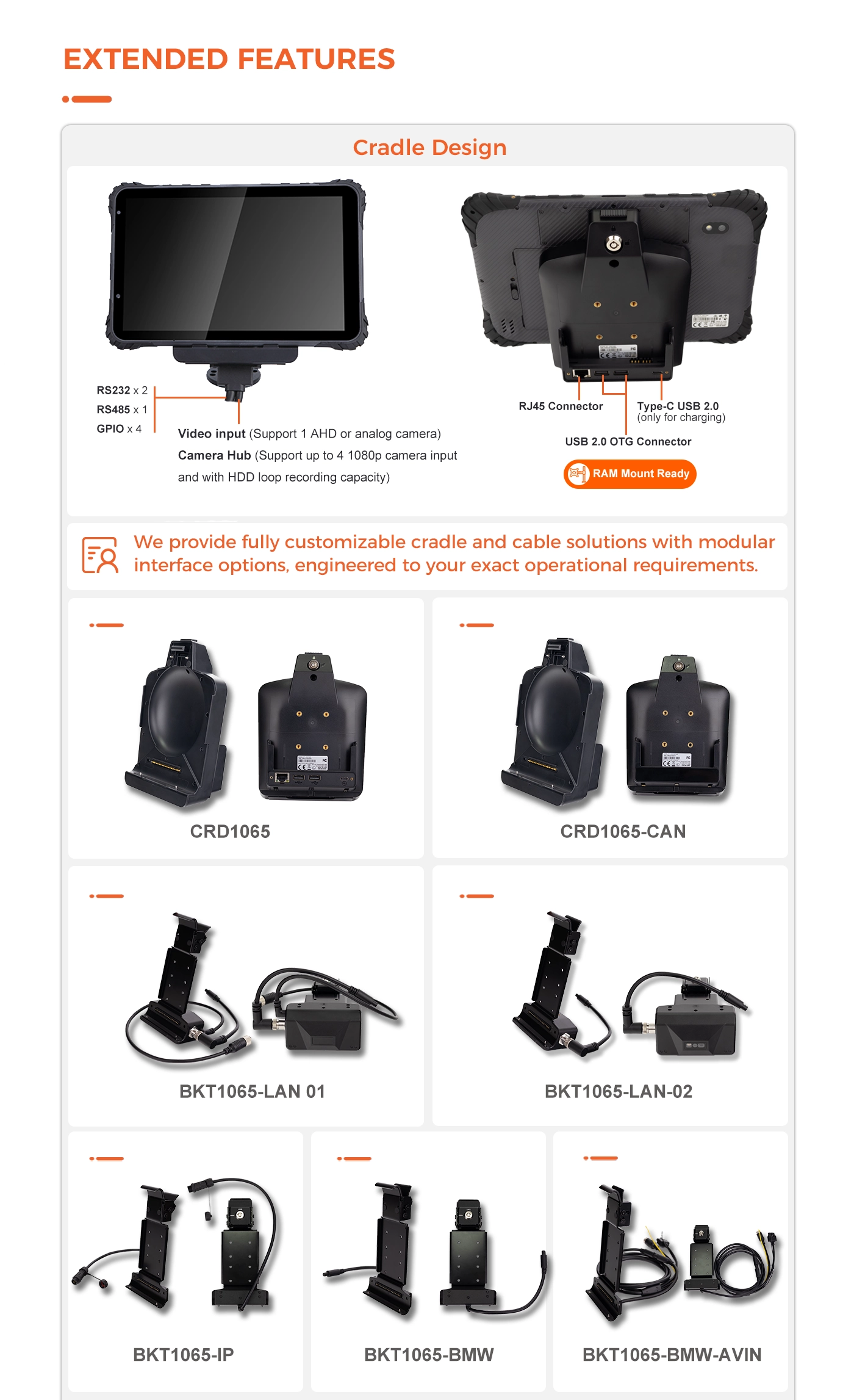

Docking Stations

MDT1065 Docking Stations

10" 4G Rugged Tablet · 13 cradle configurations across CRD1065, CRD1065-BAS, and BKT1065 series

⚡ Same cradle hardware, different cable kits — select the interface set that matches your deployment.

Cradle Model	Power	CAN Bus	RS232	RS485	GPIO In / Out / ADC	Camera	Ethernet	USB-A OTG	USB-C Charge	Special
CRD1065 SERIES · MDT1065 EXCLUSIVE
CRD1065 (TYPE-A)	DC12–36V	—	2	1	4× 2 / 1 / 1	1× On Cradle	RJ45	2×	1×	—
CRD1065 (TYPE-B)	DC12–36V	—	2	1	—	4CH+HUB +1 On Cradle	RJ45	2×	1×	4× Trigger
CRD1065 (TYPE-E)	DC12–36V	—	1	—	—	—	RJ45	3×	1×	—
CRD1065 (TYPE-F)	DC12–36V	—	1	—	—	4CH+HUB +1 On Cradle	RJ45	2×	1×	4× Trigger
CRD1065-CAN	DC12–36V	1×	2	—	4× 2 / 1 / 1	—	RJ45	2×	1×	—
CRD1065-M12	DC12–36V	—	1	—	—	—	M12	2×	1×	M12→RJ45 Adapter
CRD1065-BAS SERIES · ENTRY LEVEL
CRD1065-BAS (TYPE-C)	DC12–36V	—	1	—	—	1× On Cradle	—	—	—	—
CRD1065-BAS (TYPE-D)	Car 12/24V	—	—	—	—	—	—	—	—	Car Charger
BKT1065 SERIES · FIXED METAL MOUNT
BKT1065-IP	DC12–36V	—	1	—	—	—	—	—	—	Waterproof Connector
BKT1065-BMW	DC12–36V	—	1	—	—	—	—	—	—	—
BKT1065-OTG	DC12–36V	—	1	—	—	—	—	1×	—	—
BKT1065-LAN-01	DC12–36V	—	1	—	—	1× On Cradle	M12	—	1×	M12→RJ45 Adapter
BKT1065-LAN-02	USB-C	—	—	—	—	—	RJ45 (opt.)	—	1×	1D/2D Barcode Scanner

USB ports: All USB-A ports on the cradle provide OTG host functionality. All USB-C ports provide charging only. When the tablet is docked, the tablet's own side USB ports are blocked and cannot be used — all USB connectivity is provided through the cradle cable.
GPIO allocation: In / Out / ADC breakdown per cradle. Example: "4× (2 / 1 / 1)" means 4 total GPIO lines — 2 inputs, 1 output, 1 ADC input.
CAN Bus: CRD1065-CAN supports 1× native CAN Bus channel. Any cradle configuration with a USB-A OTG port can add up to 2 CAN Bus channels through the optional EXT-USB-CAN-01 — USB to CAN Bus Adapter Cable, enabling CAN Bus integration on configurations that do not include a native CAN interface.
BKT1065 series: Key-lock retention, designed for fixed permanent installation.
Cable dependency: Interface availability depends on the selected cable kit. The same physical cradle can expose different interfaces through different CAB-xxx cables.
