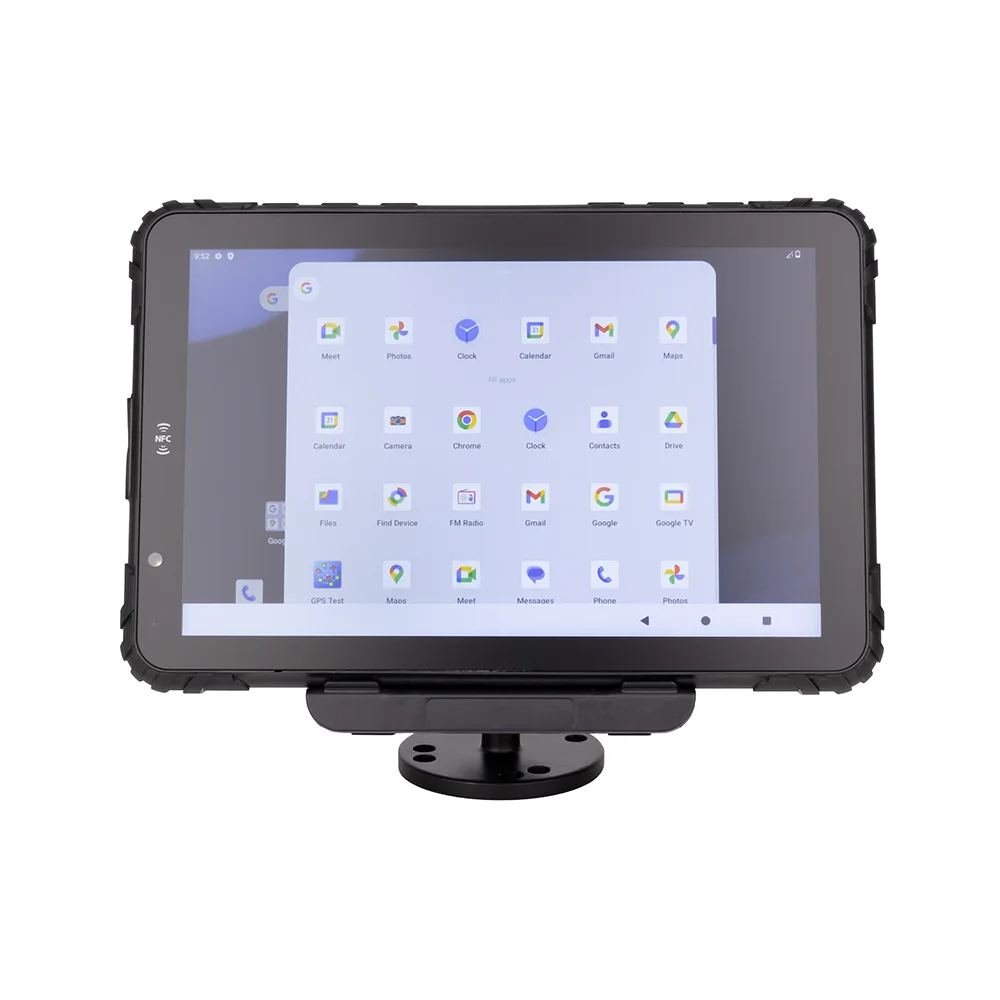

Front view of MDT865 8-inch Android rugged tablet with high-brightness display and durable industrial design.

Detailed view of MDT865 rugged tablet I/O ports including USB, RS232, and power connectors for data and charging.

MDT865 rugged tablet equipped with detachable sunshield for better outdoor visibility under strong sunlight.

MDT865 rugged tablet featuring built-in PTT walkie-talkie capability for instant team communication.

Close-up of MDT865 rugged tablet attached to metal mounting bracket for secure and flexible installation.

MDT865 rugged tablet placed on desktop charging dock for stable power supply and data transmission.

Product Views

360° View

Front View

Ports and Connectors

Sunshield Cover

Walkie-Talkie

Vehicle Docking

Charging

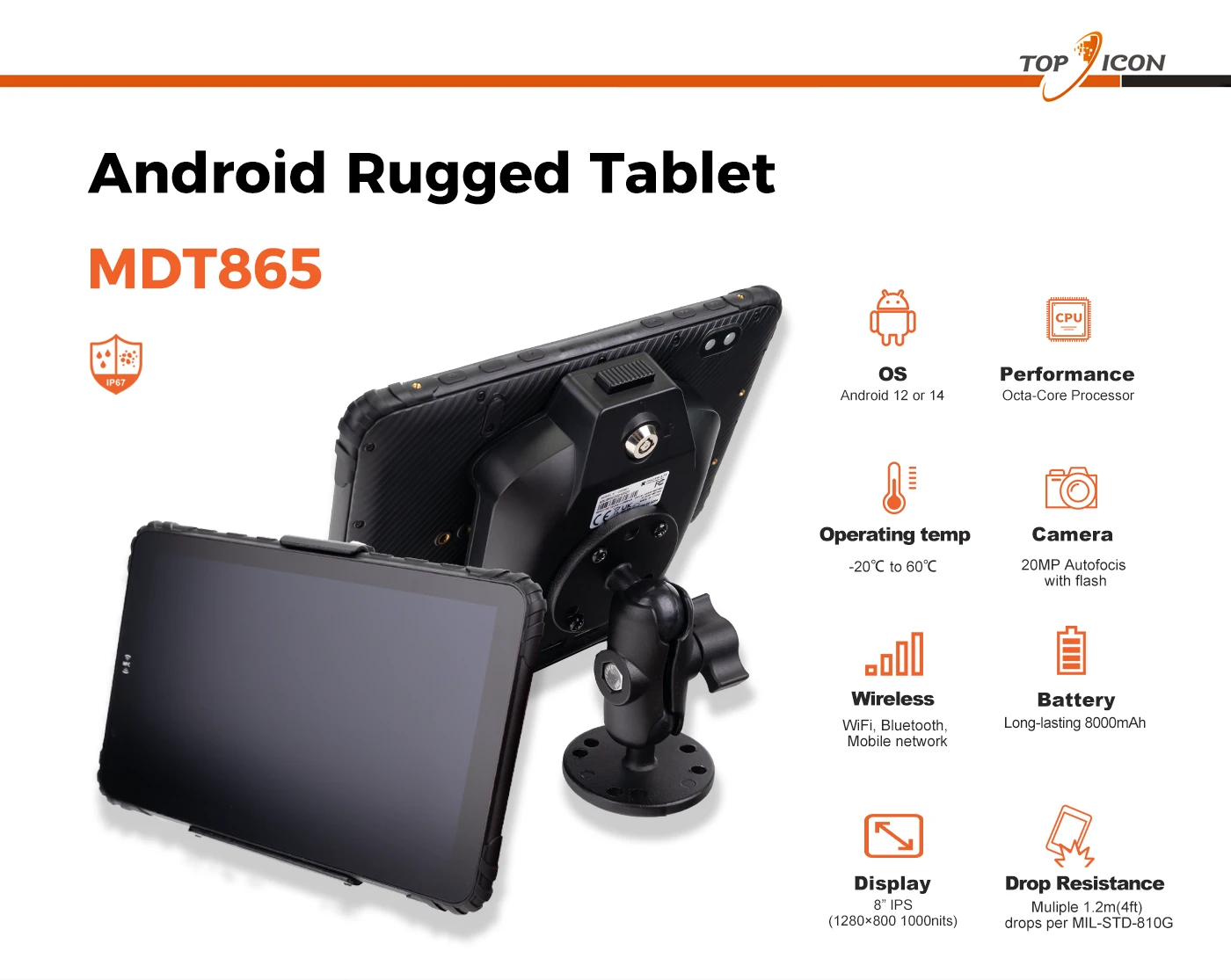

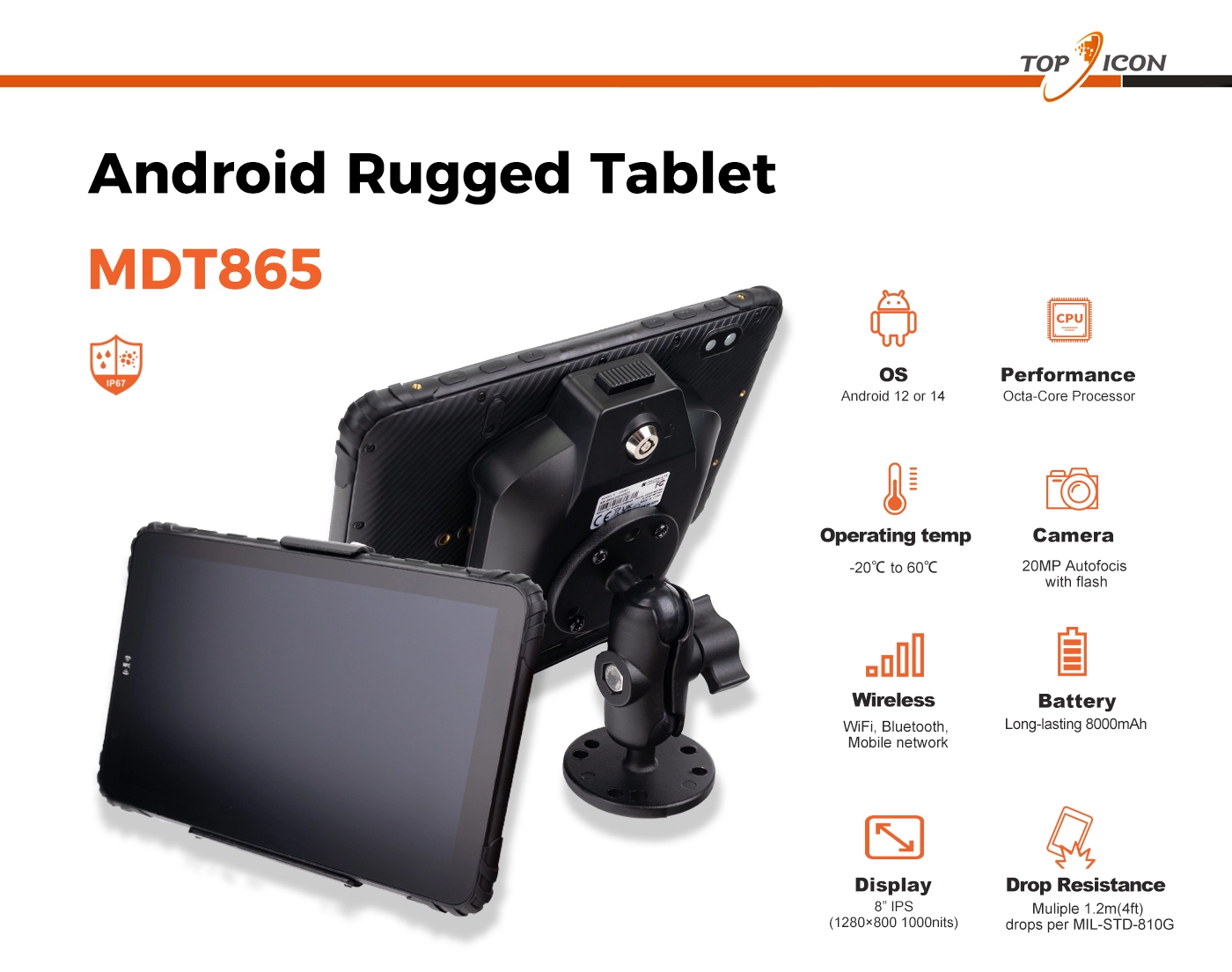

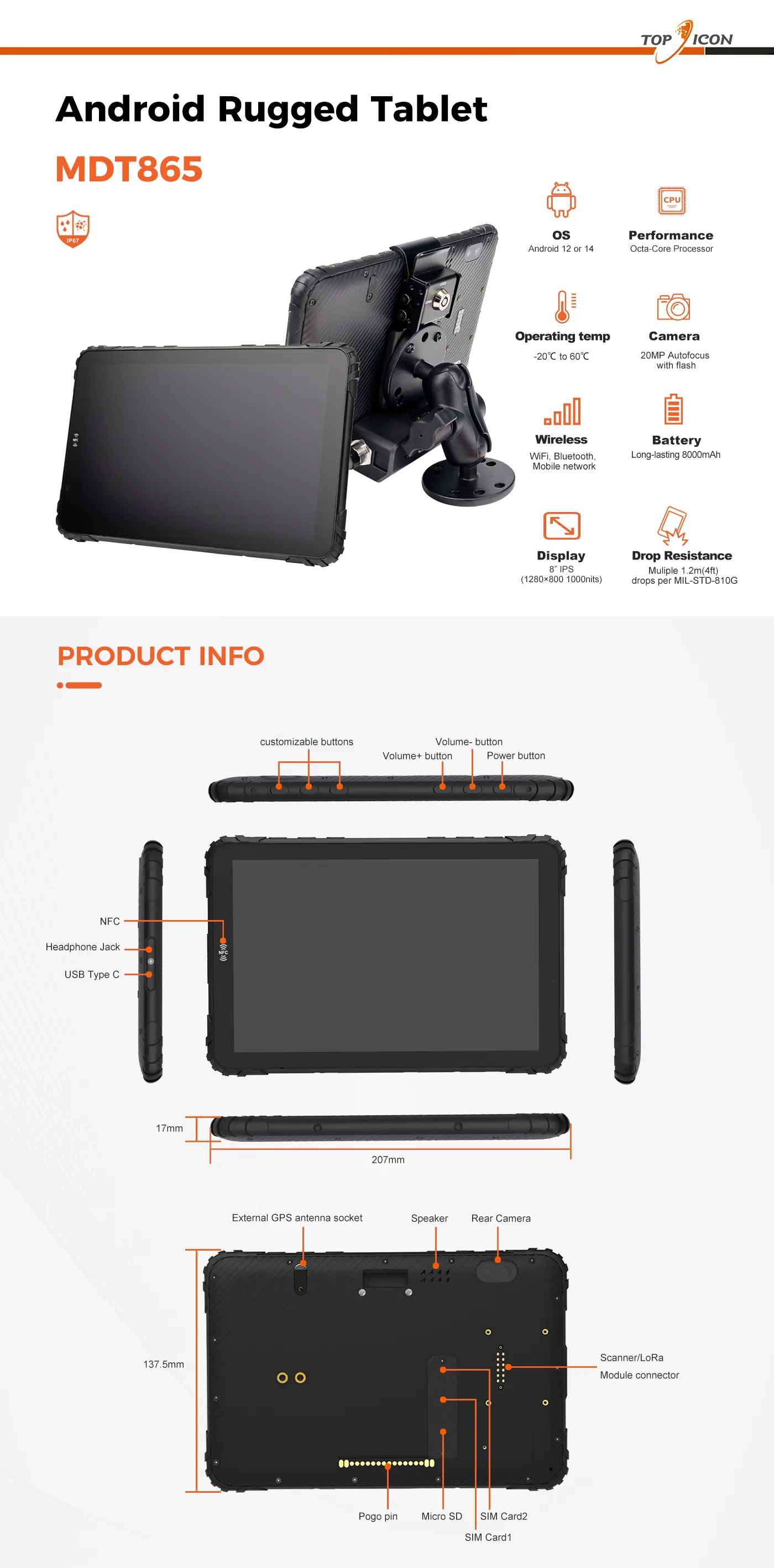

MDT865

8-inch Rugged Android Vehicle Computer for Fleet, ELD & Warehouse

Name: MDT865 8-inch Rugged Android Vehicle Mount Computer
Brand: TOPICON
SKU: MDT865
Availability: InStock

Heavy-duty in-vehicle terminal for fleet telematics, mining, and precision agriculture.

1000 NITS

High Brightness

4G LTE

Connectivity

Dock

Quick-Release

CAN Bus

Vehicle Interface

IP67

Rugged Design

RUGGED & DISPLAY

8" IPS, 1280×800, 1000nits
IP67, 1.2m MIL-STD-810G drop
-20℃~60℃ operating
20MP rear camera

PLATFORM

Android 12/14, Octa-Core 2.0GHz
4GB + 64GB, microSD up to 512GB
8000mAh, 604g
MDM: kiosk, APK, firmware

CONNECTIVITY

WiFi a/b/g/n/ac, BT 5.0
2G/3G/4G, 2× Nano-SIM
GPS/GLONASS/GALILEO
NFC, sensors

DATA CAPTURE & CRADLE

Optional 1D/2D scanner, RFID, LoRa
Cradle: RS232×2, RS485, GPIO×4, RJ45
1–4ch AHD/analog video
Vehicle dock, NFC reader

Request a sample Download full specs Docking stations Acessories

Need a customized configuration?

OEM / ODM CUSTOMIZATION →

RUGGED

IP67 Certified

WIDE TEMPERATURE

-20℃ to 60℃

VIBRATION & SHOCK

MIL-STD-810H

ANDROID 12/14

Secure & Reliable

MDM READY

Remote Management

Overview Specifications Docking Stations Videos Cases

DESIGN & BUILD

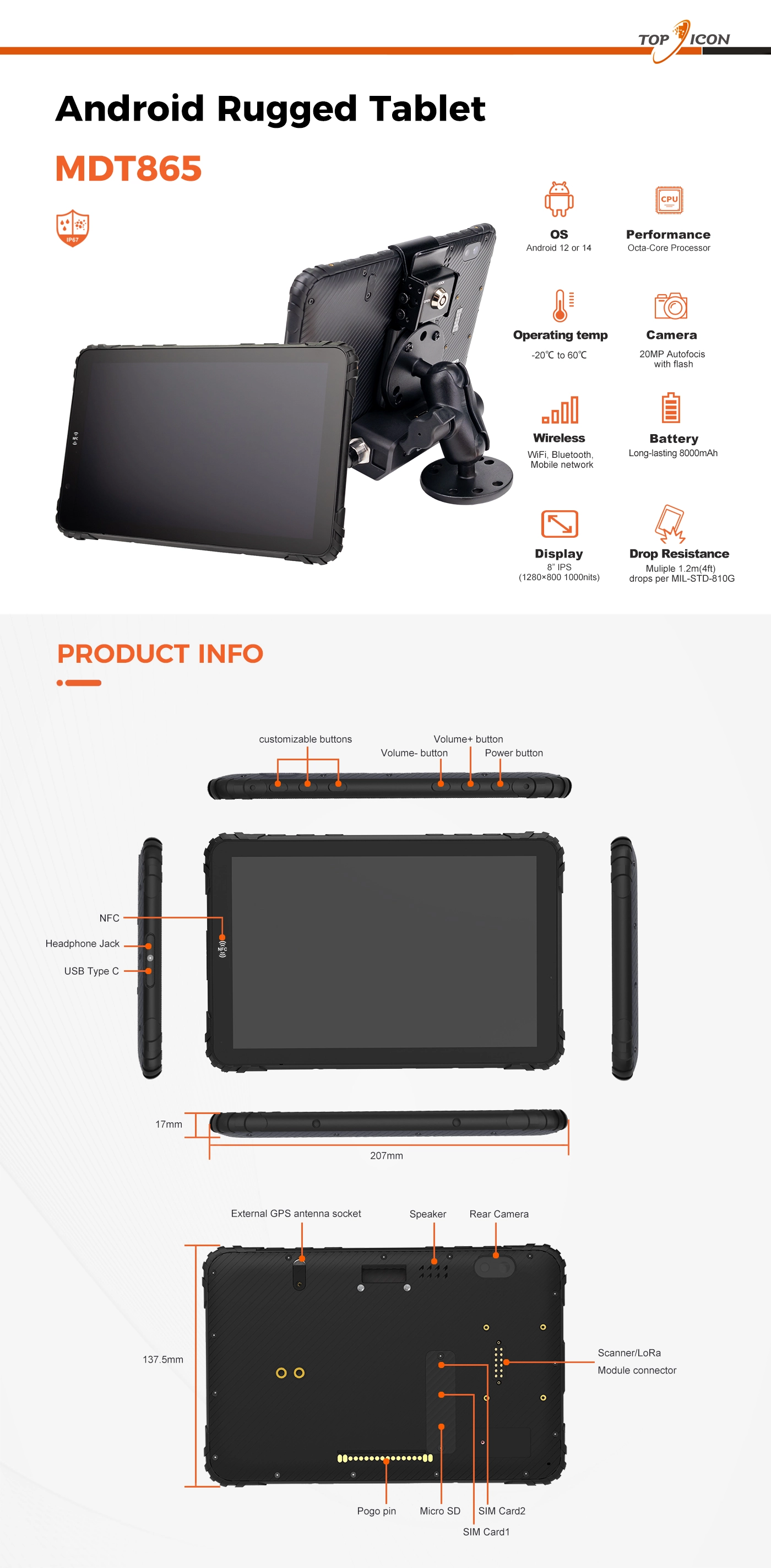

MDT865 Vehicle Mount Computer Design & Build

Industrial-grade construction for demanding fleet environments

MDT865 rugged tablet design

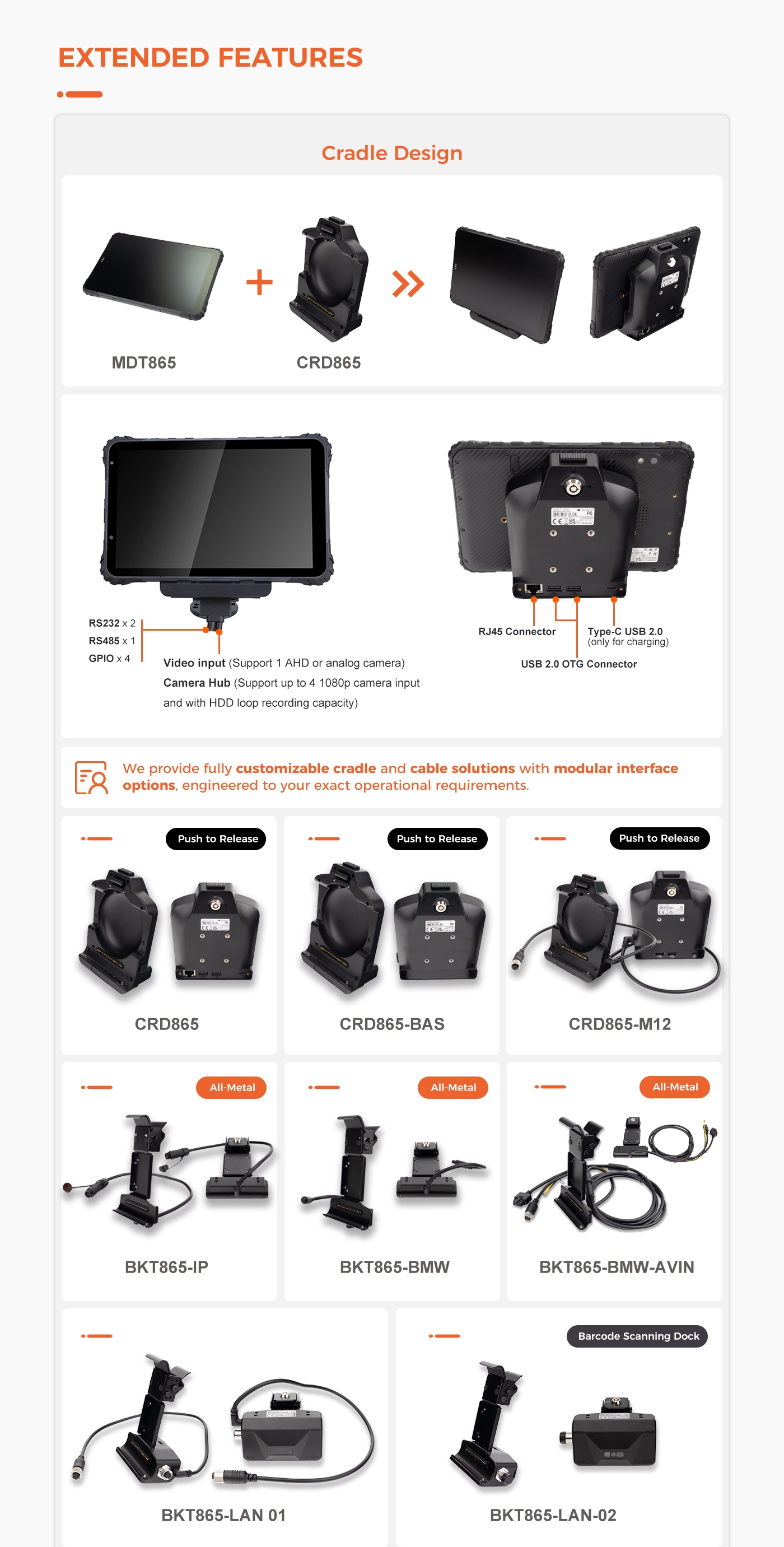

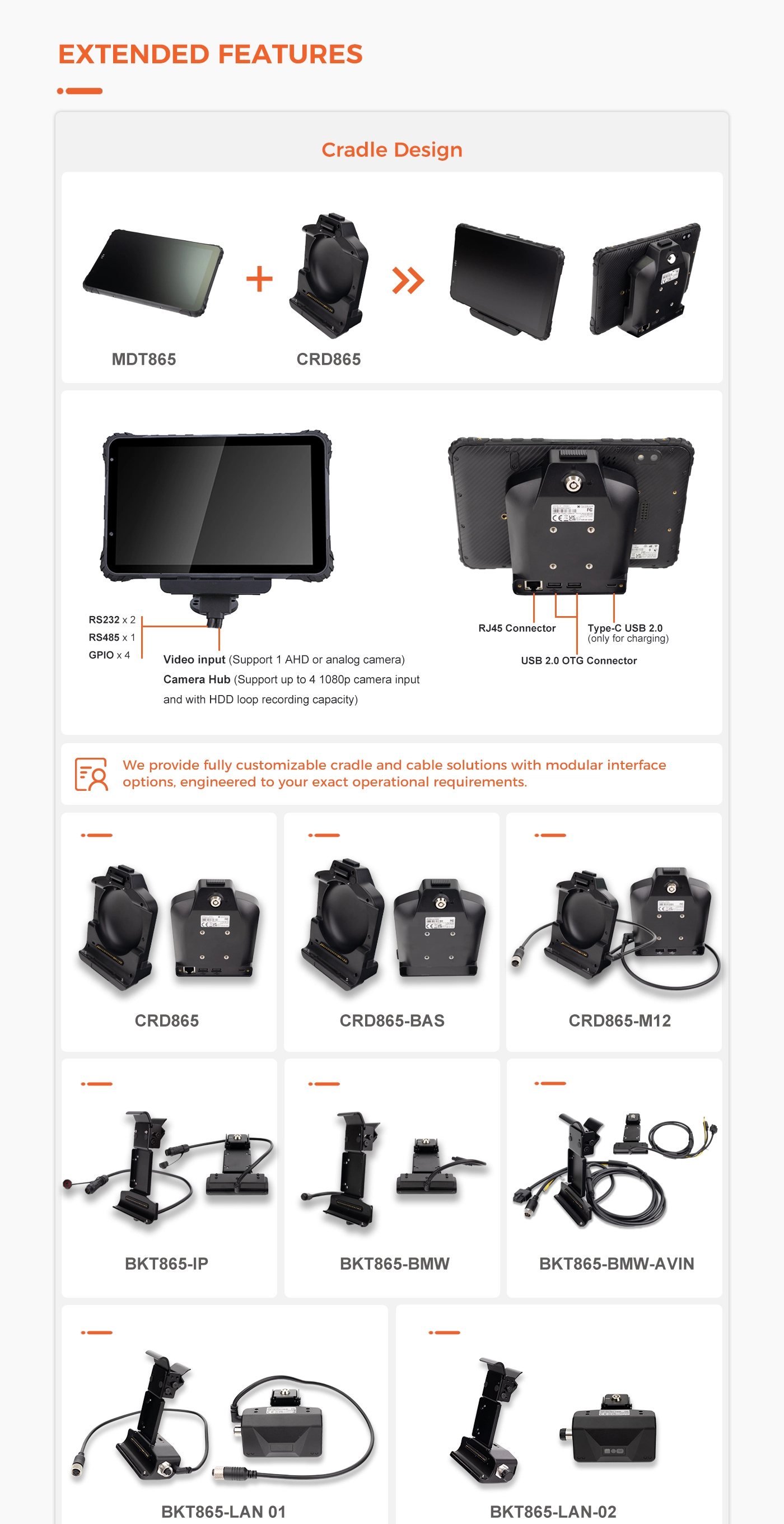

COMPATIBLE DOCKS

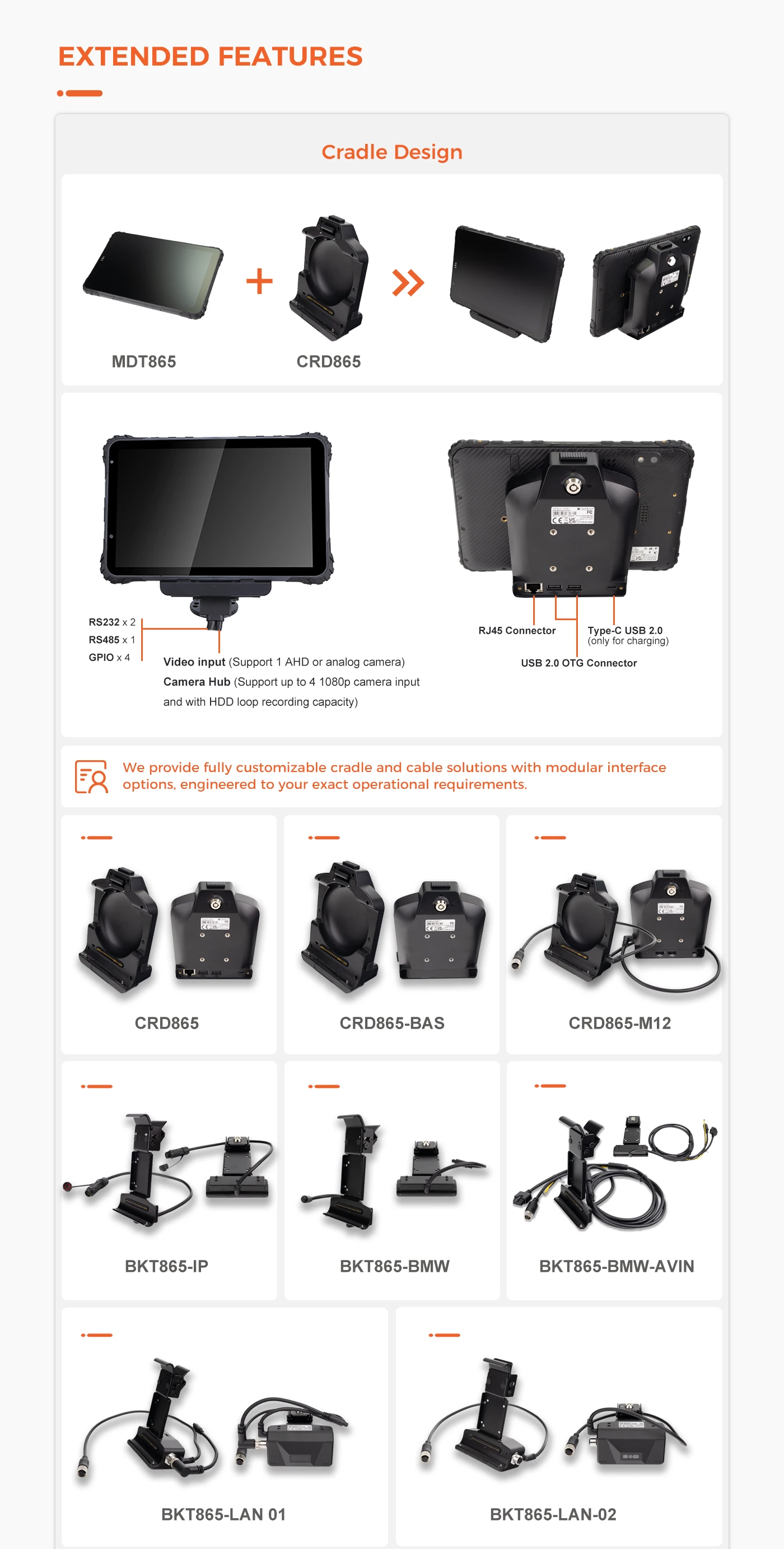

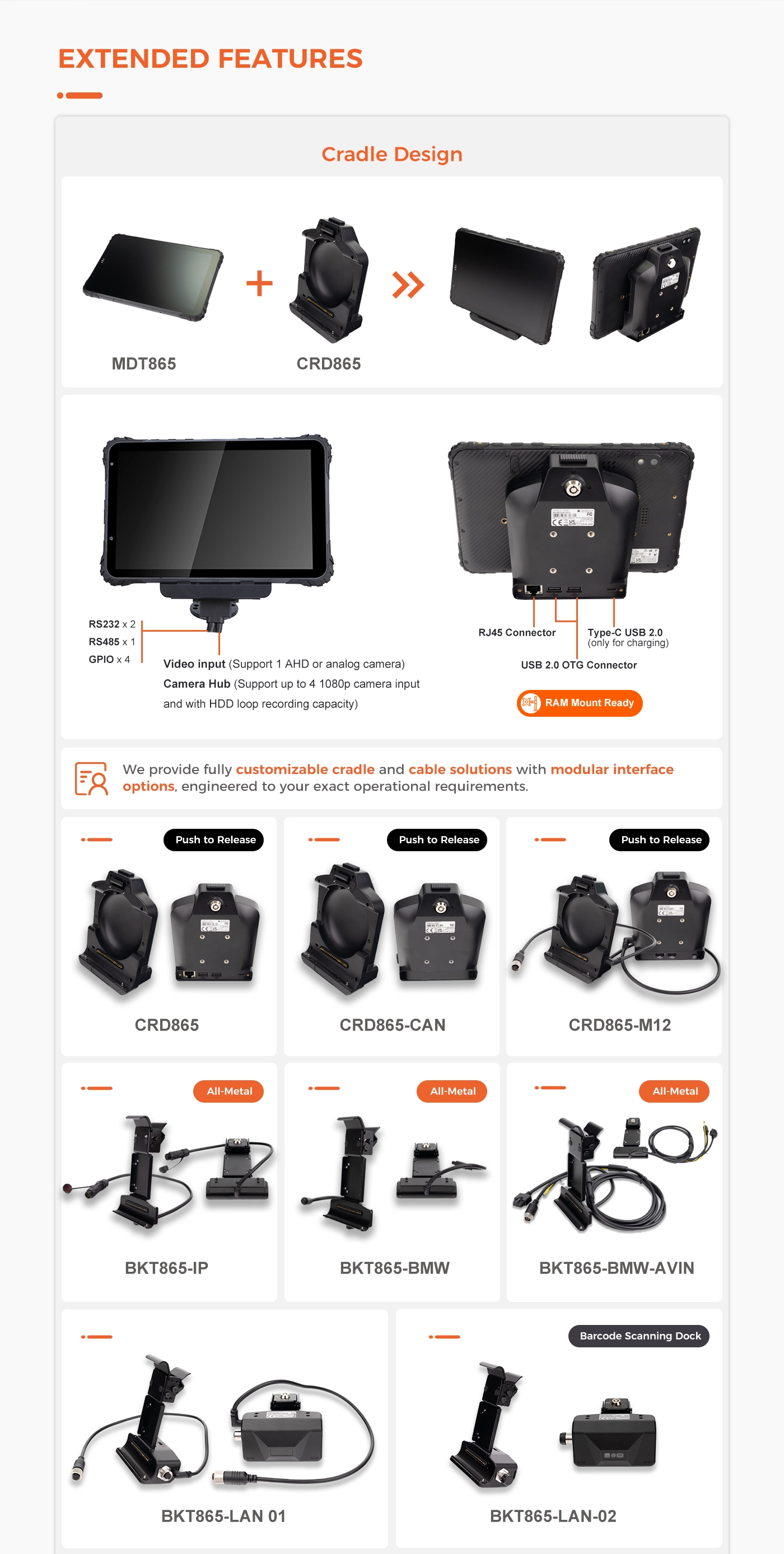

Docking Stations for MDT865

Select the dock tier that matches your deployment environment. All docks mount via RAM mount, enabling hand-latch tablet swap without tools.

STANDARD

Quick-Release Dock

One-hand dock/undock in 1 second. Pogo-pin contacts, 10,000+ cycles. Ideal for urban logistics, light trucks, and field service.

→ View all quick-release cradle variants in the table below

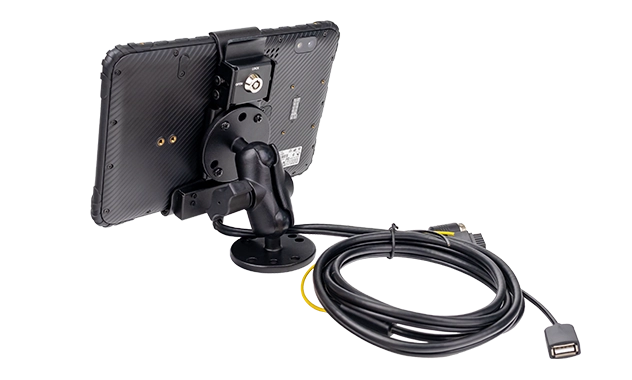

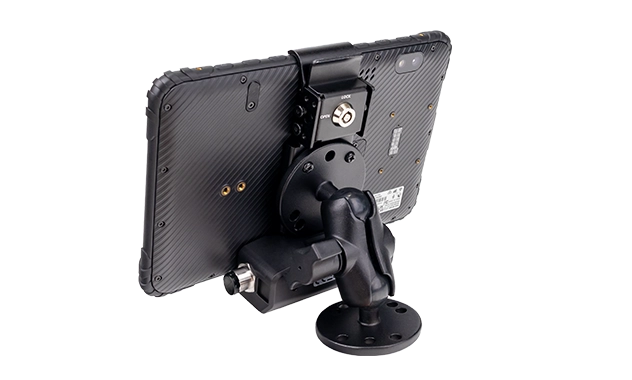

BKT865 all-metal hand-latch dock with IP67 waterproof connector option

HEAVY-DUTY

Fixed Heavy-Duty Metal Dock

IP67 Option

Multi-perspective BKT865 all-metal hand-latch dock with IP67 waterproof connector option

Rugged permanent mounting | Optional IP67 waterproof connector | Built for mining, agriculture & heavy equipment.

→ View all hand-latch cradle variants in the table below

BKT865 all-metal dock with integrated 1D/2D barcode scanner for forklift and warehouse

AUTO-SCAN

1D/2D Barcode Scanner Dock

Wall Mount Option

Multi-perspective BKT865 all-metal dock with integrated 1D/2D barcode scanner for forklift and warehouse

All-metal extended dock with built-in barcode imager. Hand-screw latch. Ideal for forklift inventory, waste management, and yard logistics.

→ View all barcode scanner cradle variants in the table below

Need help selecting a docking station?

The three tiers above cover the main use cases. For a side-by-side comparison across all three tablet platforms — MDT880, MDT865, and MDT1065 — see the docking station matrix. For custom interface combinations or project-specific configurations, contact our engineering team.

TECHNICAL APPLICATIONS

Rugged Tablet Technical Solutions

Explore how our tablets solve specific industrial and fleet challenges

CAN Bus Telematics J1939 / Fleet Data Hardware-level CAN Bus for engine diagnostics, fuel monitoring, and predictive maintenance.	4-Channel AHD Video ADAS / DMS / Surveillance Multi-camera vehicle safety with 4x AHD inputs, trigger support, and real-time video upload.	RS232 / Serial I/O Legacy Integration Dual RS232, RS485, and GPIO for industrial automation, diagnostic tools, and legacy equipment.
M12 / Ethernet IP67 Network Threaded M12 Ethernet connector for buses, trains, industrial HMI, and fixed-mount applications.	Barcode / RFID / NFC Asset Tracking 1D/2D barcode, RFID (UHF/HF/LF), and NFC for warehouse, school bus, and access control.	Basic Vehicle Power 9-36V / Ignition Sense Simple, reliable vehicle power for information displays, driver terminals, and passenger systems.

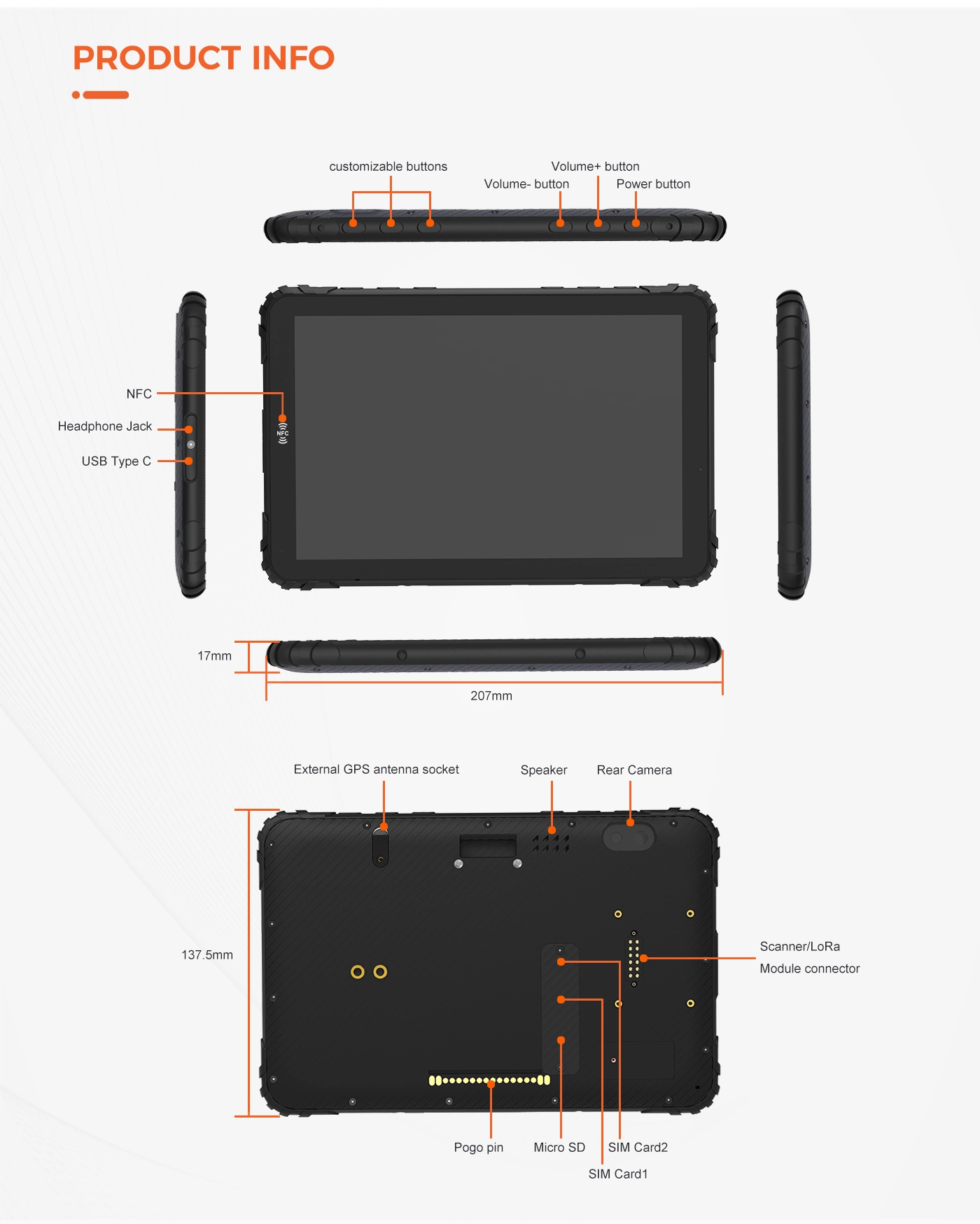

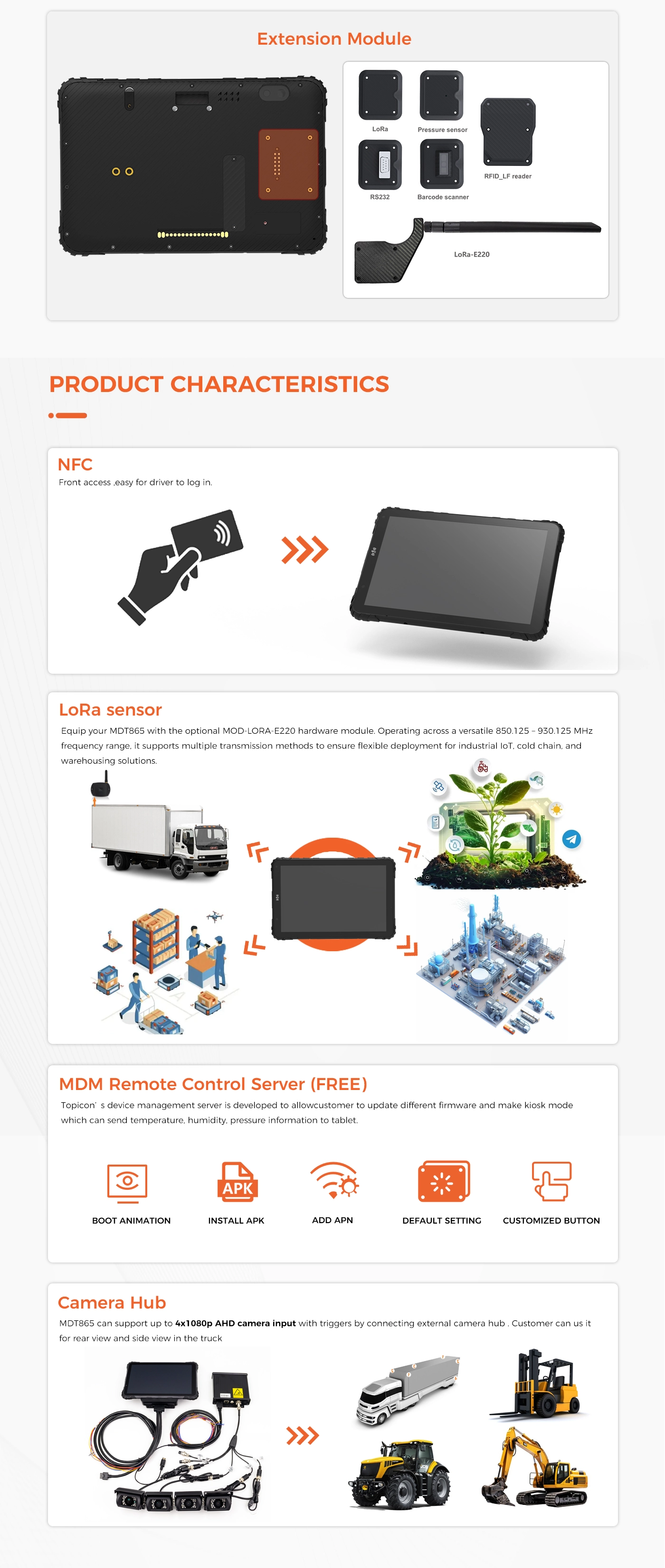

I/O PORTS

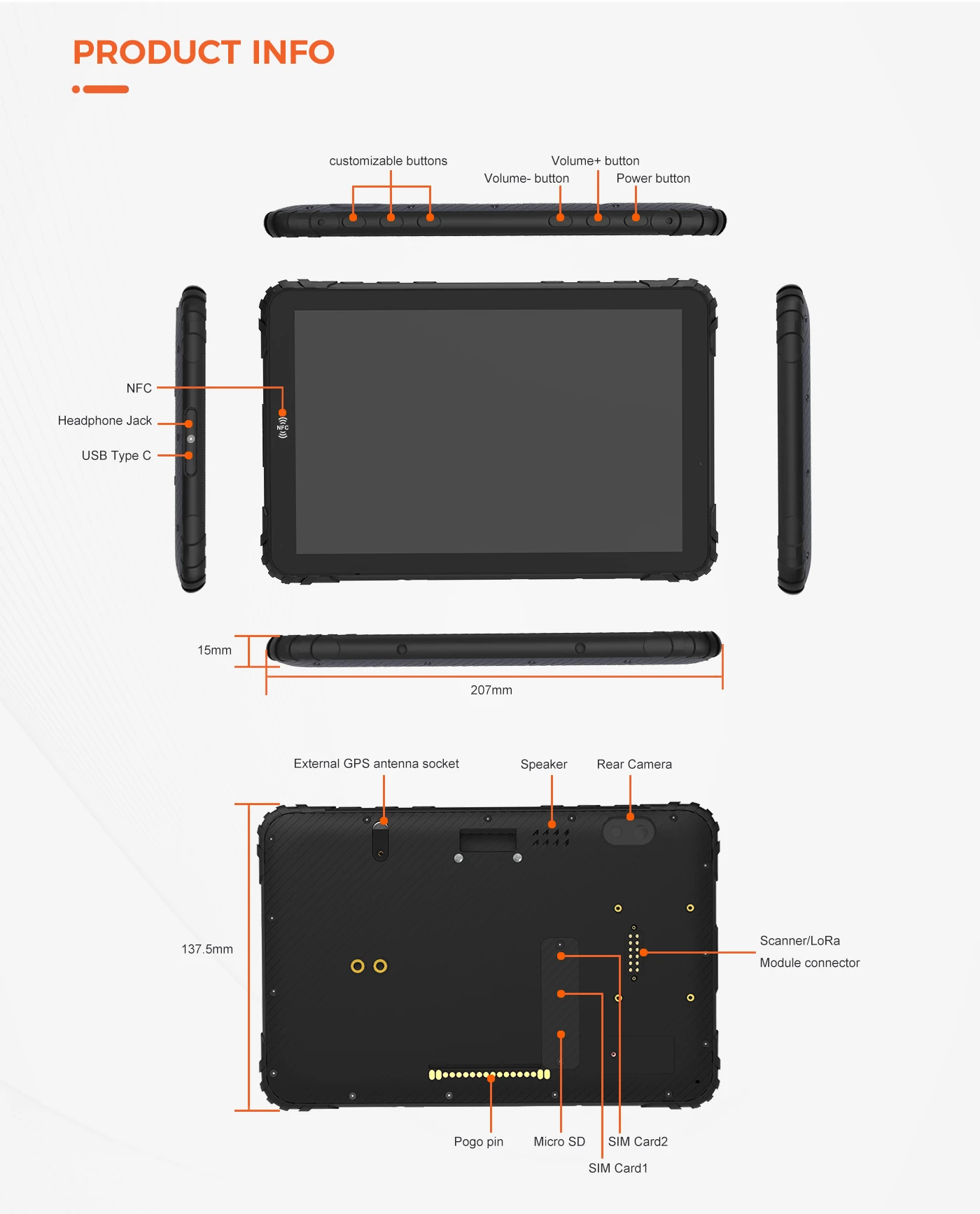

Industrial I/O Ports & Expansion Interfaces

Comprehensive connectivity for industrial and fleet peripherals

MDT865 I/O ports

FLEET APPLICATIONS

In-Vehicle Applications for Fleet Management

Real-world deployment scenarios across industries

MDT865 fleet management

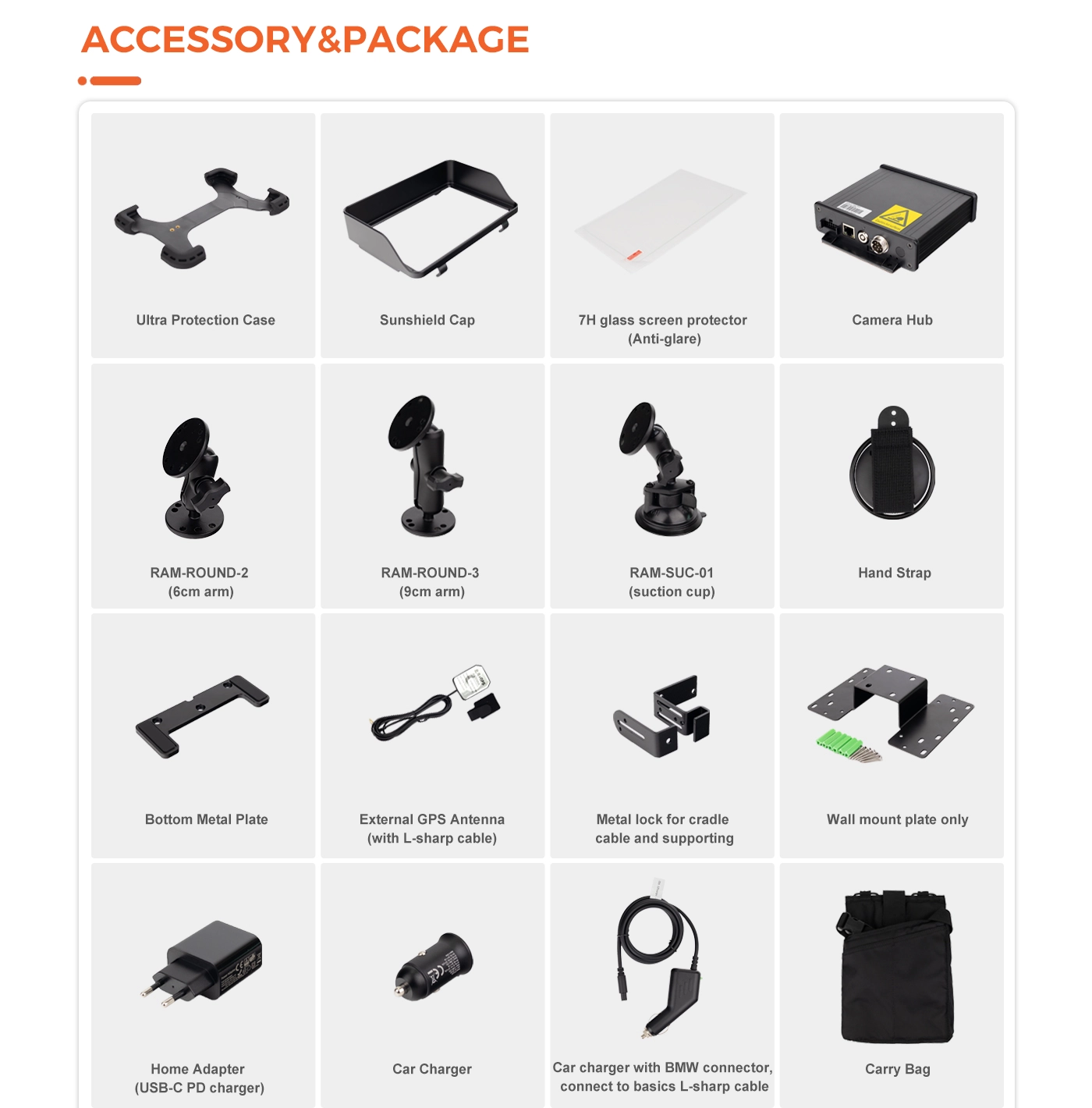

ACCESSORIES

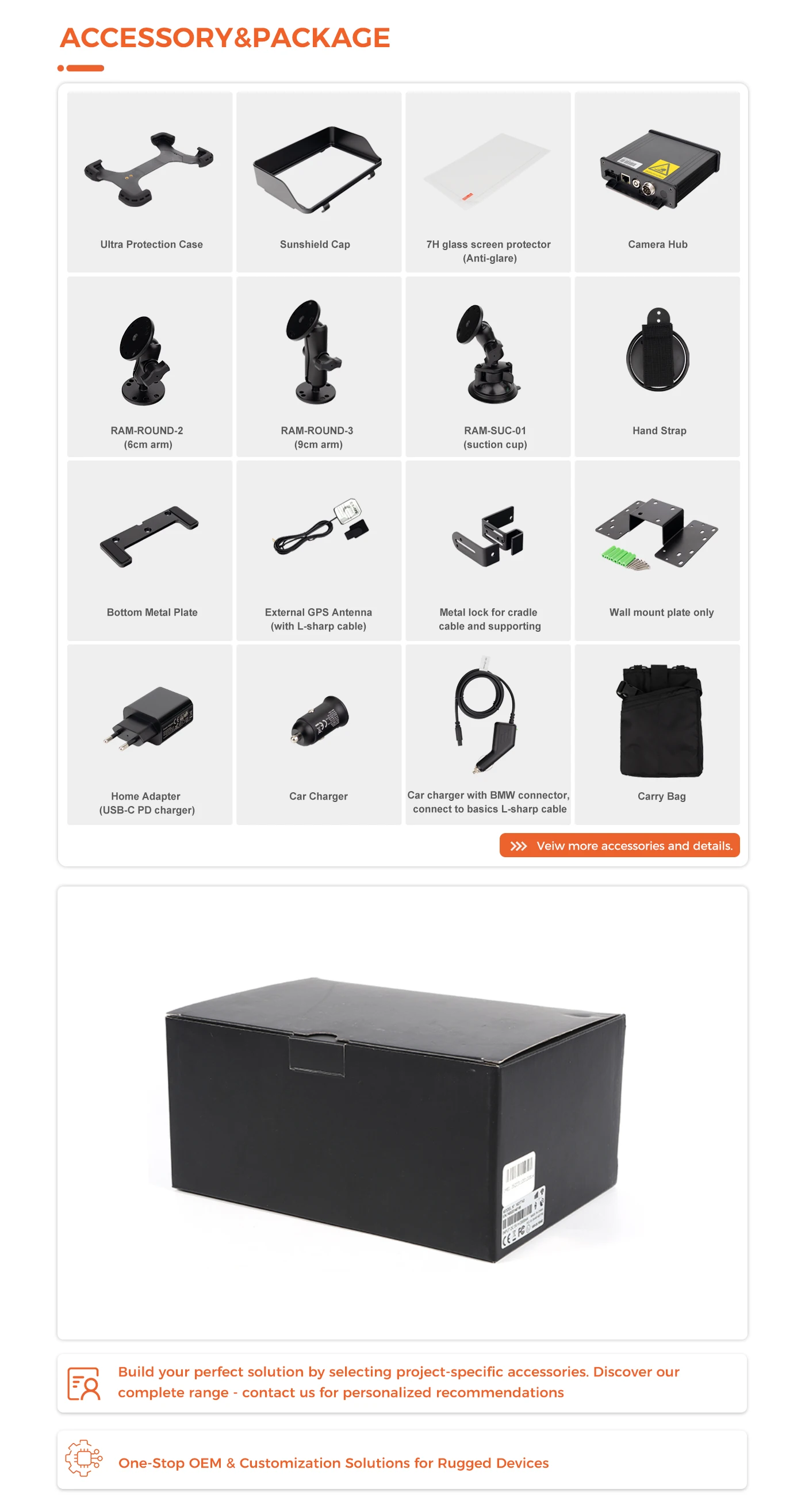

Accessories & Optional Modules

Expand functionality with certified add-ons and peripherals

MDT865 accessories

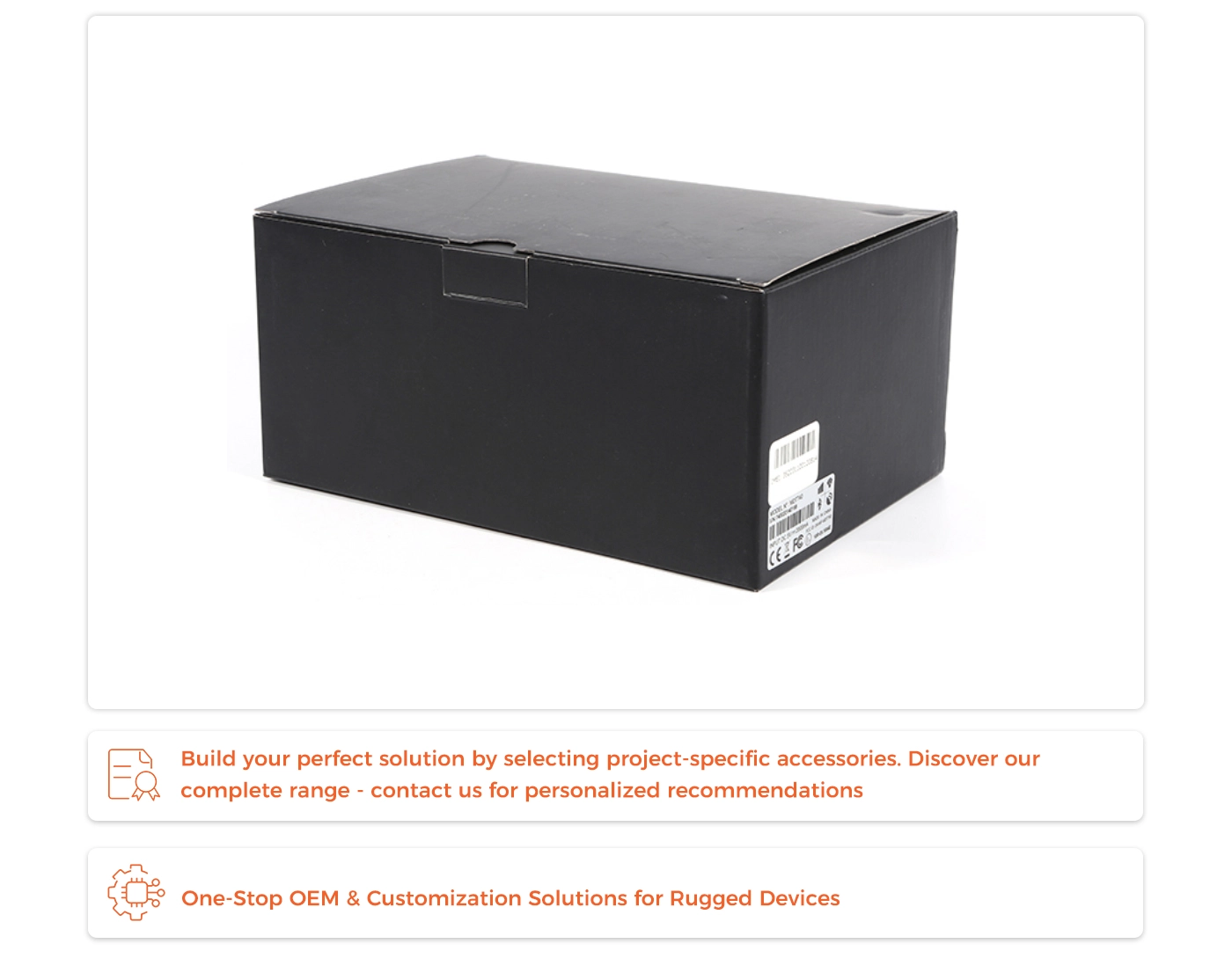

PACKAGING

Packaging & Delivery

Secure packaging for global shipping and deployment

MDT865 packaging

MDT865

Frequently Asked Questions (FAQ)

Is MDT865 a mobile data terminal or a rugged tablet?

MDT865 is a rugged Android tablet specifically designed for use as a mobile data terminal in fleet and vehicle-mounted deployments. It supports vehicle mounting, industrial interfaces, and long-term operation in demanding mobile environments.

Can MDT865 be used as a truck mobile data terminal?

Yes. MDT865 is widely deployed as a truck tablet for mobile data terminal applications — fleet management, route optimization, driver task management, and real-time data communication in commercial trucks and logistics vehicles.

Can MDT865 be used in school buses or public transit fleets?

Yes. MDT865 is widely deployed in school buses and public transit for GPS tracking, driver communication, and student safety monitoring. For fleets requiring dedicated passenger information systems and RFID student check-in, TOPICON also offers a specialized bus tablet solution →

Is MDT865 suitable for 24/7 vehicle operation?

MDT865 is designed for continuous in-vehicle use. With a dedicated vehicle cradle, stable power input, and external GPS antenna support, it can operate reliably in demanding fleet environments. The navigation tablet hardware architecture — GNSS receiver selection, display readability, and dock engineering — determines whether continuous navigation operation is sustainable across the deployment lifecycle. For a fixed-mount alternative, explore our vehicle mount computer solutions.

What industries commonly use MDT865 rugged tablets?

MDT865 is commonly deployed in firefighting fleets, trucking and logistics, forestry equipment, school buses, forklift operations, warehouses, and other industrial and public safety applications. It serves as a reliable fleet management tablet across these diverse sectors.

Does MDT865 support cameras, GPS, and external modules?

Yes. MDT865 supports analog and AHD video input, external GPS antennas, and optional modules such as barcode readers and 433MHz receivers, enabling flexible configuration for industrial applications. For multi-camera vehicle safety, explore our 4-channel AHD video tablet solutions.

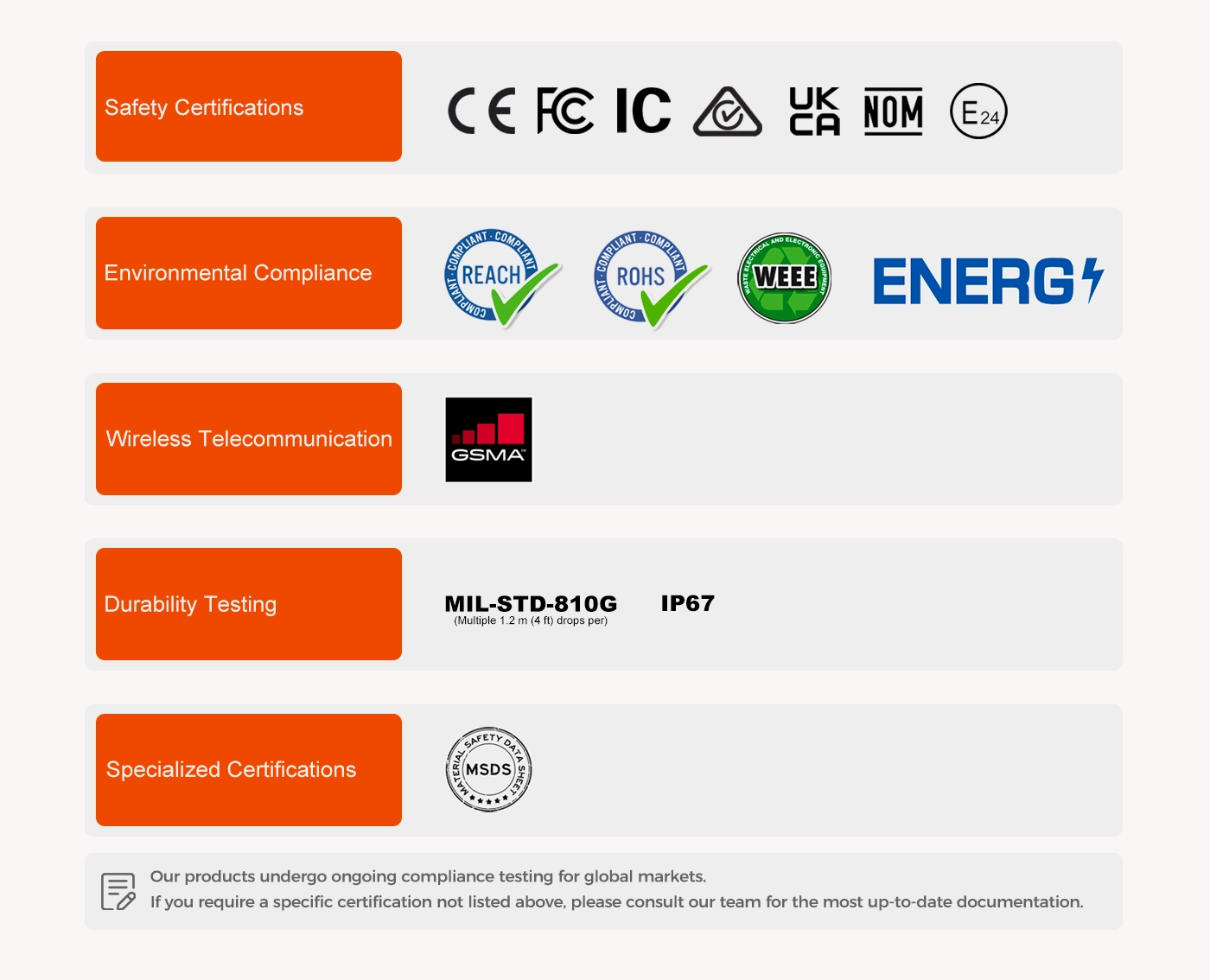

What level of protection does MDT865 offer?

MDT865 features IP67 dustproof and waterproof protection (IP67 waterproof tablet), making it suitable for harsh environments involving rain, dust, vibration, and outdoor industrial use.

Can MDT865 be remotely managed?

Yes. MDT865 is managed through the TOPICON MDM platform — remote firmware updates, device management, batch configuration, and system customization across large fleets. The MDM server is hosted on TOPICON's infrastructure, accessed through a standard web browser with no on-premises installation required.

Is MDT865 available for OEM or customization projects?

MDT865 supports OEM and customization options, including hardware interfaces, mounting solutions, and software configurations to meet specific fleet and industrial requirements. Start your OEM customization →

Is MDT865 compatible with TOPICON vehicle mount terminal platforms?

Yes. MDT865 is compatible with TOPICON's vehicle mount computer and terminal docking ecosystem, supporting both fixed installation and quick-release docked deployment for fleet and industrial applications.

Explore our complete In-Vehicle Tablet solutions →

Hardware

CPU: MTK platform 2.0GHz Octa-Core Processor

GPS: High sensitivity receiver (GPS, GLONASS, GALILEO), supports external GPS antenna via MMCX connector

Display: 8 inch, IPS panel (1280 x 800 pixel), 1000 nits high brightness, anti-glare capacitive multi-touch panel (Supports Glove & Wet modes), LED Backlight

Bluetooth: V5.0

WLAN: Wi-Fi IEEE 802.11 a/b/g/n/ac (Dual-Band 2.4GHz/5GHz), 802.11 d/e/h/i/j/k/r/v/w, 5GHz up to 500 Mbps, 2.4GHz up to 144Mbps

Camera (back camera): 20MP autofocus camera with flashlight

Camera (front camera): N/A

Video input: Support one channel AHD 720P, 1080P and analog camera (w/ Cradle)

Support four channels AHD 720P, 1080P and analog camera with HDD loop recording (w/ Camera Hub)

RFID: Yes, optional (Supports front access NFC / RFID LF reader modules)

G-sensor: Accelerometer, default

Light sensor: Ambient Light Sensor, default

Motion Sensor: E-Compass, Gyroscope, default

Sensor extensions: Barometric altimeter

Scanner module: Yes, optional (1D & 2D Imagers)

Wireless module: Optional, LoRa module

Antenna: Internal antenna & MMCX external GPS antenna connector

LED indicator: Two-color LED (Audible tone & Charging Status LED)

Operating Temp: -20℃ to 60℃ (-4°F to 140°F)

Storage Temp: -20℃ to 70℃ (-4°F to 158°F)

Humidity: 90% non-condensing

Sealing: IP67 certified

Drop Spec: 1.2m (4 ft.) drops per MIL-STD-810G

Electrostatic Discharge (ESD): +/-8kVdc air discharge, +/-4kVdc direct discharge, +/-4kVdc indirect discharge

Dimensions: 207mm L x 138mm W x 17mm D

Weight: 604g

Software

Operating System: Android 12 or Android 14 with GMS / Non-GMS

MDM Server Functions: Remote control server (Supports Boot Animation, Install APK, Add APN, Default Setting, Customized Button, Kiosk Mode)

Android applications: TBD

Navigation software: TBD

Packaging Detail

1pc main unit and 1pc vehicle docking station (Cradle)

1pc RAM Mount kit

1pc Type-C cable

1pc Car charger

1pc Screw kit

1pc NFC test card

Cellular Module

Radio Frequency:

GSM: 850/900/1800/1900MHz

WCDMA: B1/B2/B4/B5/B8

LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28/B66

LTE TDD: B38/B40/B41

GNSS: GPS, GLONASS, GALILEO

Memory

Storage (ROM): 64GB eMMC

Memory (RAM): 4GB LPDDR4X

Expansion Slot: User accessible MicroSD (TF) card slot, supports up to 512GB

Interface

Type C USB Connector: 1 x USB Type-C 2.0 OTG on the device

Pogo pins: 18-pin docking connector (Supports 2 x RS232, 1 x RS485, 4 x GPIO, 1 x RJ45 Ethernet, 12V/24V input, ignition, OTG)

Cradle Interfaces: 2 x USB Type-A 2.0 OTG, 1 x RJ45 Connector, 1 x Type-C for power supply

SIM card slot: 2 x Nano-SIM

Battery

Capacity: Rechargeable Lithium-ion Battery 3.8V 8000mAh

Docking Stations

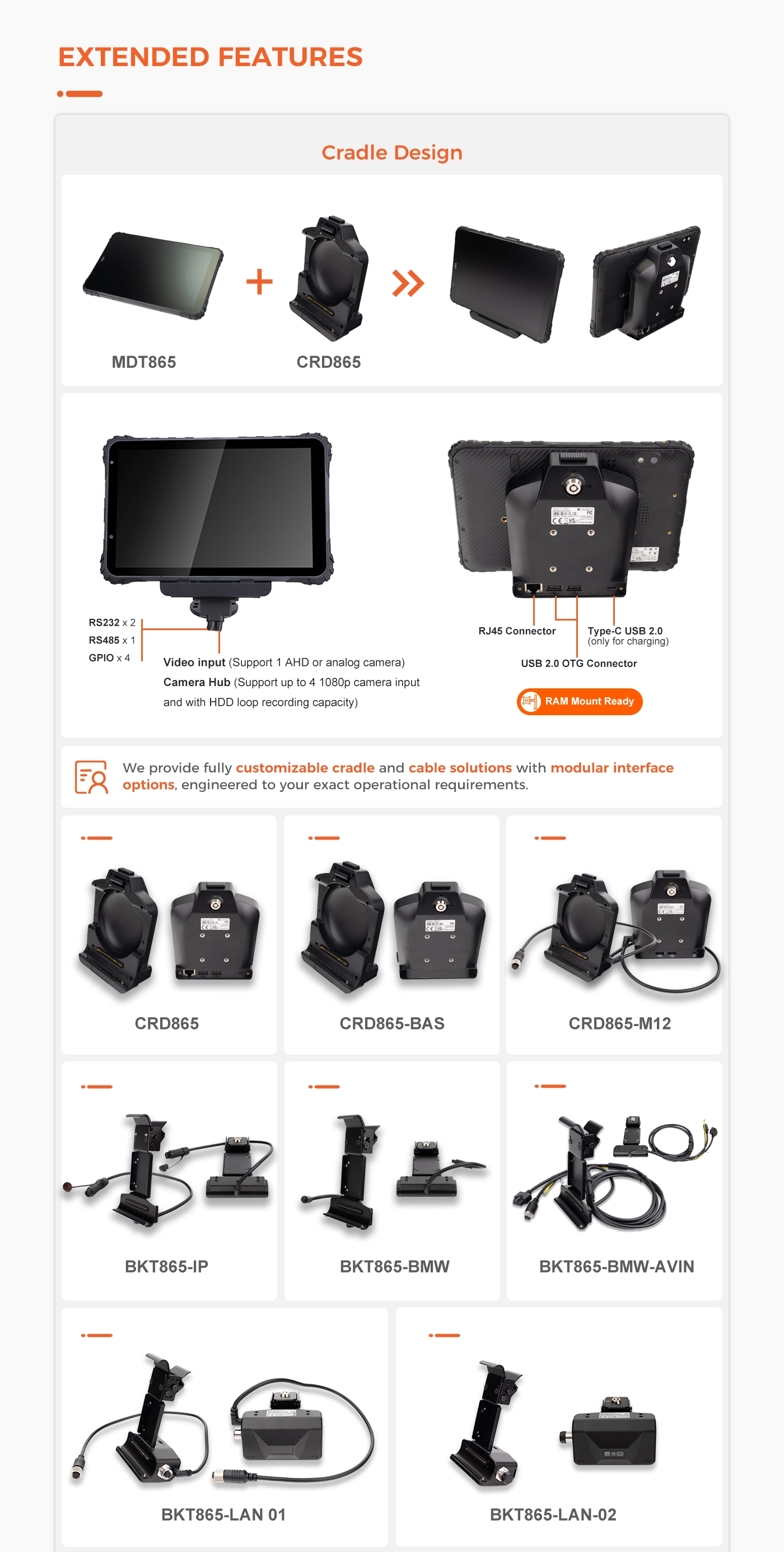

MDT865 Docking Stations

8" 4G Rugged Tablet · 13 cradle configurations across CRD865, CRD865-BAS, and BKT865 series

⚡ Same cradle hardware, different cable kits — select the interface set that matches your deployment.

Cradle Model	Power	CAN Bus	RS232	RS485	GPIO In / Out / ADC	Camera	Ethernet	USB-A OTG	USB-C Charge	Special
CRD865 SERIES · MDT865 EXCLUSIVE
CRD865 (TYPE-A)	DC12–36V	—	2	1	4× 2 / 1 / 1	1× On Cradle	RJ45	2×	1×	—
CRD865 (TYPE-B)	DC12–36V	—	2	1	—	4CH+HUB +1 On Cradle	RJ45	2×	1×	4× Trigger
CRD865 (TYPE-E)	DC12–36V	—	1	—	—	—	RJ45	3×	1×	—
CRD865 (TYPE-F)	DC12–36V	—	1	—	—	4CH+HUB +1 On Cradle	RJ45	2×	1×	4× Trigger
CRD865-CAN	DC12–36V	1×	2	—	4× 2 / 1 / 1	—	RJ45	2×	1×	—
CRD865 M12	DC12–36V	—	1	—	—	—	M12	2×	1×	M12→RJ45 Adapter
CRD865-BAS SERIES · SHARED WITH MDT880
CRD865-BAS (TYPE-C)	DC12–36V	—	1	—	—	1× On Cradle	—	—	—	—
CRD865-BAS (TYPE-D)	Car 12/24V	—	—	—	—	—	—	—	—	Car Charger
BKT865 SERIES · SHARED WITH MDT880 · FIXED METAL MOUNT
BKT865-IP	DC12–36V	—	1	—	—	—	—	—	—	Waterproof Connector
BKT865-BMW	DC12–36V	—	1	—	—	—	—	—	—	—
BKT865-OTG	DC12–36V	—	1	—	—	1× On Cradle MDT865 only	—	1×	—	—
BKT865-LAN-01	DC12–36V	—	1	—	—	1× On Cradle	M12	—	1×	M12→RJ45 Adapter
BKT865-LAN-02	USB-C	—	—	—	—	—	RJ45 (opt.)	—	1×	1D/2D Barcode Scanner

USB ports: All USB-A ports on the cradle provide OTG host functionality. All USB-C ports provide charging only. When the tablet is docked, the tablet's own side USB ports are blocked and cannot be used — all USB connectivity is provided through the cradle cable.
GPIO allocation: In / Out / ADC breakdown per cradle. Example: "4× (2 / 1 / 1)" means 4 total GPIO lines — 2 inputs, 1 output, 1 ADC input.
RS485: Marked with * is provided through the configurable RS232/RS485 USB channel (software-selectable mode).
CAN Bus: CRD865-CAN supports 1× native CAN Bus channel. Any cradle configuration with a USB-A OTG port can add up to 2 CAN Bus channels through the optional EXT-USB-CAN-01 — USB to CAN Bus Adapter Cable, enabling CAN Bus integration on configurations that do not include a native CAN interface.
Shared platforms: CRD865-BAS and BKT865 series are shared with the MDT880 platform. See the MDT880 docking station table for platform-specific interface differences.
BKT865 series: Key-lock retention, designed for fixed permanent installation.
Cable dependency: Interface availability depends on the selected cable kit. The same physical cradle can expose different interfaces through different CAB-xxx cables.
