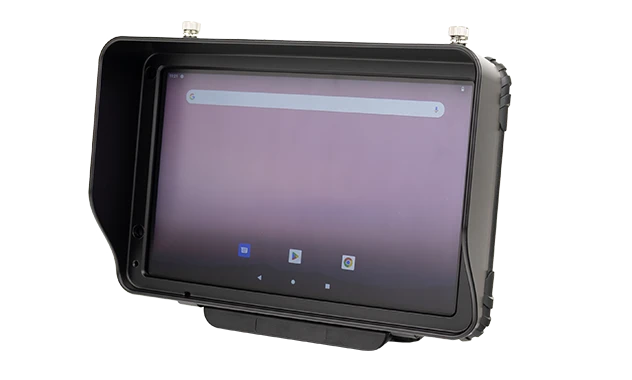

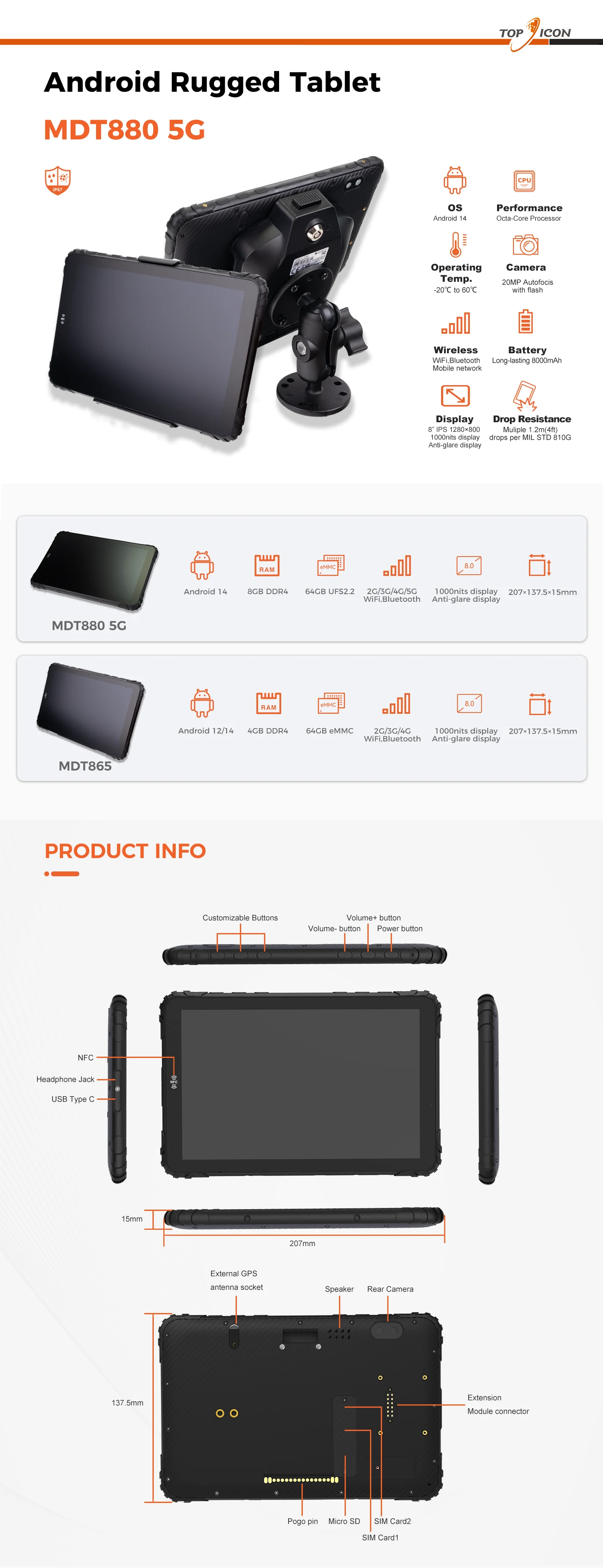

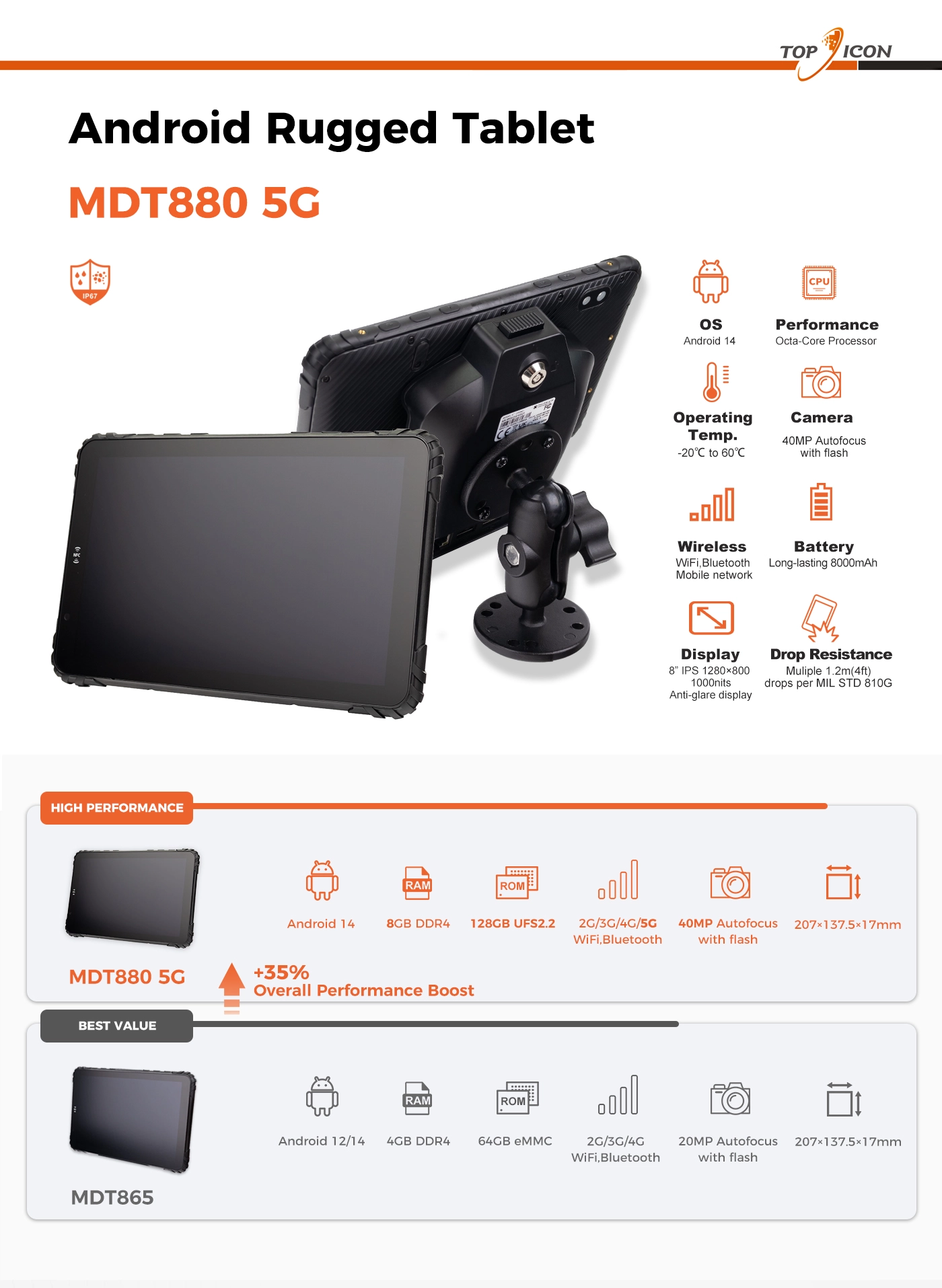

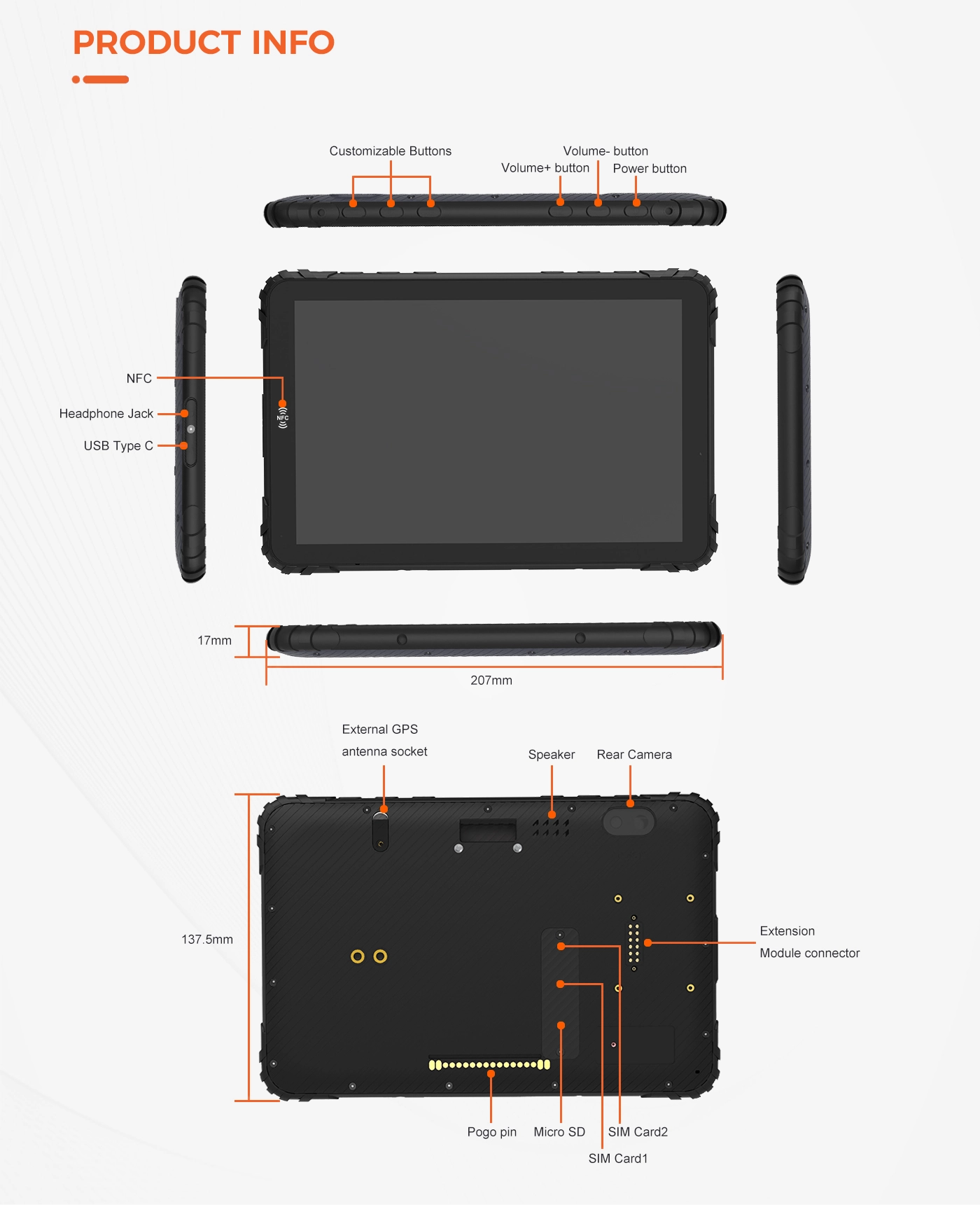

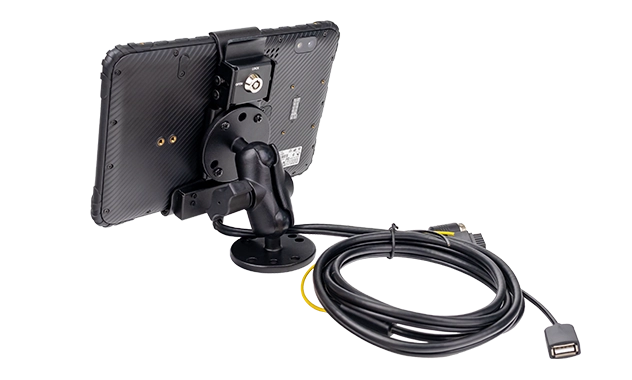

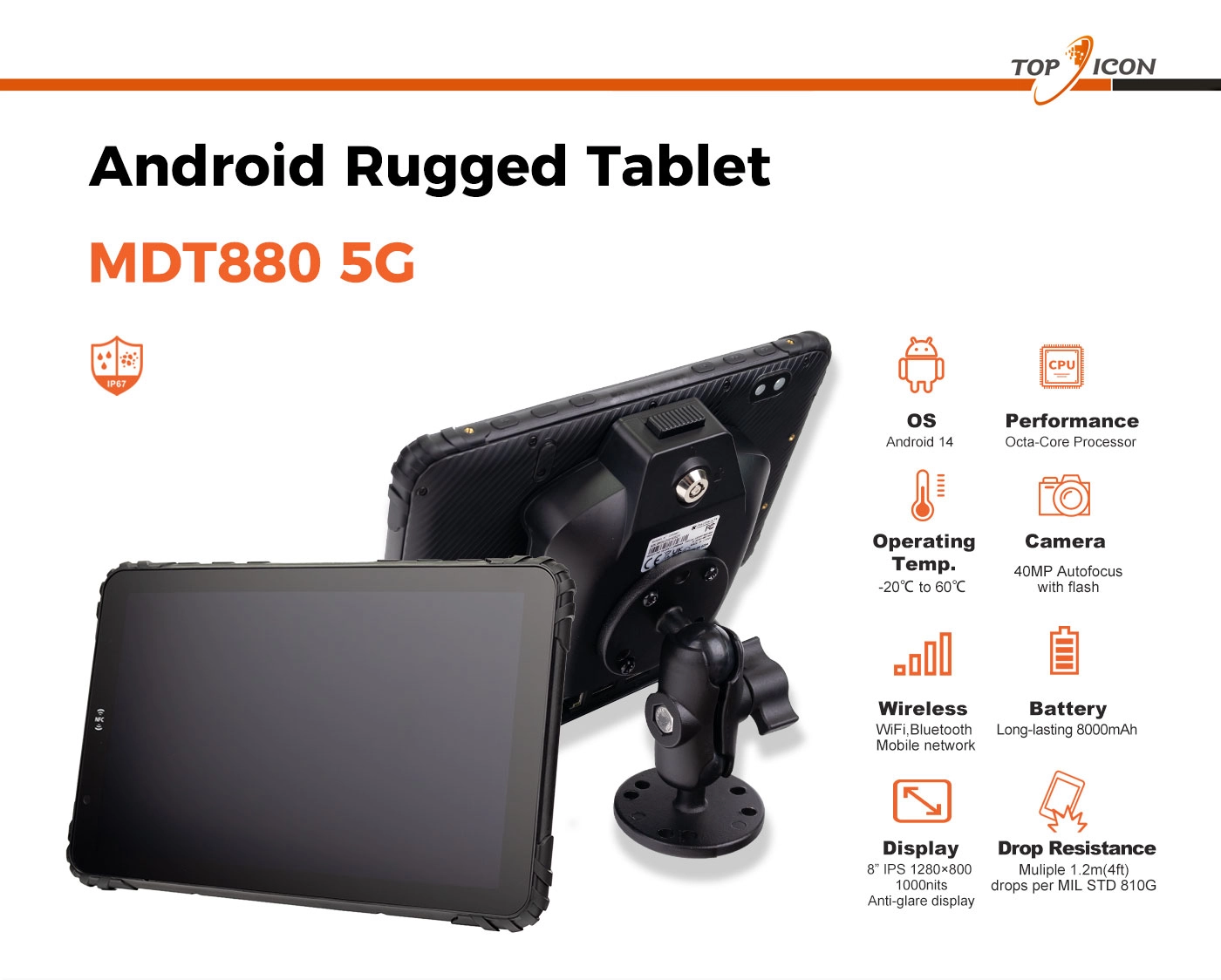

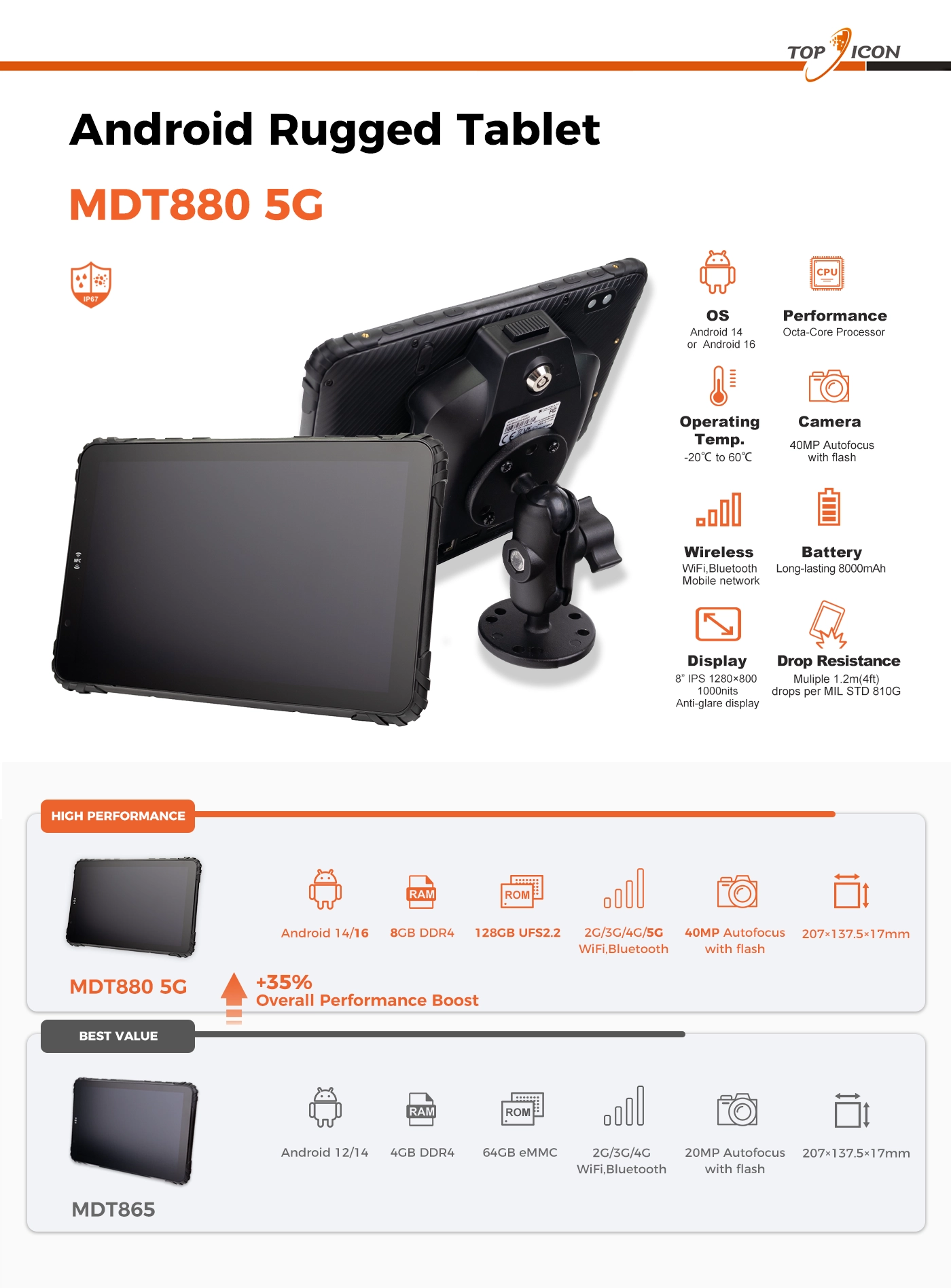

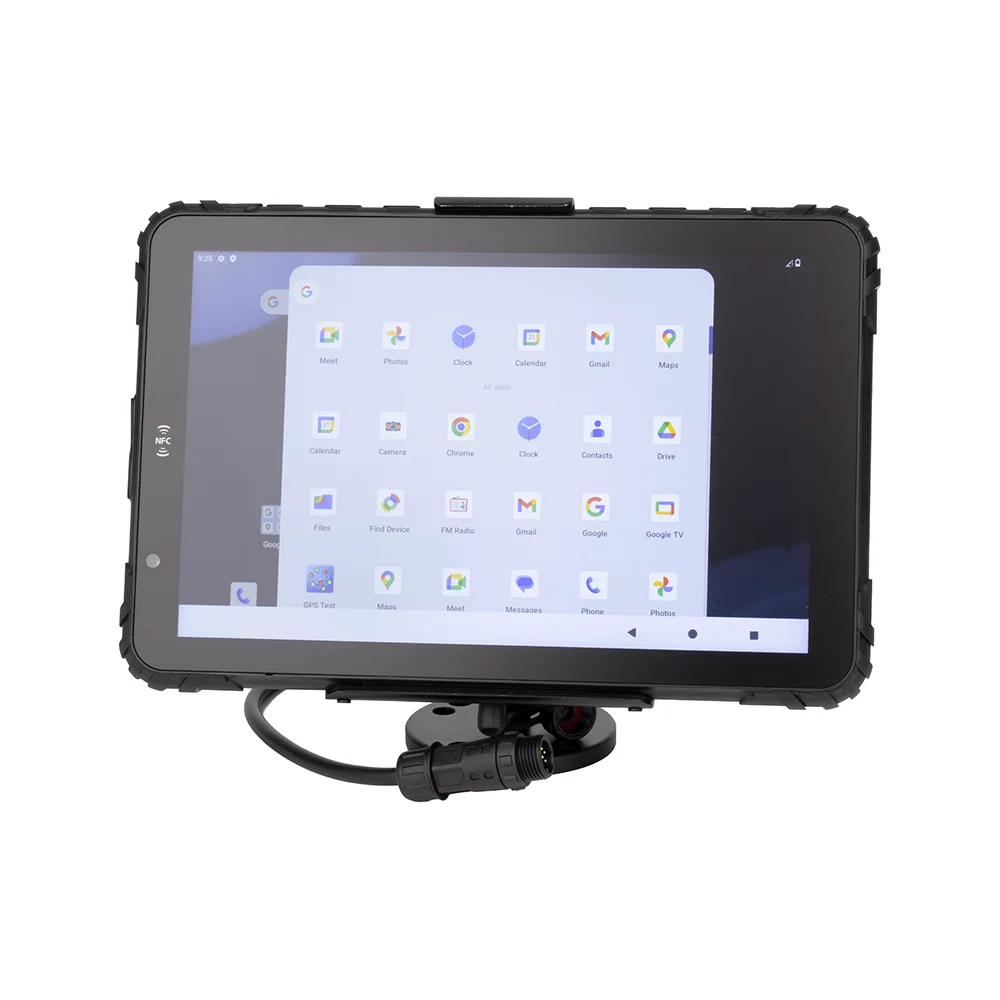

MDT880
8-inch 5G Rugged In-Vehicle Tablet & Vehicle Mount Terminal
- 8" 1000-nit sunlight-readable display
- 9-36V DC VCC input with ignition sensing
- 8000mAh battery
- 5G bands (EU / NA) with global eSIM
- Dual Nano-SIM redundancy
- L1+L5 dual-band GNSS
- External MMCX GPS antenna port
- Native RJ45 Ethernet
- RS485/RS232
- 4-channel AHD video input
- 4× GPIO
- 2× CAN bus
- Android 16 · 8GB RAM / 128GB storage
- 40MP camera
- OEM firmware & MDM ready

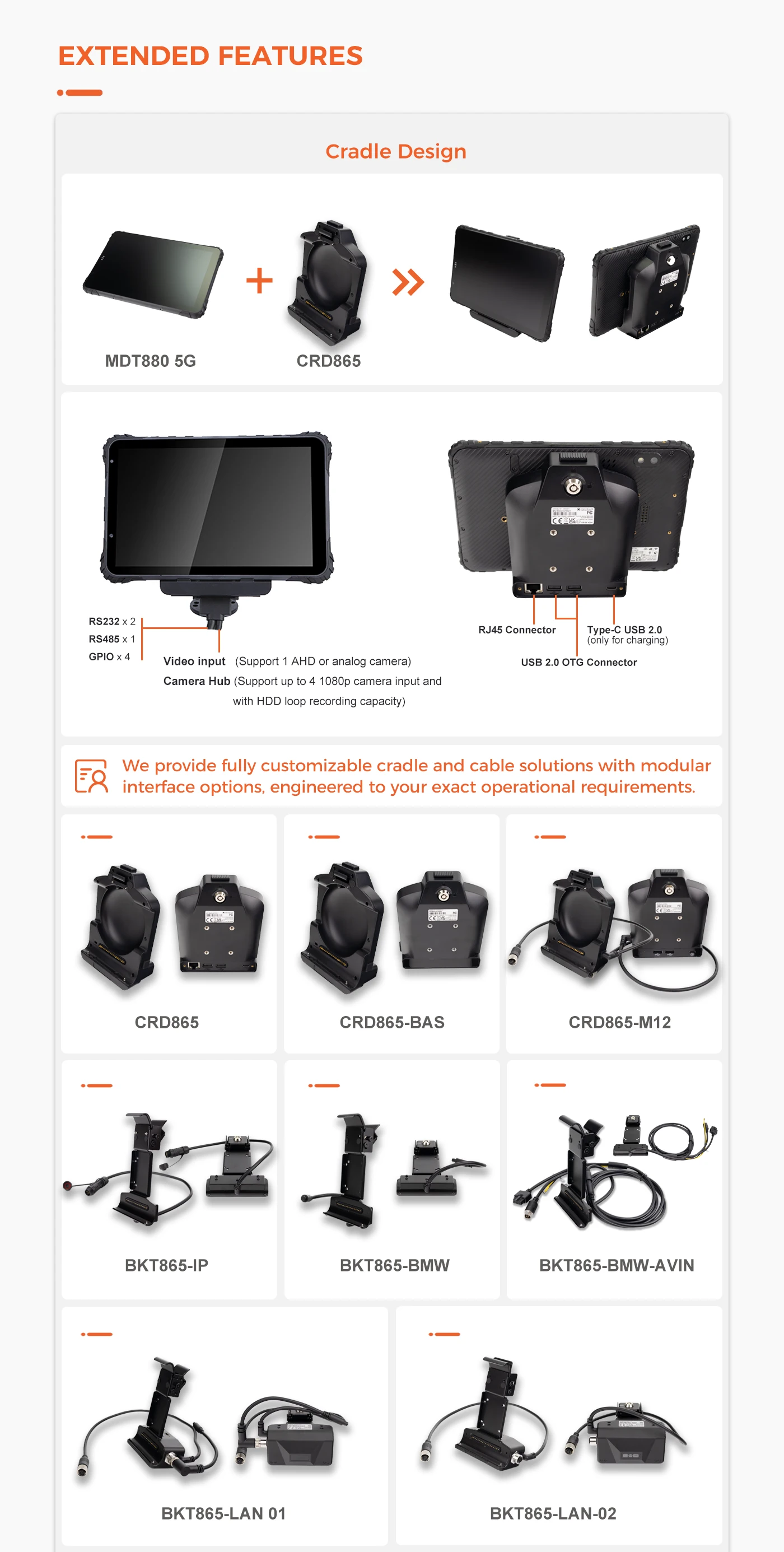

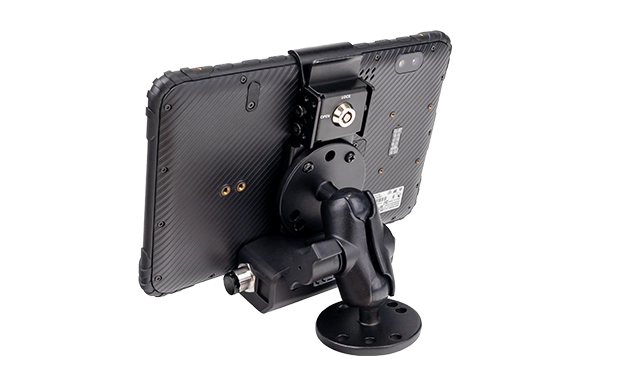

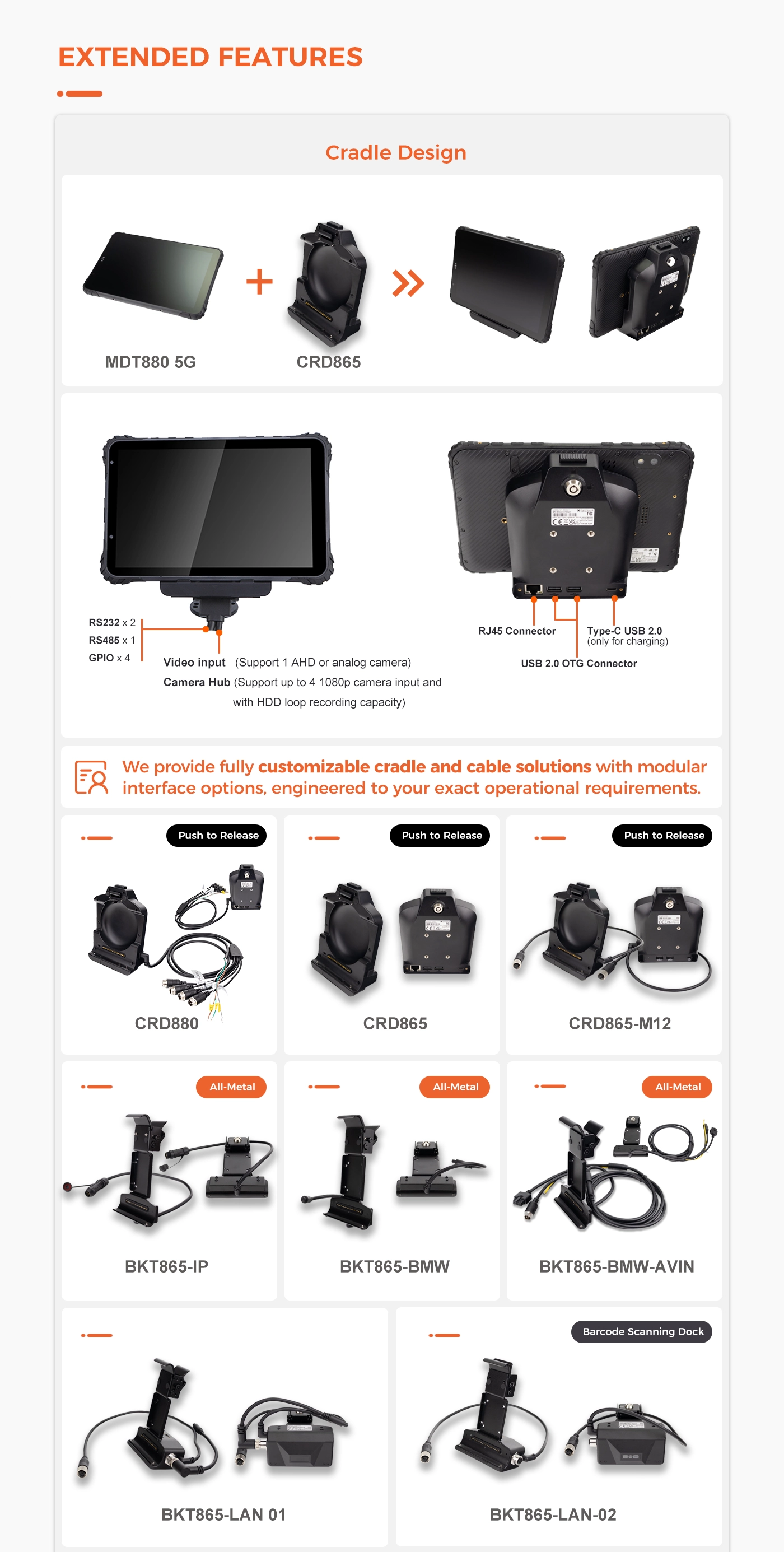

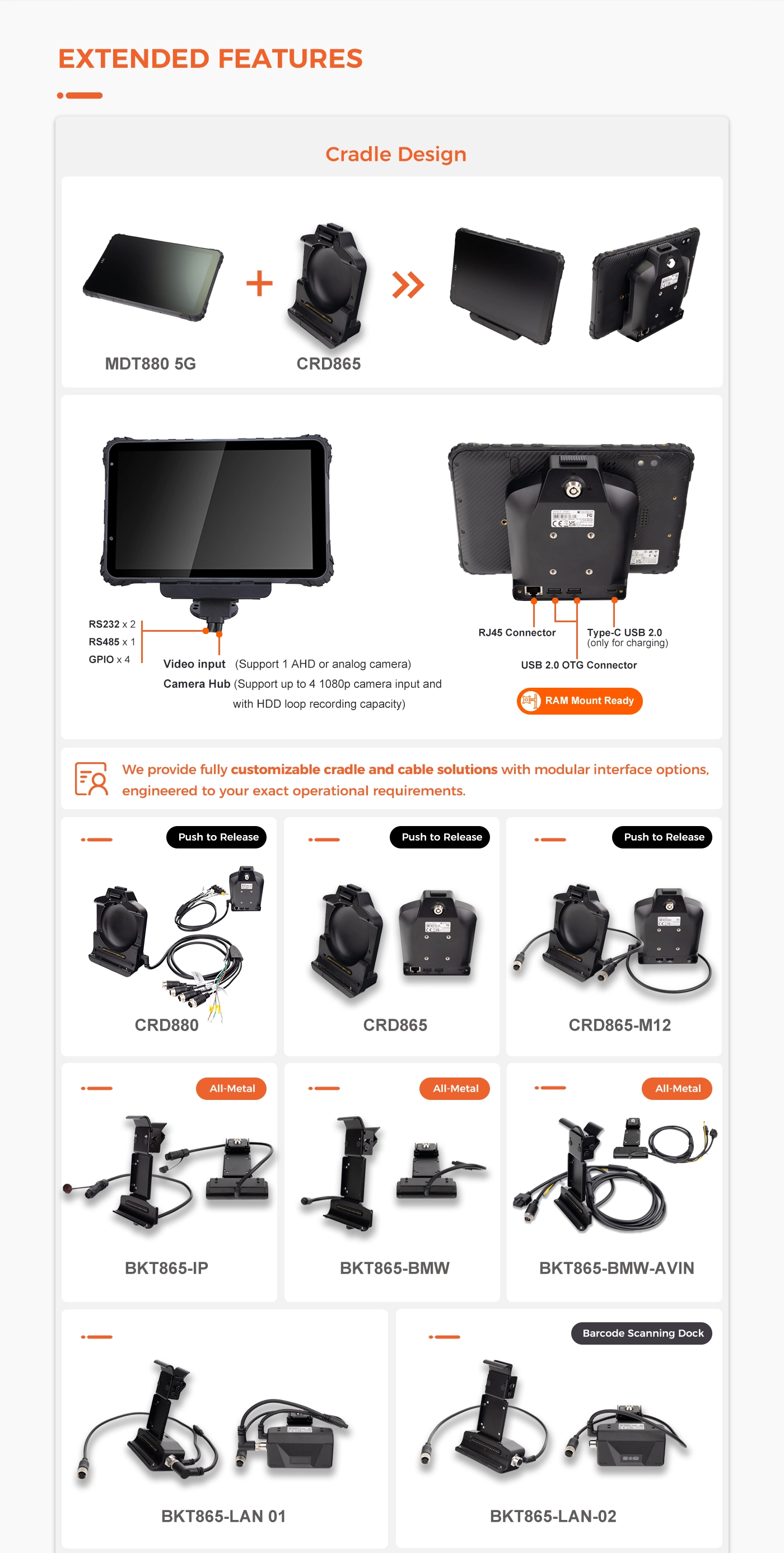

Docking Stations for MDT880
Select the dock tier that matches your deployment environment. All docks mount via RAM mount, enabling hand-latch tablet swap without tools.
Quick-Release Dock
One-hand dock/undock in 1 second. Pogo-pin contacts, 10,000+ cycles. Ideal for urban logistics, light trucks, and field service.
→ View all quick-release cradle variants in the table below
Fixed Heavy-Duty Metal Dock
IP67 Option
Rugged permanent mounting | Optional IP67 waterproof connector | Built for mining, agriculture & heavy equipment.
→ View all Metal cradle variants in the table below
1D/2D Barcode Scanner Dock
Wall Mount Option
All-metal extended dock with built-in barcode imager. Hand-screw latch. Ideal for forklift inventory, waste management, and yard logistics.
→ View all barcode scanner cradle variants in the table belowNeed help selecting a docking station?
The three tiers above cover the main use cases. For a side-by-side comparison across all three tablet platforms — MDT880, MDT865, and MDT1065 — see the docking station matrix. For custom interface combinations or project-specific configurations, contact our engineering team.
Rugged Tablet Technical Solutions
Explore how our tablets solve specific industrial and fleet challenges
Frequently Asked Questions (FAQ)

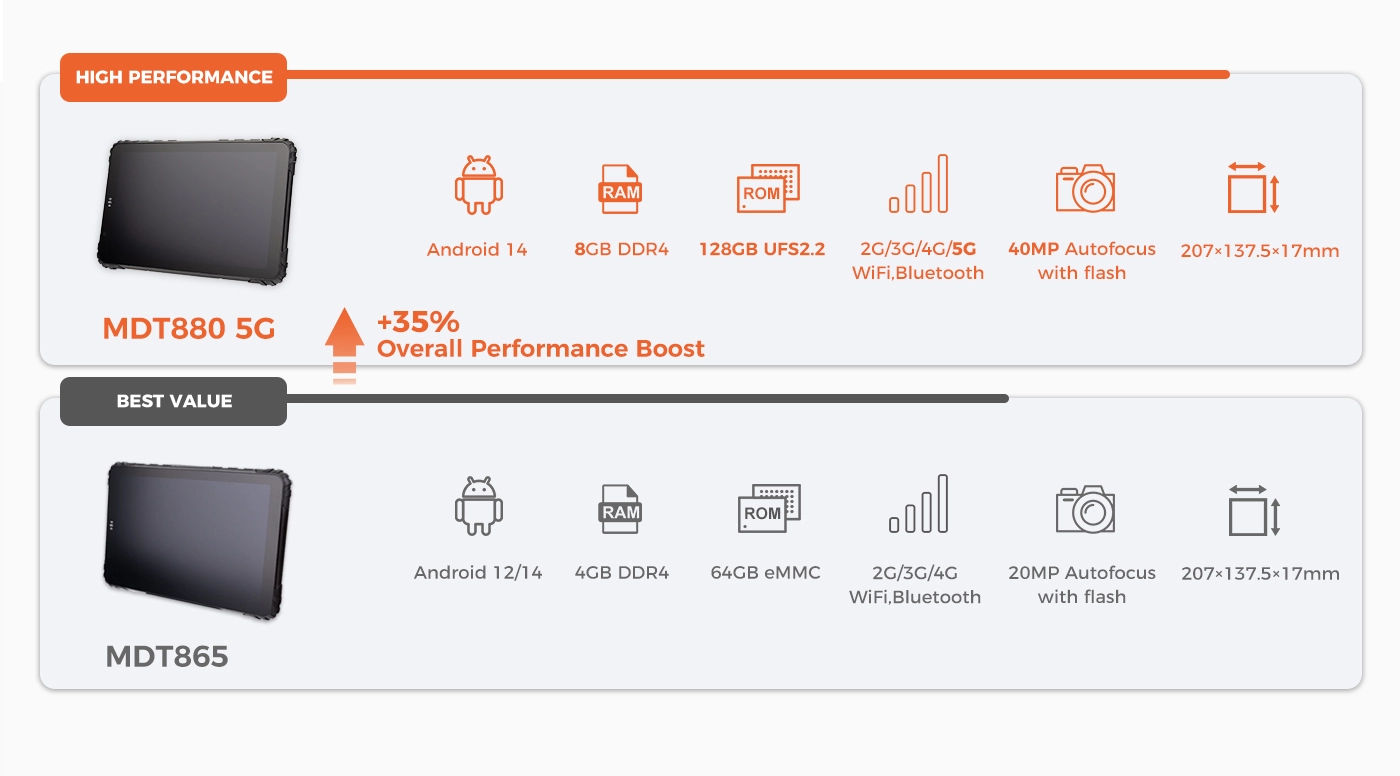

What is the difference between MDT880 and MDT865?
MDT880 offers 5G connectivity and higher processing performance, while MDT865 provides 4G LTE with a focus on cost-effective fleet deployment. Both support vehicle docking, IP67 protection, and the same cradle ecosystem. View MDT865 specs →
Does MDT880 support 5G connectivity?
Yes. MDT880 features 5G NR connectivity, enabling faster data transmission for real-time video streaming, large file uploads, and low-latency telematics applications.
Can MDT880 be used as a mobile data terminal (MDT)?
Yes. MDT880 is designed for mobile data terminal applications, supporting real-time dispatch, GPS tracking, and vehicle data integration across trucks, buses, and emergency vehicles. The navigation tablet hardware architecture — GNSS receiver, display readability, and dock engineering — determines long-term reliability in these deployments.
What industries commonly use MDT880 rugged tablets?
MDT880 is deployed in long-haul trucking, public transit, school buses, warehouse logistics, construction equipment, and field service operations, functioning as reliable vehicle mount computers across diverse fleets.
Can MDT880 be used in school buses or public transit?
Yes. MDT880 is widely used for real-time GPS tracking, student safety monitoring, and driver communication. For dedicated transit applications, TOPICON also offers a specialized bus tablet solution →
What vehicle power input does MDT880 support?
MDT880 supports 9-36V DC wide voltage input with ignition sensing, compatible with both 12V and 24V vehicle electrical systems (trucks, buses, forklifts, construction equipment).
What is the screen brightness of MDT880?
MDT880 features a 1000-nit sunlight-readable display with optical bonding, ensuring clear visibility in direct sunlight and night conditions.
Is MDT880 available for OEM or customization projects?
Yes. MDT880 supports OEM customization including hardware interfaces (RS232/CAN/GPIO), software configuration, private branding, and vehicle docking solutions. Contact OEM team →
Is MDT880 compatible with TOPICON vehicle mount terminals?
Yes. MDT880 integrates with TOPICON's vehicle mount computers, supporting fixed and docked installation architectures with 9-36V power, CAN Bus, and OEM customization.

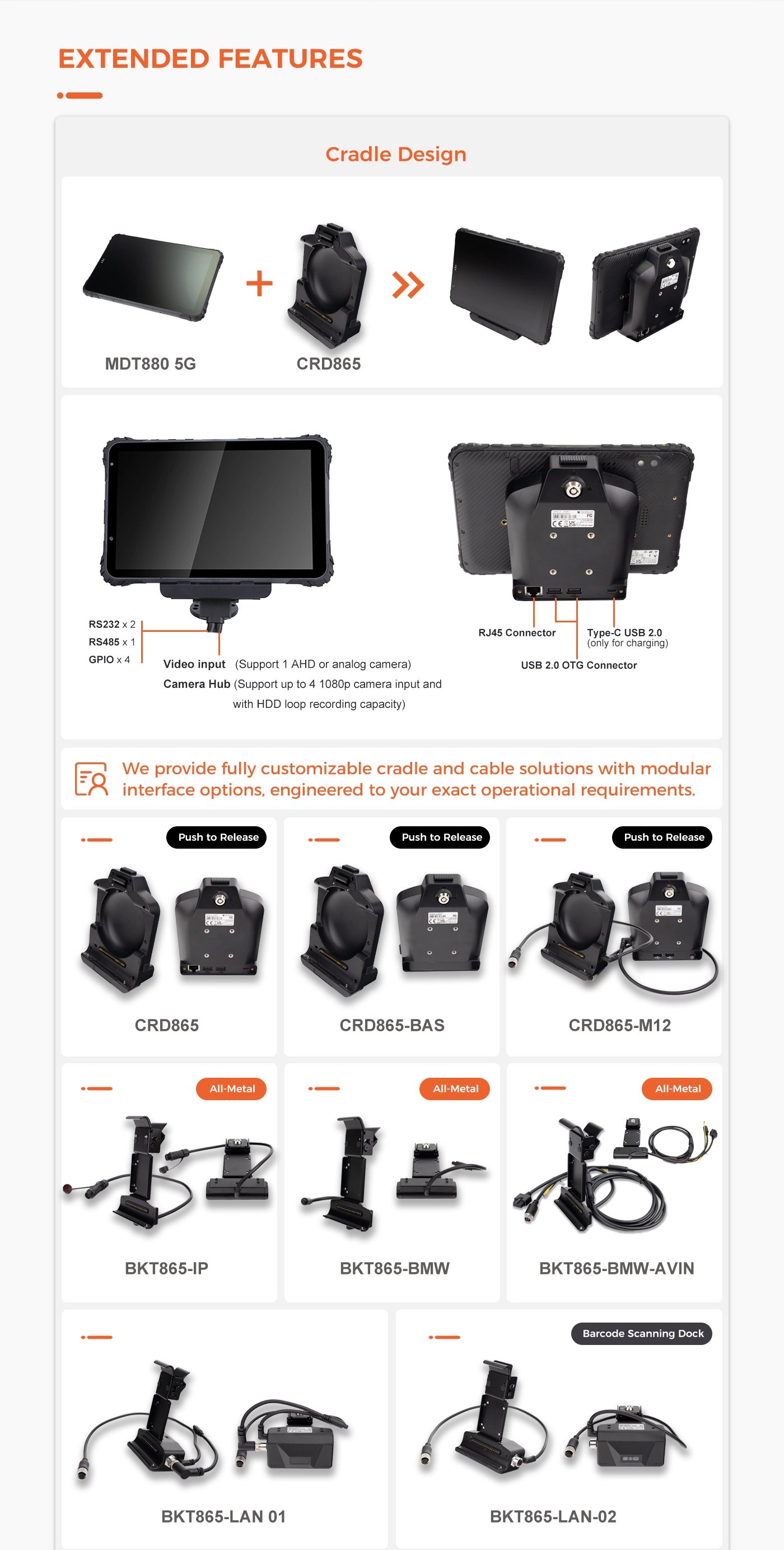

MDT880 Docking Stations
8" 5G Fleet Tablet · 17 cradle configurations across CRD880, CRD865-BAS, and BKT865 series
⚡ Same cradle hardware, different cable kits — select the interface set that matches your deployment.
Tip: Click multiple buttons to combine filters. Example: CAN Bus + Video Input shows docks that support both.
| Cradle Model | Power | CAN Bus | RS232 | RS485 | GPIO In / Out / ADC |
Camera | Ethernet | USB-A OTG |
USB-C Charge |
Special |
|---|---|---|---|---|---|---|---|---|---|---|
| CRD880 SERIES · MDT880 EXCLUSIVE | ||||||||||
| CRD880 (TYPE-A) | DC12–32V | — | 1 + 1 | 1* | 4× 2 / 1 / 1 |
— | RJ45 | 2× | 1× | — |
| CRD880 (TYPE-B) | DC12–32V | — | 1 | — | — | — | RJ45 | 2× | 1× | — |
| CRD880-CAN | DC12–32V | 2× | 1 + 1 | 1* | 5× 3 / 1 / 1 |
— | RJ45 | 2× | 1× | — |
| CRD880-CAM V10 | DC12–32V | — | 2 + 1 | 1 | 4× 2 / 1 / 1 |
4CH | RJ45 | 2× | 1× | 4× Trigger |
| CRD880-CAM V20 | DC12–32V | — | 1 + 1 | 1* | 4× 2 / 1 / 1 |
4CH | RJ45 | 2× | 1× | 4× Trigger |
| CRD880-FULL | DC12–32V | 2× | 1 + 1 | 1* | 5× 3 / 1 / 1 |
4CH | RJ45 | 2× | 1× | 4× Trigger |
| CRD880-M12 (TYPE-A) | DC12–32V | — | 1 + 1 | 1* | 4× 2 / 1 / 1 |
— | M12 | 2× | 1× | M12→RJ45 Adapter |
| CRD880-M12 (TYPE-B) | DC12–32V | — | 1 | — | — | — | M12 | 2× | 1× | M12→RJ45 Adapter |
| CRD865-BAS SERIES · SHARED WITH MDT865 | ||||||||||
| CRD865-BAS (TYPE-A) | DC12–36V | — | 1 | — | — | — | — | — | — | — |
| CRD865-BAS (TYPE-B) | Car 12/24V | — | — | — | — | — | — | — | — | Car Charger |
| CRD865-BAS (TYPE-C) | DC12–36V | — | 1 | — | — | — | — | 1× | — | — |
| CRD865-BAS (TYPE-D) | DC12–36V | — | 1 | — | — | 4CH+HUB | — | — | — | 4× Trigger |
| BKT865 SERIES · SHARED WITH MDT865 · FIXED METAL MOUNT | ||||||||||
| BKT865-IP | DC12–32V | — | 1 | — | — | — | — | — | — | Waterproof Connector |
| BKT865-BMW | DC12–32V | — | 1 | — | — | — | — | — | — | — |
| BKT865-OTG | DC12–32V | — | 1 | — | — | — | — | 1× | — | — |
| BKT865-LAN-01 | DC12–32V | — | 1 | — | — | 1× On Cradle | M12 | — | 1× | M12→RJ45 Adapter |
| BKT865-LAN-02 | USB-C | — | — | — | — | — | RJ45 (opt.) | — | 1× | 1D/2D Barcode Scanner |
USB ports: All USB-A ports on the cradle provide OTG host functionality. All USB-C ports provide charging only. When the tablet is docked, the tablet's own side USB ports are blocked and cannot be used — all USB connectivity is provided through the cradle cable.
GPIO allocation: In / Out / ADC breakdown per cradle. Example: "4× (2 / 1 / 1)" means 4 total GPIO lines — 2 inputs, 1 output, 1 ADC input.
RS485: Marked with * is provided through the configurable RS232/RS485 USB channel (software-selectable mode).
CAN Bus: CRD880-CAN and CRD880-FULL support 2× CAN Bus channels natively. Any cradle configuration with a USB-A OTG port can add up to 2 CAN Bus channels through the optional EXT-USB-CAN-01 — USB to CAN Bus Adapter Cable, enabling CAN Bus integration on configurations that do not include a native CAN interface.
Shared platforms: CRD865-BAS and BKT865 series are shared with the MDT865 platform. See the MDT865 docking station table for platform-specific interface differences.
BKT865 series: Key-lock retention, designed for fixed permanent installation.
Cable dependency: Interface availability depends on the selected cable kit. The same physical cradle can expose different interfaces through different CAB-xxx cables.
Don't see a configuration that fits your specific needs? Contact us directly — we are committed to meeting the needs of every customer with tailored docking and hardware solutions.
